Polar Power Marine DC Diesel Generator Model PDC 8340YM 388 9kW to 16kW Marine DC Genset for Hybrid Electric Marine Propulsion Systems and Marine.

Get Lithium.com offers all the Lithionics Battery deep cycle, house power and engine starting lithium-ion batteries for recreational vehicles, sailboats, yachts, buses and campers, Marine, backup or emergency power, solar power generation plus Elco Electric Boat Motors, solar power products, Polar Power DC generators, high power inverter-chargers and alternators and more

High Performance, American Made, Powerful, Polar Power Diesel Generators For Mobile Marine and Micro-Grid Applications For Use With
Lithionics Battery Lithium-Ion Batteries

Polar Power Marine DC Diesel Generator Model PDC 8340YM 388 9kW to 16kW Marine DC Genset for Hybrid Electric Marine Propulsion Systems and Marine

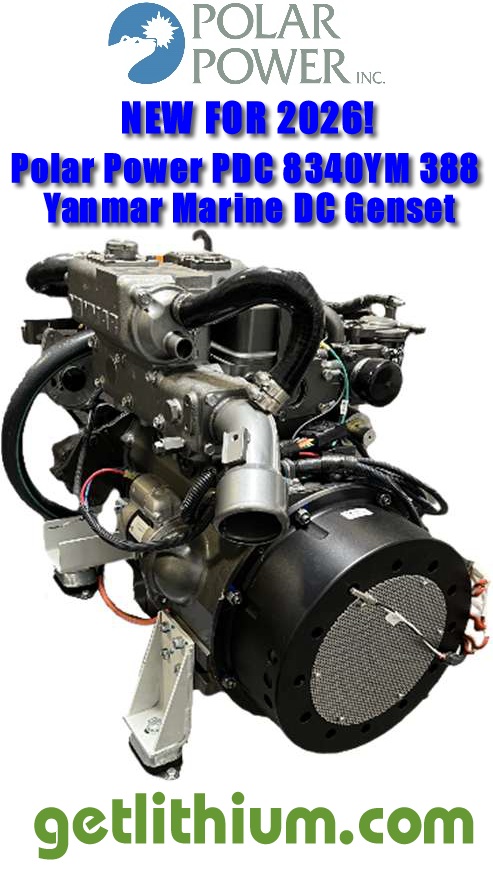

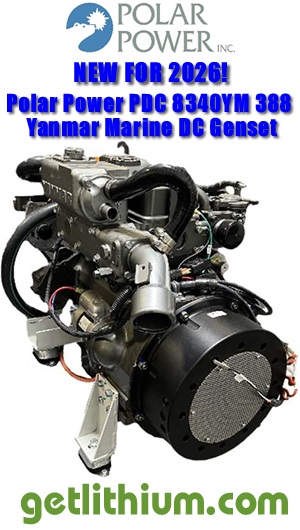

PDC-8340YM-388 Yanmar Marine DC Genset

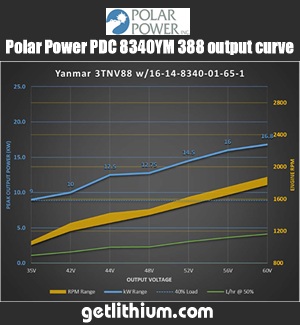

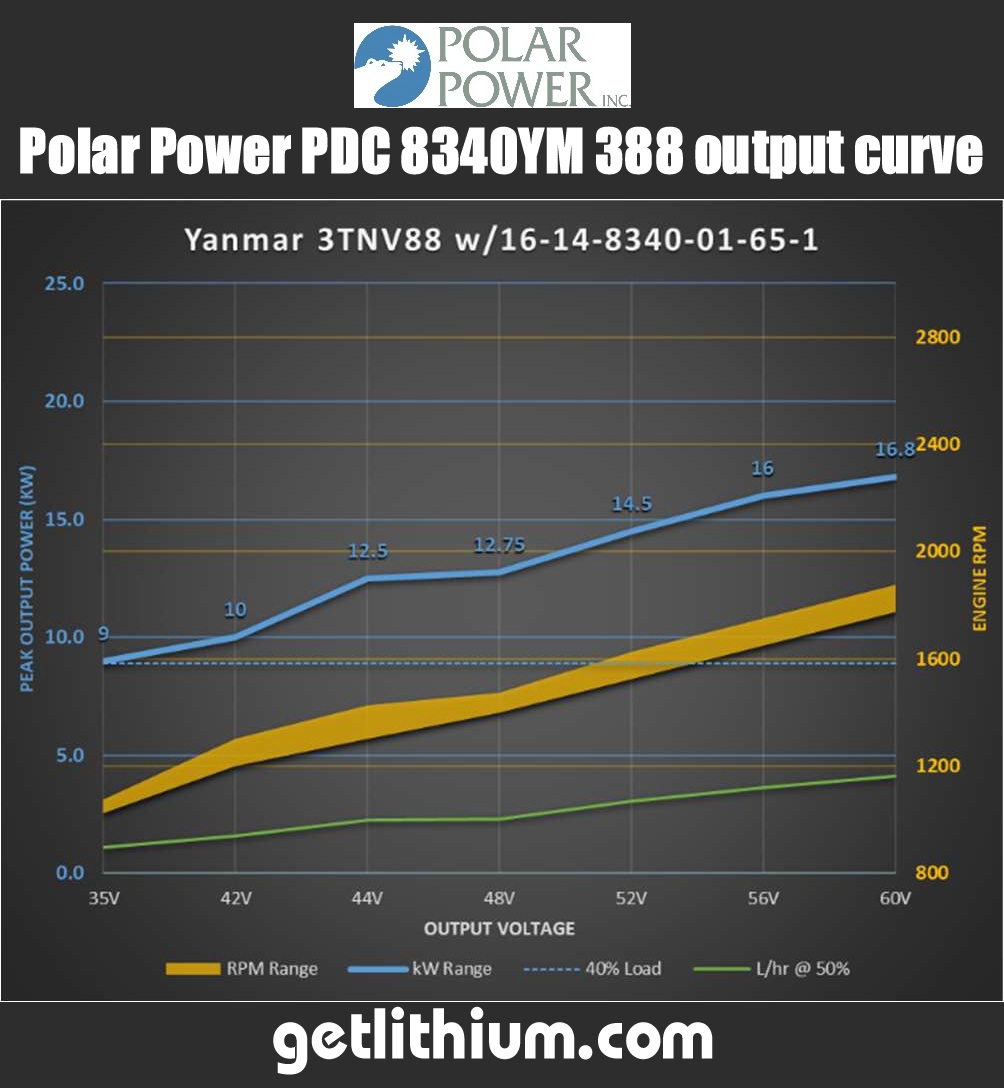

SPECIFICATION BDSA CYLINDERS 3 BORE x STROKE (mm) 88 x 90 DISPLACEMENT in3 (cc) 100.2 (1642) ALTERNATOR 8340 MAX CONTINUOUS OUTPUT (KW) 14 PROGRAMMABLE OUTPUT (kW) 9 – 14 VOLTAGE RANGE AVAILABLE (V) 48 – 800 Max Continuous Current (A) 300 RATED SPEED rpm (Actual) 3000 (2100) LENGTH w/alternator in (mm) 24.7 (627.4) WIDTH in (mm) 20.2 (513.1) HEIGHT in (mm) 26.2 (665.5) WEIGHT lbs (kg) ~ 390 (177) COMBUSTION TYPE Direct Injection ASPIRATION Naturally Aspirated GOVERNOR TYPE Mechanical Lubrication System 6.7L Capacity Electrical System 12V, 40 Amp Alternator Fuel System Distributor-Type MP2 Cooling System Water Pump, Belt Driven Includes: • Supra 250 • Supra 290	Yanmar Engines The PDC-8340YM-388 Generator incorporates the Yanmar 3TNV series engine that is designed for ruggedness while maintaining low noise and vibration. This three-cylinder engine is significantly smoother than other three or less cylinder marine generators. It is our most used diesel engine and has been adapted for marine demands by Polar Power. This series of Polar Power marine solution engines are paired with electric seawater exhaust elbow cooling as standard. Example output with 48V alternator
Market As the desire for Lithium batteries in hybrid boating applications increases, Polar Power is the right solution for efficiently and safely charging the batteries, while providing additional power to the drive system and accessories. The PDC-8340YM-388 offers 14kW continuous power output that can be distributed easily to your DC systems. It’s a good match for any system and can be combined with a second PDC-8340YM-388 for additional capacity or redundancy.
Optional Supra2020 Master Control System
• Site / System monitoring • Integrated Calibration and Control Settings • Green Priority – Solar over generator • Generator runtime scheduling • Generator rotation scheduling • CAN and MODBUS device monitoring • Battery BMS • Solar Controller • CAN and MODBUS device integration		• History Tracking and Export • SMS and E-mail Alerts • Maintenance • Warnings • Critical • User Accounts with Change Log • Site Logs • Backup and Restore functions • NOC Integration

Click here for the 9kW to 16 kW solution details PDF sheet.

Interested in a Polar Power DC Marine Generator? Please complete and email to siteinfo@shaw.ca the Polar Power Client generator worksheet below for a no-pressure quotation:

Click here for the Polar Power Client generator worksheet - Please complete this and email it to siteinfo@shaw.ca with your initial project inquiry
Click here to view the AC generator versus Polar Power DC generator comparison PDF document

Polar Power DC Generators are fully automated fuel powered battery chargers.
The Generator is supplied complete with the necessary microprocessor-based controls and software allowing the Generator to sense the battery state of charge and automatically start and stop.
NOTE: The maximum Amp output of the Polar Power DC Marine Generators is 360 Amps.

Polar Power DC diesel generators can output from 12 Volts to 550 Volts DC. To accomplish this Polar has a variety of alternator windings and models to choose from. This also gives Polar generators the ability to offer specific Voltage ranges at different engine speeds. The higher the Volatge that you decide on the greater will be your choice for engine speeds. Higher Voltages are beneficial to reduce the need for higher currents.

For more information on Polar Power DC Generators or to order,
just give us a Call at 604-510-0800 or Email Us at: siteinfo@shaw.ca

UL approved Lithionics lithium-ion 48 Volt battery with 150 Amp hours capacity. For use with external BMS. Details page...	Deep cycle lithium ion batteries for Camping Trailers, Class A, B and C Motorhome RV's
Deep cycle/ engine cranking lithium ion batteries for Power Boats & Yachts	Lithionics lithium-ion 12 Volt battery with 600 Amp hours capacity. For use with external BMS. Details page...

Be sure to check our "Overview of our Lithium ion Batteries" page.

There you can find out about all the advantages of using our Lithium ion Batteries from Lithionics Battery, as well as determine what battery will replace your existing lead-acid battery.
