HIGH PERFORMANCE SOLAR PV PANELS FOR RECREATIONAL VEHICLES, YACHTS, SAILBOATS
& OFF-GRID APPLICATIONS

$249.00 CAD*

Ships from Canada

Info/ Sales: Call 604-510-0800 or send us an email

$399.00 CAD*

Ships from Canada

Info/ Sales: Call 604-510-0800 or send us an email

$329.00 CAD*

Quantity Discounts and Commercial Wholesale Pricing Available.

Ships from Canada

Info/ Sales: Call 604-510-0800 or send us an email

320 Watt rigid solar panel. With a 2 meter x 1 meter size this 320 Watt system reduces installation costs (fewer mounts needed) and has a great ability to fill various roof top spaces.

High quality/ high transmission textured glass takes means increased diffusion and helps eliminate snow build-up. Comes with rigid anodized aluminum frame so you can mount on just about any commercial, industrial, residential or other type of roof. The HES-310-72P-PV module guarantees a positive output tolerance on every module from 0 to 3%.
Specs:
Maximum Power (Pmax): 320 Watts
Maximum Power Voltage (Vmp): 36.0 Volts
Maximum Power Current: 8.61 Amps
Short Circuit Current (Isc): 9.03 Amps
Dimensions: 77 x 39 x 2" (approx. 2 meters x 1 meter)
Certifications: CETL
Maximum Fuse Rating: 15 Amps
Electrical Connection: MC4 connector
Warranty: 25 Year Linear Performance Guarantee. 10 Year limited warranty on material & workmanship.

*3 panel mimimum order.

NOTE: This panel is not suitable for mobile applications such as RV or Marine Applications as the large unsupported area in the middle is susceptible to cracking from hitting bumps in the road or from heavy seas. It is just fine for stationary roof-top installations, solar farms and the like.

Contact Us for latest pricing.

Quantity Discounts and Commercial Wholesale Pricing Available.

Ships from Canada

Info/ Sales: Call 604-510-0800 or send us an email

335 Watt rigid mono solar panel.

THE IDEAL SOLUTION FOR: Rooftop arrays on residential buildings

Q.ANTUM TECHNOLOGY: LOW LEVELIZED COST OF ELECTRICITY
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.8%.

INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behavior.

ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID and Anti PID Technology1, Hot-Spot Protect and Traceable Quality Tra.Q.

EXTREME WEATHER RATING
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa).

A RELIABLE INVESTMENT
Inclusive 25-year product warranty and 25-year linear performance warranty.

STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.

SPECIFICATIONS:

Cells: 6 x 20 monocrystalline Q.ANTUM solar half cells

Dimensions: 68.5 x 40.6 x 1.26 in (including frame) (1740 x 1030 x 32 mm)

Weight: 43.9 lbs (19.9 kg)

Front Cover: 0.13 in (3.2 mm) thermally pre-stressed glass with anti-reflection technology

Frame: Black anodized aluminum

Short Circuit Current: 10.47 Amps
Open Circuit Voltage: 40.41 Volts
Current at MPP: 9.97 Amps
Voltage at MPP: 31.97 Volts

*3 panel mimimum order.

NOTE: This panel is not suitable for mobile applications such as RV or Marine Applications as the large unsupported area in the middle is susceptible to cracking from hitting bumps in the road or from heavy seas. It is just fine for stationary roof-top installations, solar farms and the like.

Q.PEAK DUO BLK-G6+ 340 BLK

340 Watt rigid mono solar panel.

THE IDEAL SOLUTION FOR: Rooftop arrays on residential buildings

Q.ANTUM TECHNOLOGY: LOW LEVELIZED COST OF ELECTRICITY
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.8%.

INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behavior.

ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID and Anti PID Technology1, Hot-Spot Protect and Traceable Quality Tra.Q.

EXTREME WEATHER RATING
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa).

A RELIABLE INVESTMENT
Inclusive 25-year product warranty and 25-year linear performance warranty.

STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.

SPECIFICATIONS:

Cells: 6 x 20 monocrystalline Q.ANTUM solar half cells

Dimensions: 1740 mm x 1030 mm x 32 mm (including frame)

Weight: 43.9 lbs (19.9 kg)

Front Cover: 0.13 in (3.2 mm) thermally pre-stressed glass with anti-reflection technology

Frame: Black anodized aluminum

Short Circuit Current: 10.52 Amps
Open Circuit Voltage: 40.66 Volts
Current at MPP: 10.02 Amps
Voltage at MPP: 33.19 Volts

*3 panel mimimum order.

NOTE: This panel is not suitable for mobile applications such as RV or Marine Applications as the large unsupported area in the middle is susceptible to cracking from hitting bumps in the road or from heavy seas. It is just fine for stationary roof-top installations, solar farms and the like.

350 Watt rigid mono solar panel.

THE IDEAL SOLUTION FOR: Rooftop arrays on residential buildings

Q.ANTUM TECHNOLOGY: LOW LEVELIZED COST OF ELECTRICITY
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.8%.

INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behavior.

ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID and Anti PID Technology1, Hot-Spot Protect and Traceable Quality Tra.Q.

EXTREME WEATHER RATING
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa).

A RELIABLE INVESTMENT
Inclusive 25-year product warranty and 25-year linear performance warranty.

STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.

SPECIFICATIONS:

Cells: 6 x 20 monocrystalline Q.ANTUM solar half cells

Junction Box: 2.09-3.98 x 1.26-2.36 x 0.59-0.71 in (53-101 x 32-60 x 15-18 mm), Protection class IP67, with bypass diodes

Connector: Staubli MC4; IP68 with 45.3" cables

Dimensions: 68.5 x 40.6 x 1.26 in (including frame) (1740 x 1030 x 32 mm)

Weight: 43.9 lbs (19.9 kg)

Front Cover: 0.13 in (3.2 mm) thermally pre-stressed glass with anti-reflection technology

Frame: Black anodized aluminum

Short Circuit Current: 10.63 Amps
Open Circuit Voltage: 41.17 Volts
Current at MPP: 10.13 Amps
Voltage at MPP: 34.56 Volts

*3 panel mimimum order.

NOTE: This panel is not suitable for mobile applications such as RV or Marine Applications as the large unsupported area in the middle is susceptible to cracking from hitting bumps in the road or from heavy seas. It is just fine for stationary roof-top installations, solar farms and the like.

425 Watt rigid mono solar panel.

THE IDEAL SOLUTION FOR: Rooftop arrays on commercial / industrial buildings and Ground-mounted solar power plants

Q.ANTUM TECHNOLOGY: LOW LEVELIZED COST OF ELECTRICITY
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.3%.

INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behavior.

ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID and Anti PID Technology1, Hot-Spot Protect and Traceable Quality Tra.Q.

EXTREME WEATHER RATING
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa).

A RELIABLE INVESTMENT
Inclusive 12-year product warranty and 25-year linear performance warranty.

STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative 12-busbar design with Q.ANTUM Technology.

SPECIFICATIONS:

Cells: 6 x 24 monocrystalline Q.ANTUM solar half cells

Junction Box: 53-101 mm x 32-60 mm x 15-18 mm Protection class IP67, with bypass diodes

Connector: Staubli MC4, Hanwha Q CELLS HQC4, Amphenol UTX, Renhe 05-6, Tongling TL-Cable01S, JMTHY JM601; IP68 or Friends PV2e; IP67 with 1,400 mm cables

Dimensions: 2,080 mm x 1,030 mm x 35 mm (including frame)

Weight: 24.5 kg

Front Cover: 0.13 in (3.2 mm) thermally pre-stressed glass with anti-reflection technology

Frame: anodized aluminum

Short Circuit Current: 10.78 Amps
Open Circuit Voltage: 49.09 Volts
Current at MPP: 10.27 Amps
Voltage at MPP: 41.39 Volts

*3 panel mimimum order.

NOTE: This panel is not suitable for mobile applications such as RV or Marine Applications as the large unsupported area in the middle is susceptible to cracking from hitting bumps in the road or from heavy seas. It is just fine for stationary roof-top installations, solar farms and the like.

350 Watt rigid mono solar panel.

The LG NeON 2 is one of the most powerful and versatile modules on the market today. Featuring LG's Cello Technology in monocrystalline n-type solar cells, the LG NeON 2 increases power output. Now includes a 25 years product and 90.1% performance warranty for higher performance and reliability. The new LG NeON 2 has been designed with aesthetics in mind using new cell design.

SPECIFICATIONS:

Cells: Monocrystalline /N-type

Junction Box: IP 68 with 3 Bypass Diodes

Connector: MC 4 with 1,000 mm cables

Dimensions:1,700mm x 1,016mm x 40 mm

Weight: 18.0 kg

Front Cover: Tempered Glass with AR Coating

Frame: anodized aluminum

Short Circuit Current: 10.76 Amps
Open Circuit Voltage: 41.4 Volts
Current at MPP: 10.22 Amps
Voltage at MPP: 34.3 Volts
Efficiency: 20.3 %

*3 panel mimimum order.

NOTE: This panel is not suitable for mobile applications such as RV or Marine Applications as the large unsupported area in the middle is susceptible to cracking from hitting bumps in the road or from heavy seas. It is just fine for stationary roof-top installations, solar farms and the like.

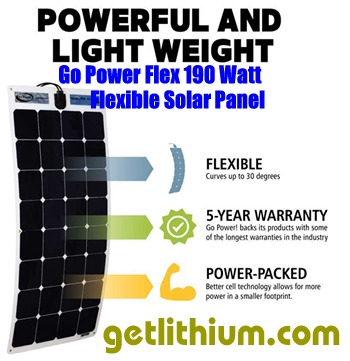

GO POWER SOLAR PANELS:
ECONOMICAL SEMI-FLEXIBLE SOLAR PANEL KITS

Solar Panel Brand	Model Number	Graphic	$CAD Price (subject to change)
Go Power	GP-FLEX-110E expansion kit Note: Now has 110 Watts output	Click on image for larger pic Installation Notes: These panels can be mounted flush with any solid surface using a special 3M brand VHB tape (Very High Bond). This special tape is commonly used in the automotive industry as a replacement for welding metal panels together so it is very strong and durable. For this size of solar panel, if Pinnacle installs them we will need approx. 15 feet of the 1" VHB tape which with a special adhesion promotor works out to $4.27 CAD per foot or approximately $64.05 CAD extra per panel.	LOWER PRICE! $396.90 CAD Info/ Sales: Call 604-510-0800 or send us an email
Go Power Solar Flex Expansion Kit Product ID: GP-FLEX-110E expansion kit 110 Watt semi-flexible Go Power solar panel only. Can be used with other modules to create a solar array. Specs: Output Power: 110 Watts Solar Cell: Flexible, back-contact monocrystalline Installation: Penetrating and adhesive roof mount MC4 connectors (branch plug/socket included in expansion kits) Solar output power limited warranty: 5 Years Rated current: 5.62 Amps Open-circuit voltage: 20.8 Volts Dimensions (HxWxD): 44.6 x 21.4 x 0.1 in / 1134 x 544 x 3 mm Solar Panel Weight: 2.9 lb / 1.35 kg Solar Power Cable Whip Length With MC4 Connector: 18" Solar Charge Controller: If using with a Lithionics lithium-ion battery system we recommend the following MPPT solar charge controllers available through us: - Midnite Solar - Gensaun - Victron Energy BlueSolar and SmartSolar (preferred)
Go Power	GP-FLEX-110 kit with Go-Power MPPT Note: Now has 110 Watts output	Click on image for larger pic	$1,320.00 CAD Info/ Sales: Call 604-510-0800 or send us an email
Go Power 110 Watt Solar Flex Kit Product ID: GP-FLEX-110 kit 100 Watt semi-flexible Go Power solar panel kit with solar charge controller. Specs: Output Power: 110 Watts Solar Cell: Flexible, back-contact monocrystalline Installation: Penetrating and adhesive roof mount Included: 25' of MC4 output cable (#10), mounting hardware Solar output power limited warranty: 5 Years Rated current: 5.62 Amps Open-circuit voltage: 20.8 Volts Dimensions (HxWxD): 44.6 x 21.4 x 0.1 in 1134 x 544 x 3 mm Solar Panel Weight: 2.9 lb / 1.35 kg Solar Power Cable Whip Length With MC4 Connector: 18" Go Power MPPT Solar Charge Controller: Included. NOTE: If using with a Lithionics lithium-ion battery system we recommend the following MPPT solar charge controllers available through us: - Midnite Solar - Gensaun - Victron Energy BlueSolar and SmartSolar (preferred)

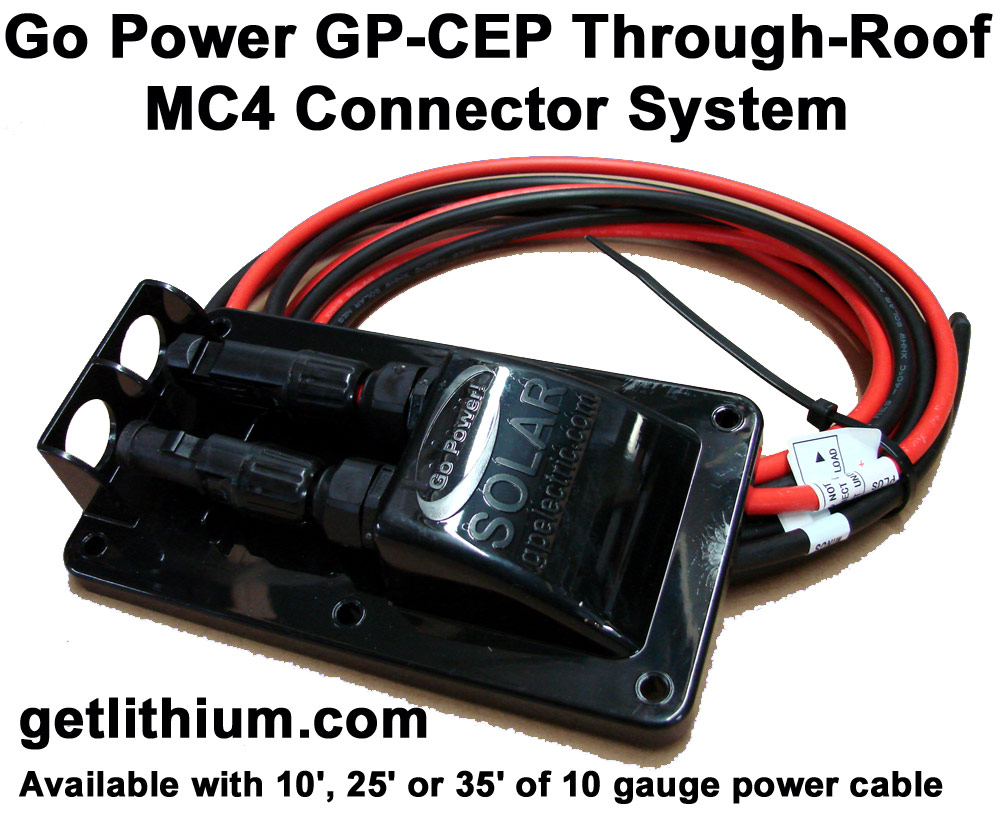

Go Power	GP-CEP	Click on image for larger pic	GP-CEP 10 inch: $38.00 CAD GP-CEP 10 feet: $68.00 CAD GP-CEP 25 feet: $134.64 CAD Info/ Sales: Call 604-510-0800 or send us an email
Go Power GP-CEP through roof MC4 solar power cable kits are the perfect and secure way to transmit the solar panel output cables through an RV roof or yacht deck. Simple plug in your positive and negative MC4 power cables on the top-side and use the included high efficiency 10 gauge power cables on the lower side to run to your fuse box and solar charge controller. One GP-CEP will serve one Solar PV panel array. Available with 10 inches, 10 feet or 25 feet of 10 gauge power cable lengths on the underside. Notes: 1. Thes mount to any flat surface with six #8 or #10 stainless steel screws and require two holes to be drilled in the roof for the cables to pass through. In this type of installation we recommend that you properly seal the screws with sealant and run a bead of sealant around the base plate. 2. We can supply these with an aluminum base plate that adheres to the roof without mounting screw holes in the roof (to minimize the number of holes in the roof). The GP-CEP bolts to the aluminum plate with stainless steel bolts with a rubber gasket between the GP-CEP and the aluminum plate and the aluminum plate is adhered to the roof with special 3M Very High Bond double-sided tape (supplied). This reduces the number of holes in the roof to 2 for the 10 gauge power cables. This option adds $110.00 CAD to each GP-CEP. 3. You can see two of these installed on the RV roof in the photo below in the top left corner of the photo.
Go Power	GP-FLEX-220 kit with Go-Power MPPT Note: Now has 220 Watts output	Click on image for larger pic	$1,825.00 CAD Info/ Sales: Call 604-510-0800 or send us an email
Go Power 220 Watt Solar Flex Kit Product ID: GP-FLEX-220 kit Two 110 Watt semi-flexible Go Power solar panels in a kit witha Go Power MPPT solar charge controller. Specs: Output Power: 220 Watts Solar Cell: Flexible, back-contact monocrystalline Installation: Penetrating and adhesive roof mount Included: Two 25' MC4 output cables (#10), mounting hardware Solar output power limited warranty: 5 Years Rated current: 5.62 Amps each panel x 2 Open-circuit Voltage: 20.8 Volts Dimensions (HxWxD): 44.6 x 21.4 x 0.1 in / 1134 x 544 x 3 mm Solar Panel Weight each: 2.9 lb / 1.35 kg x 2 Solar Power Cable Whip Length With MC4 Connector: 18" Go Power MPPT Solar Charge Controller: Included. NOTE: If using with a Lithionics lithium-ion battery system we recommend the following MPPT solar charge controllers available through us: - Midnite Solar - Gensaun - Victron Energy BlueSolar and SmartSolar (preferred) Go Power 500 Watt semi-flexible solar panel installation on a 24 foot Ford Transit RV Note: This 500 Watt array was outputing over 19 Amps on a partly cloudy day at the end of April outside our North Vancouver shop - with the panels pointing down from horizontal 15 degrees away from the sun. During peak summer days we expect that output will exceed 30 Amps of charging per hour.

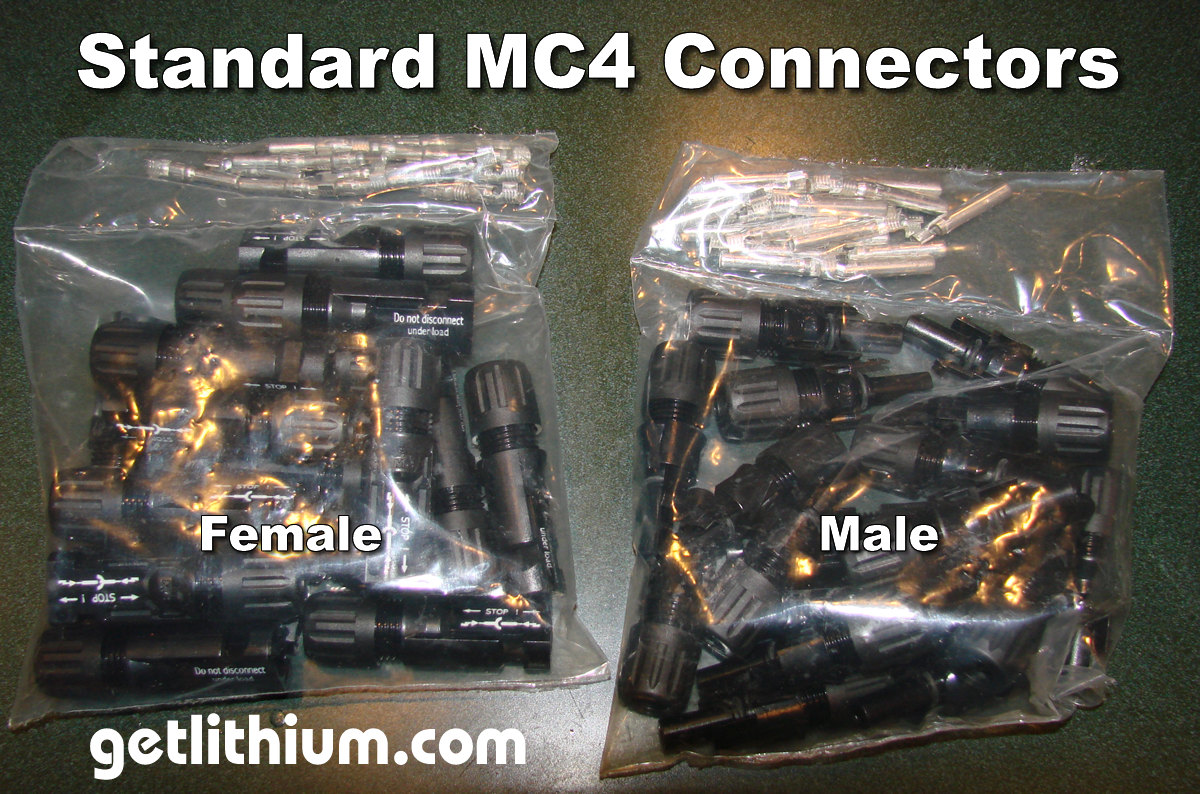

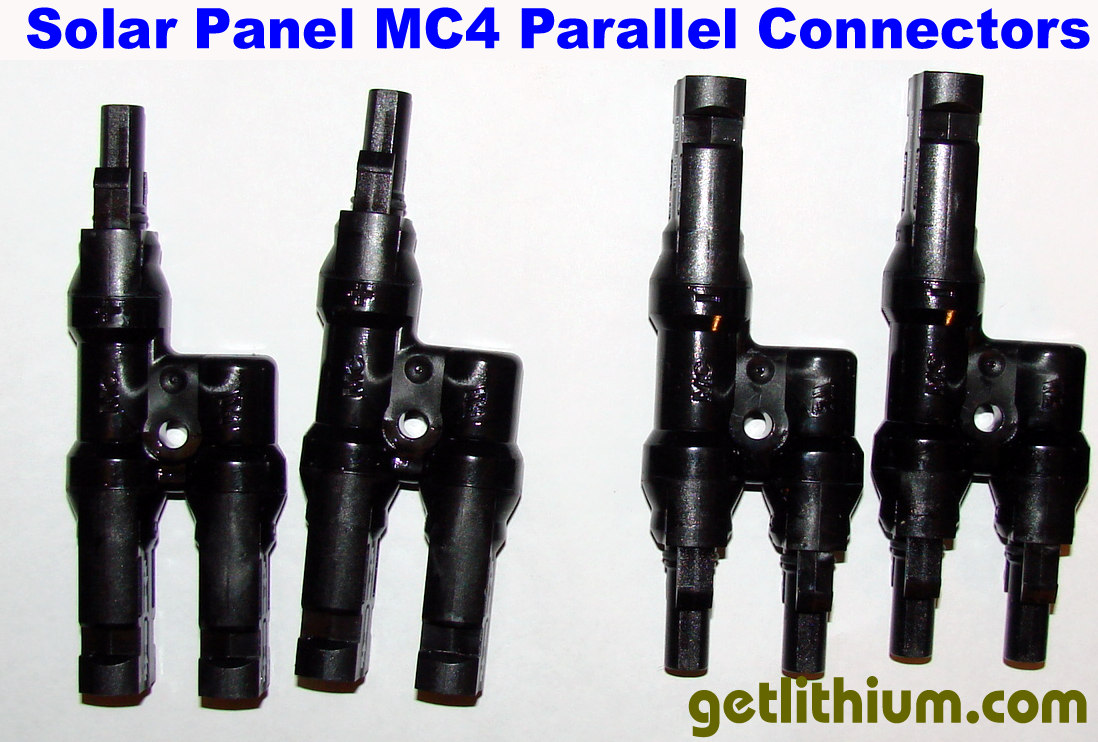

We offer a complete selection of all the electric parts that you will need for your RV, Yacht or Residential Clean Energy Project including resettable breakers, terminal fuse blocks and more. In many cases, we can provide you with a 5,000 Ohm "Resistor Bridge" for some devices using the Perfect Switch POWER-GATE relays where the generator or MPPT solar charge controllers need to be able to constantly "sense" the battery(s) Voltage. In these situations, the Resistor Bridge allows the battery's Voltage to pass over the POWER-GATE device but only allows a very small amount of current to pass - typically about 0.15 Amps. On dual rectifier isolators like the one shown above right (used to connect one alternator to 2 separate battery banks to allow independent/ optimal charging of both battery banks from one alternator), we can install one Resistor Bridge on each of the two stud posts that go to the battery (on the right of above photo) and the other end of the Resistor Bridges bolt onto the input stud post on the left in the photo to the right.   MC4 Connectors: If you need some high quality weatherproof solar cable connectors to make up your own length of solar panel connection cables, we normally stock enough of these to outfit any RV or yacht. Available in both male and female. We can also supply you the special nylon MC4 disconnect/ assembly tools as well as well as high quality ratcheting/ locking MC4 connector wire crimping tool. $6.29 CAD each MC4 Y-Connectors: If you need some high quality weatherproof solar cable connectors to paralle connect, 2, 3 or more solar panels, we normally stock enough of these to outfit any RV or yacht. Available in both male and female. We can also supply you the special nylon MC4 disconnect/ assembly tools as well as well as high quality ratcheting/ locking MC4 connector wire crimping tool. $35.00 CAD each We will be happy to specify and quote all the parts that you need to complete your solar power installation including bus bars, inline fuses, resettable circuit breakers, solar panel extension power wire with MC4 connectors and so on. Call us at 604-510-0800 or Email Us Contact Pinnacle Innovations The photo to the right shows the Resistor Bridges installed on 3 POWER-GATE single rectifiers rated at 50 Amps each that connect to 3 Victron Energy MPPT solar charge controllers powered by Solbian solar panels. These 3 solar circuits feed 3 separate battery banks for recharging and as those battery banks also have other charging devices connected to them that can run at the same time as we have solar output, the POWER-GATE single relays prevent any possible charging conflicts. Click here for the Perfect Switch POWER-GATE rectifier relay main page.

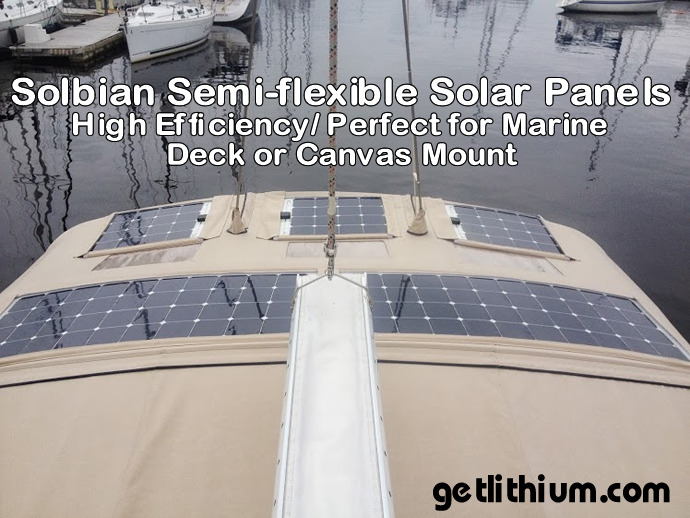

SOLBIAN Solar Panels are manufactured in Italy with unsurpassed engineering, quality, performance and durability.

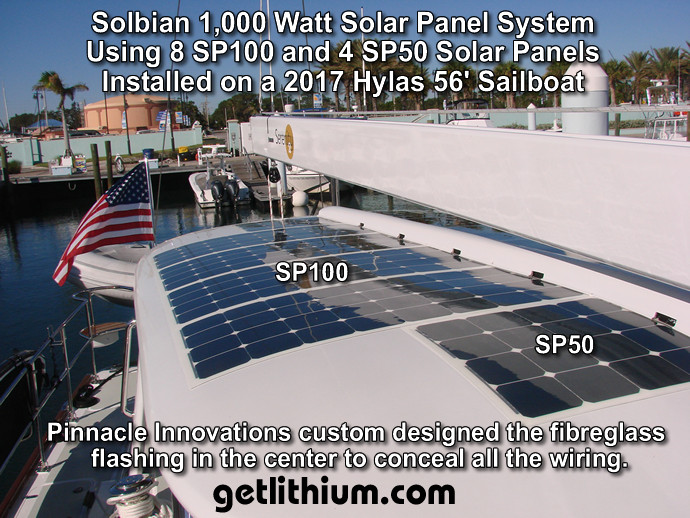

SOLBIAN - PERFECT FOR MARINE	SOLBIAN - PERFECT FOR RV

SOLBIAN SP SERIES SOLAR PANELS - This is Solbian's Highest Output Series using SunPower cells. With an efficiency rating up to 23% for the Solbian SP Series, these are the most powerful, super slim profile and ultra lightweight semi-flexible solar PV panels - perfect for Marine, RV and other types of roofs with curved surfaces. SR and SXp Series down the page.

The Solbian SP Series is at the top of the range, thanks to the use of selected SunPower monocrystalline silicon cells, reaching a record 23% conversion of sunlight into electricity and with a pleasant appearance thanks to back-contact technology which hides the electrical contacts. SunPower cells represent the most advanced available technology on the market, and make the SP Solbian panels the highest-efficiency flexible panels.

Super efficient self-adhesive semi-flexible solar panel. Great for RV, Marine, Golf Carts and curved roof surfaces.
Power: 50 Watts
Length: 44" / 1109mm
Width: 11.7" / 292mm
Height: 1/16" / 3mm
Weight: 1.8 pounds
Panel (Vmp): 9 Volts
Max. current to 12 Volt battery: 4.2 Amps
Estimated Yield/ Charging to your Battery Bank: 12 to 20 Amp hours per day

$495.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$495.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$595.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$690.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$990.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$1,090.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$1,090.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$1,190.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$1,488.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$379.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$459.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$529.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$529.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$751.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$989.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$1,119.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$1,119.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$259.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$279.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$349.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$349.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$479.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$659.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$769.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

$769.00 USD*

Ships to USA/ International Customers.

Canadian prices are higher for Canadian Customers.

Info/ Sales: Call 604-510-0800 or send us an email

SUN POWER SOLAR PANELS:
ECONOMICAL SEMI-FLEXIBLE SOLAR PANEL KITS

Notes:
Prices subject to change without notice. We can offer quantity discount pricing.
*3 unit minimum order applies to some panels.
