Powerful, Lightweight, Long-Lasting Premium Lithionics Battery Lithium-Ion
Batteries for Solar Power, Recreational Vehicles and Marine
|
|
|
|
|
|
|
|
|
|
|
|
| |
GTX
Series Lithium Ion Battery and Accessories
All Prices $USD. Contact Us for Shipping/ Freight
Costs.
|
|
|
|
|
Battery
Model
|
Applications
|
Volts
|
Watt
Hours
|
RC
Mins
|
Ahr
|
Weight
|
Size
|
Lithionics
Battery Price*
|
Lithionics
Battery GTX 12V 305A
E1508-CS200 Lithium-ion Battery
Lithionics
Battery 12 Volt Lithium-ion Battery
UN DOT 38.3 & other ratings
|
Mercedes
Benz Sprinter Vans, Off-Grid, RV, Industrial Energy Systems,
Trucks, Solar Power Systems
|
12.8
|
|
|
305
|
|
14.5" x 8.5" x 11.2" overall height including
terminals. Add extra space for optional wire harness.
|
$4,299.00
USD
Note:
Available July 2023
|
|
|
"THE
BOSS 302"
GREAT NEW UL CERTIFIED LITHIONICS BATTERY INTERNAL BMS LITHIUM-ION
BATTERY: Contact Us for price. Includes the internal Lithionics
automated heater system AND the Bluetooth SOC/ Battery Monitor
System (over a $500.00 USD value at no extra charge). New
Fireproof Battery Case.

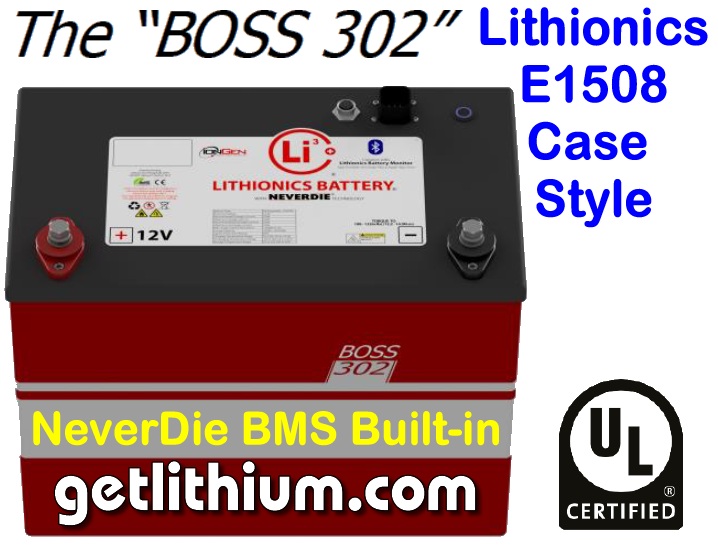

The
Lithionics Battery GTX 12V 305A E1508-CS200 is a
great compact high capacity single 12 Volt lithium-ion battery
with 320 Amp hours capacity. A great, lightweight lithium
ion battery with 3,904 Total Watt Hours capacity and built-in
CS series 200 constant Amp BMS (250 Amps for short periods).
High cranking Amps means this is a dual purpose deep cycle
and engine cranking LiFePO4 battery (can start many RV generators
in the 2500 to 3800 Watt range). Please inform us of the
intended orientation of the battery before ordering.

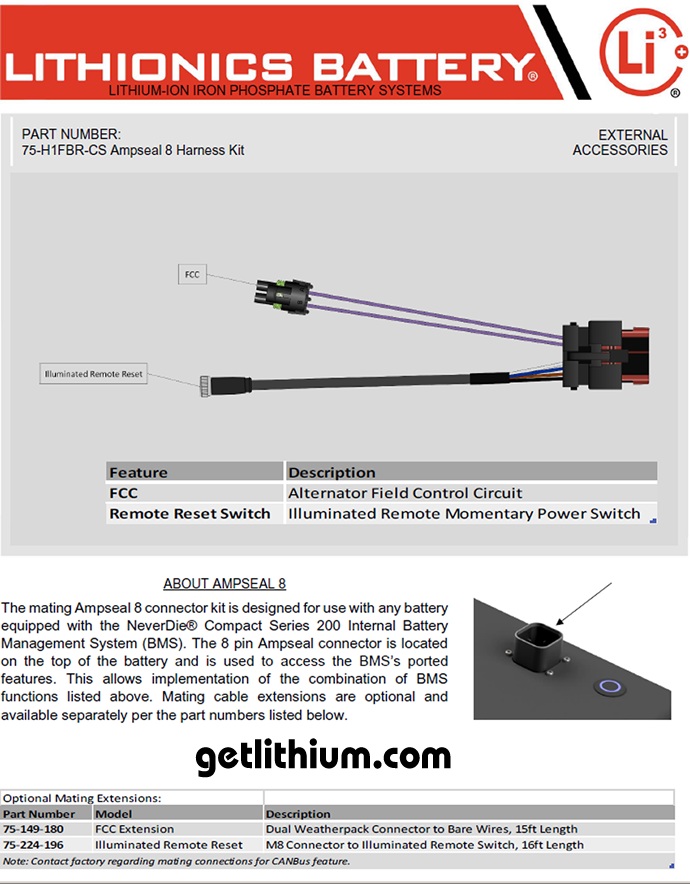

NEW:
If you need the CANbus capabilities of this battery and
you have limited space above the battery, we now offer the
following 90 degree M12 special adapter cable (price is
$80.24 USD) that will reduce the "plugged in height":
|
Warranty
Approved Wiring Diagrams for 1 or 2 of the GTX 12
Volt 305 or 320 Amp Hour Internal BMS Lithionics Batteries:
|
Single Lithionics lithium-ion battery with Kisae 3,000
Watt inverter-charger |
Single
Lithionics lithium-ion battery with Victron Multiplus
3,000 VA inverter-charger |
Single
Lithionics lithium-ion battery with Victron Multiplus
II 3,000 VA inverter-charger |
|
|
|
|
Single
Lithionics lithium-ion battery with Victron Multiplus
2,000 VA inverter-charger |
Single
Lithionics lithium-ion battery with Xantrex Freedom
Pro XC 3,000 Watt inverter-charger |
Single
Lithionics lithium-ion battery with Xantrex Freedom
Pro XC 2,000 Watt inverter-charger |
|
|
|
|
Two Lithionics lithium-ion batteries with Kisae 3,000
Watt inverter-charger |
Two
Lithionics lithium-ion batteries
with Victron Multiplus 3,000 VA inverter-charger |
Two
Lithionics lithium-ion batteries
with Victron Multiplus II 3,000 VA inverter-charger |
|
|
|
|
| |
Two
Lithionics lithium-ion batteries
with Xantrex Freedom Pro XC 3,000 Watt inverter-charger |
|
IMPORTANT
NOTES:
- Although
it is recommended to use two of these batteries in parallel
to run a 3,000 Watt inverter-charger, if using one of
these batteries connected to a 3,000 Watt inverter-charger
(such as Victron Multiplus, Xantrex Freedom PRO XC,
Kisae 3kW) it is required to use at least 2 feet of
2/0 DC power cabling between the inverter-charger and
the bus barsas well as at least 2 feet of 2/0 DC power
cabling between the battery system and the bus bars.
Please do not use the bigger 4/0 DC power cable. The
smaller power cable helps to dampen the big inverter-charger's
"in-rush currents" and will help eliminate
inverter startup errors that can happen in rare instances.
In addition, you will need to install a mechanical battery
disconnect switch rated at 350 constant Amps or higher
between the battery and the bus bar as well as between
the bus bar and the inverter-charger.
- When
using one or two of these batteries AND a 3,000 Watt
or 3,000 kVA inverter-charger it is required to have
two 350 Amp or higher rated manual battery/ inverter
disconnect switches. One installs between the battery(s)
and the positive bus bar and one installs between the
positive bus bar and the inverter. In addition, we require
either an MRBF terminal block fuse or Class T fuse connected
to/ from the positive battery terminal(s) to the positive
bus bar and either a Class T or MEGA Fuse must be installed
between the positive bus bar and the inverter. Pinnacle
Innovations/ getlithium.com can supply our valued Clients
with all of these installation components at minimal
additional cost.
- In
addition, please follow these operational instructions
when using one or two of these batteries with either
a 2,000 or 3,000 Watt inverter-charger:
- Shut-Down:
- First,
turn off major 120 VAC inverter loads.
- Next,
turn off the inverter-charger.
- Next,
turn off the inverter disconnect switch.
- Next,
turn off the battery disconnect switch.
- Finally,
turn the battery(s) off.
- Start-Up:
- Make
sure that major 120VAC inverter loads are switched
off.
- First,
turn the battery(s) on.
- Next,
turn the master battery disconnect switch on.
- Next,
turn the inverter disconnect switch on.
- Finally,
turn on the inverter.
- NO
MARINE USE: Unfortunately
we can no longer warranty approve the use of internal
BMS Lithionics batteries like this model as well as
the 130 Amp hour and 630 Amp hour internal BMS Lithionics
batteries for Marine Applications. For Marine Applications
we always need to use battery modules with the more
robust external NeverDie Battery Management System (BMS).
- We
will be posting new and warranty approved Lithionics
installation wiring diagrams shortly.
Also
available as a 320 Amp hour battery module with aluminum
case and internal battery heater for use with external
Lithionics BMS box. Details...
|

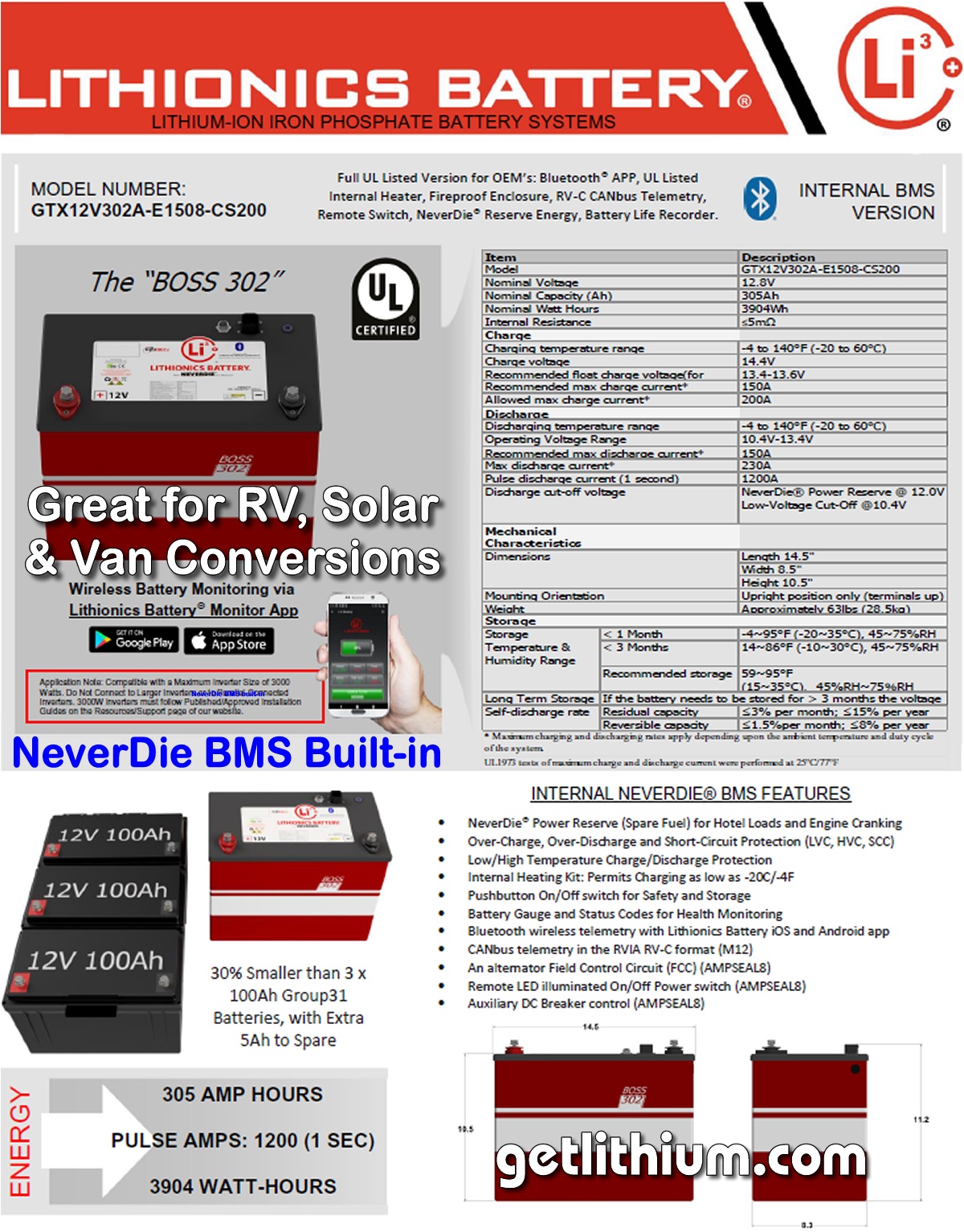

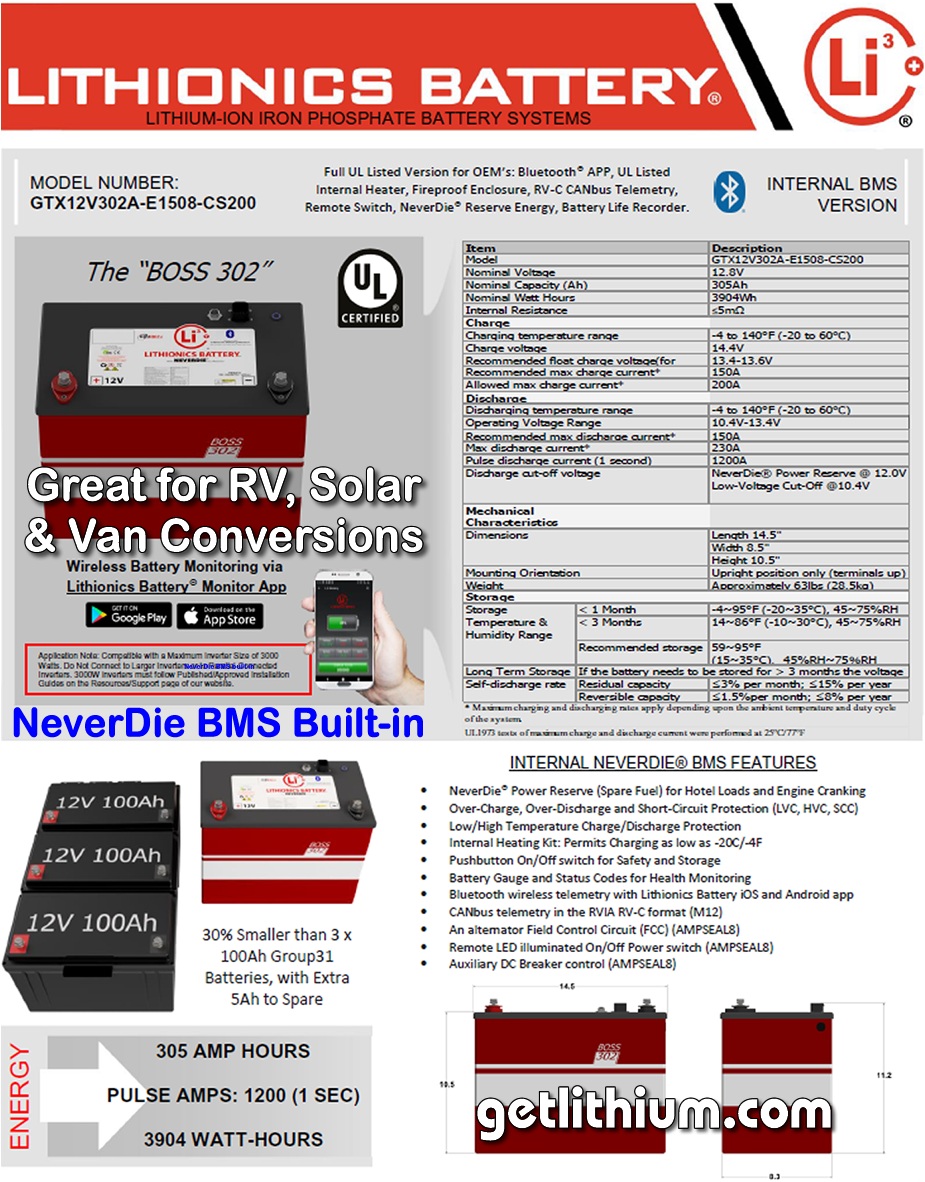

Click
on the PDF logo to the right to view this Lithionics
Battery 305 Amp hour lithium-ion battery PDF spec
sheet
|
|
|
Click
on the PDF logo to the right to view how this Lithionics
Battery compares to low cost/ low quality Competitor
lithium-ion batteries that just don't measure up and
lack safety.
|
|
|
Click
on the PDF logo to the right for the Lithionics Battery
spec sheet in PDF format.
The Lithionics Batteries are "lithium-ion"
which is the short term for lithium iron phosphate
and the chemistry name for the batteries is the super
safe and reliable "LiFePO4".
|
|
|
Click on the PDF logo to the right to view the Lithionics
Battery Battery Charger Approved Settings Guide
|
|
For
more information about the Lithionics Battery Lithium-ion
Batteries including the Battery Cycle Life Chart, links
to the Warranty Page and so on, visit
the additional battery details page here...
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MORE POWER
|
1/5 WEIGHT OF AGM/ LEAD
|
LONG LIFE
|
ENVIRONMENTALLY FRIENDLY
|
|
|
|
|
|
|
