Lithionics Battery deep cycle lithium-ion batteries for solar power, recreational vehicles, electric marine propulsion systems and marine house battery applications

HIGH OUTPUT ALTERNATOR UPGRADES AND
RV/ MARINE INVERTER-CHARGER PAGE

battery site spacer battery site spacer battery site spacer


Xantrex, Magnum, Victron inverter-charger and Nations alternator upgrades for RV and marine

VIEW THE HIGH OUTPUT ALTERNATORS, INVERTER-CHARGERS AND OTHER ELECTRICAL PARTS AND PRICING DOWN THE PAGE

At Pinnacle Innovations we take a "Total Systems Approach" with every project to make sure that all variables are identified so that we can design the correct system for you the first time. Normally this involves a little information gathering and sharing during the first few communications. We are not just here to sell batteries and parts - we offer well planned "Engineered Solutions".

Our goal is to identify:

  • All of your existing equipment - both AC (120 Volt or 240 Volt Alternating Current) and DC (12 Volt or 24 Volt Direct Current) devices as well as their Amp draws/ charging capabilities. In addition, we determine for how many hours each day these devices are used so that we can come up with a "Power Inventory" for both Charging Devices as well as Load Devices. We aim to work with and reprogram existing charging equipment whenever possible to be compatible with lithium-ion battery charging requirements - we don't want you to have to buy replacement parts if we can reprogram your existing charging equipment.
  • The physical dimensions of compartments that you wish to locate new equipment such as the Lithionics batteries, inverter-chargers and so on. This helps us make drawings to see what size(s) of batteries etc. will fit in the most economical way. As part of this process we also look at power cabling distances to optimize efficiency and minimize DC power cable costs.

    Sample marine installation wiring diagram with Lithionics 12 and 24 Volt batteries, Victron inverter-charger, high output alternator upgrade, Polar Power DC diesel generator and Solbian solar panel array with 1,000 Watts of power

    Sample marine installation wiring diagram with Lithionics 12 and 24 Volt battery banks as specified by Client, 24 Volt Victron 3kW inverter-charger, DC Power Solutions high output alternator upgrade, Polar Power 8kW DC diesel generator, Perfect Switch POWER-GATE rectifier isolators and ORing relays, Solbian solar panel array with 1,000 Watts of power.

    Sample 48 Volt marine wiring diagram

    Click on the above Sample Wiring Diagram for details of this 48 Volt Lithionics lithium-ion battery system with twin Elco EP-20 48 Volt electric marine engines on a 24 foot pontoon houseboat.
  • Your desired operation of the system. This is sometimes referred to as the "Duty Cycle" - for how long you want to be able to power the equipment before the need for recharging. From this we analyze the battery bank size needed as well as recharging options and their output. Wherever possible, we try to maximize what we call "Opportunity Charging" where equipment like alternators or solar panels can be recharging the battery bank whenever possible to minimize the battery system depth of discharge and keep your battery system topped up.

From this, we can create some drawings as well as wiring diagrams, specify components needed and come up with a quote for you. In many cases we can also provide installation or installation support - we have travelled to Taiwan, Florida and other locations to assist clients with on-site support, testing and installations.



High output alternator upgrades for RV, Marine
Powerful and efficient inverter-charger upgrades for RV, Marine

A powerful Alternator upgrade:

We offer alternator upgrades including Balmar, Nations and DC Power Solutions. Alternators up to 350 Amps of output with 180+ Amps output at idle. Available as single OEM alternator replacements or custom dual alternator upgrades.

Click here for a larger image of the Nations Alternator high output alternators.

Click here for a larger image of the Nations Alternator high output alternators and Balmar MC-614 external Voltage regulator.
Nations Alternator high output alternator and Balmar MC-614 external Voltage regulator. Details and pricing below...

Click on the image for a larger Nations Alternator wiring diagram

Click on the image for a larger Nations Alternator wiring diagram

In general, for most applications, a high output alternator upgrade is going to start around $700.00 USD and go up from there. Get in touch with us at Pinnacle Innovations to get you the right solution at the right price.

For More Information on High Output Alternators for Marine and RV,
a System Evaluation or to Order,
Call: 604-510-0800
or Email Us

A big part of any alternator upgrade is a system analysis that inludes reviewing cabling capacity and battery isolators that may be involved. In most cases, existing solenoid style battery isolators will not only prove inefficient but will not be able to handle the indreased Amps going through them. The best way to upgrade these is with a Perfect Switch POWER-GATE battery isolator. Pinnacle Innovations has worked closely with Perfect Switch Enginneers to come up with some creative, simple and safe engineering solutions on some of our custom projects.

Perfect Switch Power-Gate dual rectifier solid state battery isolators

Dual Rectifier Isolator

(Gen 4.0)
Lithionics spacer

Whether you have a diesel marine engine or a gas RV engine, chances are that we are able to offer either a replacement alternator or even a dual alternator upgrade soultion. Balmar and Nations offer several models that fit most popular diesel and gas engines.

Balmar high output "red case" marine alternator with Balmar MC series external Voltage regulator
Balmar high output "red case" marine alternator with Balmar MC series external Voltage regulator. Balmar details below...

Nations Alternator high output alternators for RV, Marine and more
Nations Alternator high output alternators for RV, Sprinter Van Conversions, Marine and more. Details below...

We can also supply custom-made high output alternators through DC Power Solutions - like the one shown here on our customer's 150HP Volvo-Penta 12 Volt propulsion engine installed in Taiwan by Queen Long Marine Company on our customer's 56' Hylas sailboat:

DC Power Solutions 180 Amp 12 Volt high output marine alternator with Balmar MC-614 external Voltage regulator installed on a Volvo-Penta 150HP diesel marine engine.

DC Power Solutions 180 Amp 12 Volt high output marine alternator with Balmar MC-614 external Voltage regulator installed on a Volvo-Penta 150HP diesel marine engine.
DC Power Solutions 180 Amp 12 Volt high output marine alternator with Balmar MC-614 external Voltage regulator installed on a Volvo-Penta 150HP diesel marine engine. Details below...

One thing we always look at with alternator upgrades is whether or not we can utilize an external Voltage Regulator - like the Balmar MC-614 external Voltage regulator. One of the main advantages of this is that we remove the regulatoir from the heat-susceptible alternator so efficiency gains and charging Amps can be greater.

Balmar MC-614 external Voltage regulator for high output marine and RV alternators
Balmar MC-614 external Voltage regulator for high output marine and RV alternators (see details below).

We can also provide customers with upgraded copper power cabling. Most often we use Ancor 4/0 and smaller marine rated/ ABYC certified power cabling with 105 Celsius conduit ratings.

Call: 604-510-0800
or Email Us
for more information on High Output Alternator Solutions for Marine and RV
lithium battery spacer

A powerful 3,000 Watt Inverter-charger upgrade:

Lithionics Battery has worked dilligently with several respected and leading Inverter-Charger Manufacturers including Xantrex, OutBack Power, Victron Energy and more to understand their product and develop optimal firmware and software upgrades to optimize their charge algorithms for the Lithionics lithium-ion battery systems and NeverDie BMS.

Whether you have an RV, yacht, sailboat or Mercedes-Benz Sprinter van conversion, we can assist you in selecting the right inverter-charger, inverter or DC power converter for you.

Some of the high power Inverter-Chargers that we offer:

XANTREX INVERTER-CHARGERS
Xantrex Freedom XC PRO, Xantrex PROwatt, PROsine and Xantrex Freedom SW 3012 Inverter-Charger
Xantrex Inverter-Charger Pricing Below...

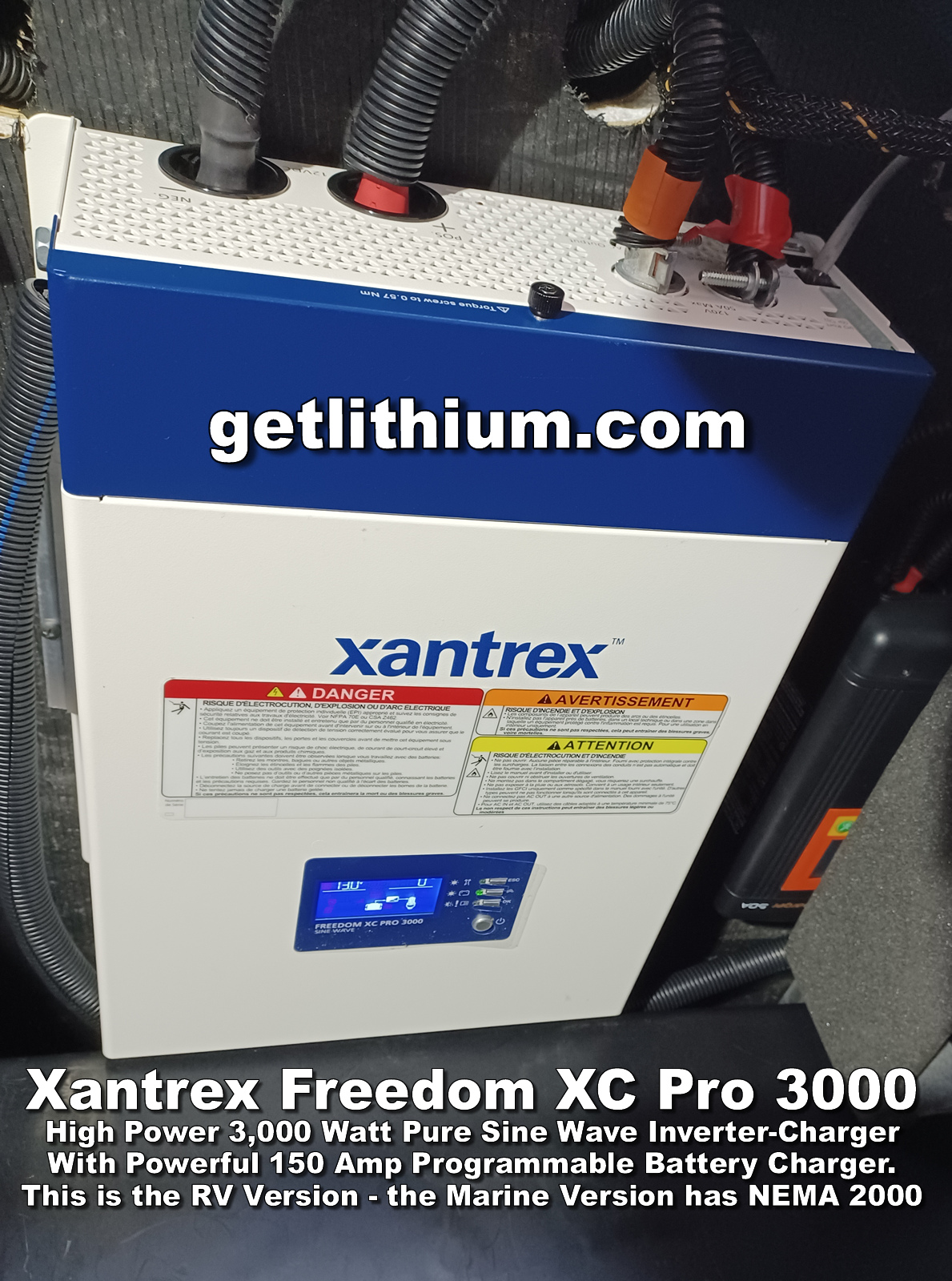

Xantrex Freedom XC PRO RV/ yacht powerful inverter-charger

Xantrex inverter-chargers including Freedom SW 3012 inverter-charger for RV and marine electrical installations

The Xantrex Freedom XC PRO 3,000 Watt inverter-charger is priced from $3,179.90 CAD* - remote Xantrex display is extra. Details below...

Xantrex inverter-chargers including Freedom SW 3012 inverter-charger for RV and marine electrical installations

Xantrex details below

VICTRON ENERGY
INVERTER-CHARGERS

Victron Multiplus and Quattro Inverter-Chargers and DC to DC Orion Converters
Victron Multiplus and Quattro inverter-chargers for RV and marine electrical installations

More Victron Energy Info on the Victron Page...

Call: 604-510-0800
or Email Us
for Victron equipment

Victron Orion DC to DC power converters and battery chargers for RV and marine electrical installations

MAGNUM ENERGY
INVERTER-CHARGERS

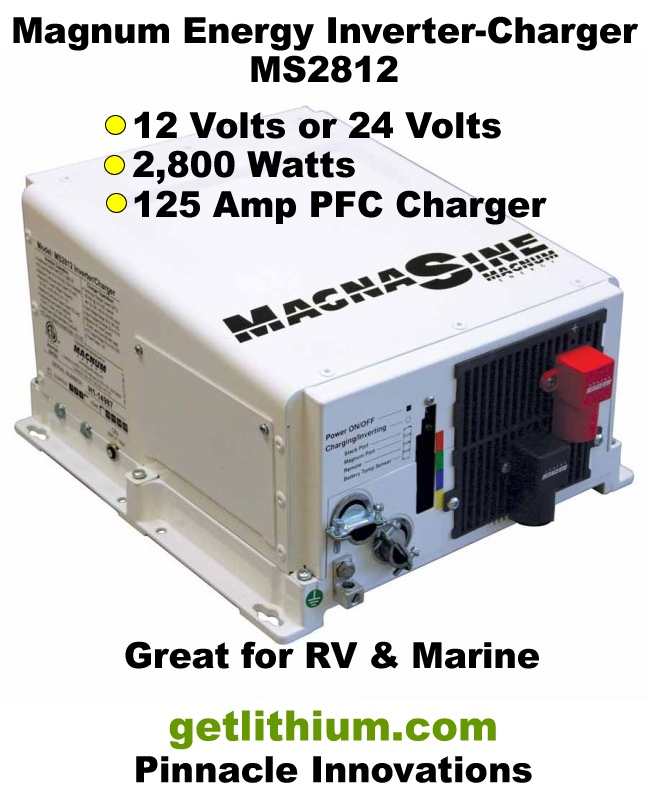

Magnum Energy Inverter-Chargers
Please note that some Clients have had issues with Magnum chargers and lithium batteries so we no longer sell them for Lithionics Clients. However, if you have one and an older Lithionics lithium-ion battery system the following information may be helpful for you:

To learn how to program your Magnum battery inverter, see Inverter Programming Guide for Magnum ME-MR or Inverter Programming Guide for Magnum ME-RC on the Frequently Asked Questions page . June 2019: click here for the latest Magnum Charger Programming Guide that modifies the CC/CV program.

Sample Magnum Energy MS Series inverter-charger grounding wiring diagram

Sample Magnum Energy MS Series inverter-charger grounding wiring diagram

OUTBACK POWER
INVERTER-CHARGERS

OutBack Power Inverter-Chargers

OutBack Power Price List Below...

OutBack Power inverter-chargers for RV, marine and off-grid electrical installations

OutBack Power "MATE" display control panel

Complete information and pricing on our OutBack page...

For More Information on Inverter-Chargers, a System Evaluation or to Order,
Call: 604-510-0800
or Email Us

Lithionics also endorses Wakespeed external Voltage regulators like the WS500 - which can also be controlled by the Lithionics NeverDie Battery Management System by using the Lithionics "Marine" 23 pin Ampseal connector and specifying "CANbus" on the BMS box order.

Wakespeed WS500 external 12 Volt and 24 Volt  alternator Voltage regulators.

See more details down this page...
lithium battery spacer

lithium battery spacer
High Output Alternators For RV and Marine:
Balmar High Output Alternators and Accessories
We offer a complete line of Balmar products (over 50) so if you don't see what you need, just call 604-510-0800 or email us.
Balmar heavy duty 12 and 24 Volt marine alternator generator systems



Model Number
Description
Discounted Price $CAD*
Click on images for a larger image
Balmar AT-DF-200-J10-KIT

Kit Includes: AT-DF-200-J10 Alternator, MC-614 external Voltage Regulator, Temperature Sensors and Mounting Hardware

AT Series Alternator: 200 Amps, 12 Volts, Saddle Mount (Dual Foot), 3.15", J10 Alt Mount Serpentine Pulley, Isolated Ground

Hitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman and Perkins-Sabre Engines

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$2,965.60

Balmar 200 Amp 12 Volt high output alternator kit
Balmar AT-DF-200-K6-KIT

Kit Includes: AT-DF-200-K6 Alternator, MC-614 external Voltage Regulator, Temperature Sensors and Mounting Hardware

AT Series Alternator: 200 Amps, 12 Volts, Saddle Mount (Dual Foot), 3.15", K6 Serpentine Pulley, Isolated Ground

Hitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman and Perkins-Sabre Engines

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$2,965.60

Balmar 200 Amp 12 Volt high output alternator kit
Balmar AT-DF-165-J10-KIT

Kit Includes: AT-DF-165-J10 Alternator, MC-614 Regulator, Temperature Sensors and Mounting Hardware

AT Series Alternator: 165 Amps, 12 Volts, Saddle Mount (Dual Foot), 3.15", J10 AltMount Serpentine Pulley, Isolated Ground

Hitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman and Perkins-Sabre Engines

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$2,529.90

Balmar 165 Amp 12 Volt high output alternator kit
Balmar AT-DF-165-K6-KIT

Kit Includes: AT-DF-165-K6 Alternator, MC-614 Regulator, Temperature Sensors and Mounting Hardware

AT Series Alternator: 165 Amps, 12 Volts, Saddle Mount (Dual Foot), 3.15", K6 Serpentine Pulley, Isolated Ground

Hitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman and Perkins-Sabre Engines

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$2,529.90

Balmar 165 Amp 12 Volt high output alternator kit
Balmar 60-YP-120-SR

BALMAR ALTERNATOR KIT 120A DUAL
120 Amps output.

Light-duty 6-Series Alternators are engineered to replace most OEM alternators on a wide variety of marine gasoline and diesel engines.

Kits include: alternator, ARS-5 regulator, alternator/battery temperature sensors and hardware kit.

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$1,797.70 CAD

Balmar 120 Amp alternator kit
Balmar 60-120-SR-IG

BALMAR ALTERNATOR 12V 120A DBL
12 Volts with 120 Amps output.

Light-duty 6-Series Alternators are engineered to replace most OEM alternators on a wide variety of marine gasoline and diesel engines.

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$1,387.69 CAD

Balmar 12 Volt 120 Amp alternator kit
Balmar 60-24-70-SR-IG

BALMAR ALTERNATOR 24V 70A DBL
24 Volts with 70 Amps output.

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).



$1,697.70 CAD

Balmar 24 Volt 70 Amp alternator kit
Balmar 604-24-70-DV

BALMAR ALTERNATOR 24V 70A
24 Volts with 70 Amps output. 4" Dual Foot Saddle Mount (J-180-style).

External Voltage Regulator parts sold separately.

6-Series Alternators
Designed for Recreational Applications

  • Balmar's Top Selling Alternator Line
  • 70A, 100A, 120A and 150A Versions
  • Patented Smart Ready Internal Regulator Technology
  • Dual Fan Cooling
  • High Airflow Frame
  • Maximum RPM: 12,000
  • USCG Title 33, ISO, SAE and CE Compliant
  • Ideal for Modest Charging Upgrades

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$ Contact Us for Price
604-510-0800 or Email Us

Balmar 24 Volt 70 Amp alternator kit

Click here for the Balmar alternator manual

Click on images for a larger image

Balmar 604-24-70-K6

BALMAR ALTERNATOR 24V 70A
24 Volts with 70 Amps output. 4" Dual Foot Saddle Mount (J-180-style).

External Voltage Regulator parts sold separately.

6-Series Alternators
Designed for Recreational Applications

  • Balmar's Top Selling Alternator Line
  • 70A, 100A, 120A and 150A Versions
  • Patented Smart Ready Internal Regulator Technology
  • Dual Fan Cooling
  • High Airflow Frame
  • Maximum RPM: 12,000
  • USCG Title 33, ISO, SAE and CE Compliant
  • Ideal for Modest Charging Upgrades
IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$ Contact Us for Price
604-510-0800 or Email Us

Balmar 24 Volt 70 Amp alternator kit

Click here for the Balmar alternator manual

Balmar 9504-12-210-IG

BALMAR 95 SERIES ALTERNATOR 12 Volts 210 Amps
12 Volts with 210 Amps output. 4" Dual Foot Saddle Mount (J-180-style). This is a large case alternator so please check your engine room to ensure you have room for this alternator.

Large frame alternators designed for mid-duty cycle applications. From world class ocean racers to commercial fishers and military patrol vessels, these large-frame alternators have a proven record for supporting large house battery banks and challenging electrical loads under some of the toughest marine conditions imaginable. 94-Series, 94LY-Series and 95-Series Alternators feature extra-large gauge custom wound stators and high Amperage diode packs to ensure optimal charging performance. 94-Series alternators deliver excellent low RPM output and terrific response throughout the power band.

NOTE: Also available in 165 Amp output. Use part number Balmar 9504-12-165-IG ($1,697.90 CAD)

External Voltage Regulator parts sold separately.

95 Series Alternators
Designed for Moderate Duty Applications

  • Deep Dual Vee Pulley*
  • Isolated Ground
  • 4" J-180-Style Mounting; Typical for Caterpillar, Cummins, Detroit Diesel & John Deere Engines
  • Extra Heavy Duty Windings, Diodes & Brushes
  • Isolated Ground Termination
  • Corrosion Resistant Powder Coated Finish
  • Bi-Directional Cooling Fans on 94-Series & 95-Series
  • Maximum RPM: 6,000
  • USCG Title 33 Ignition Protection Compliant

* Serpentine Pulley Mounted on Request. Part number 48-AM-39 with 2.7" diameter, 0.875" bore and 10 groove (J10) channel for serpentine belts.

$3,109.83 CAD
604-510-0800 or Email Us

Balmar 12 Volt 210 Amp alternator kit

Click here for the Balmar alternator manual

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

Balmar 9504-24-140-IG

BALMAR 95 SERIES ALTERNATOR 24 Volts 140 Amps
24 Volts with 140 Amps output. 4" Dual Foot Saddle Mount (J-180-style). This is a large case alternator so please check your engine room to ensure you have room for this alternator.

Large frame alternators designed for mid-duty cycle applications. From world class ocean racers to commercial fishers and military patrol vessels, these large-frame alternators have a proven record for supporting large house battery banks and challenging electrical loads under some of the toughest marine conditions imaginable. 94-Series, 94LY-Series and 95-Series Alternators feature extra-large gauge custom wound stators and high Amperage diode packs to ensure optimal charging performance. 94-Series alternators deliver excellent low RPM output and terrific response throughout the power band.

External Voltage Regulator parts sold separately.

95 Series Alternators
Designed for Moderate Duty Applications

  • Deep Dual Vee Pulley*
  • Isolated Ground
  • 4" J-180-Style Mounting; Typical for Caterpillar, Cummins, Detroit Diesel & John Deere Engines
  • Extra Heavy Duty Windings, Diodes & Brushes
  • Isolated Ground Termination
  • Corrosion Resistant Powder Coated Finish
  • Bi-Directional Cooling Fans on 94-Series & 95-Series
  • Maximum RPM: 6,000
  • USCG Title 33 Ignition Protection Compliant
* Serpentine Pulley Mounted on Request. Part number 48-AM-39 with 2.7" diameter, 0.875" bore and 10 groove (J10) channel for serpentine belts.

$3,109.83 CAD
604-510-0800 or Email Us

Balmar 24 Volt 140 Amp alternator kit

Click here for the Balmar alternator manual

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

Balmar 970414024IG

BALMAR 97 SERIES ALTERNATOR 24 Volts 140 Amps
24 Volts with 140 Amps output. 4" Dual Foot Saddle Mount (J-180-style).

External Voltage Regulator parts sold separately.

Built expressly for the added demands of large multi-battery banks, inverter loads and other substantial electrical demands, Extra-Large Case 97-Series Brushless Alternators provide the size, cooling and output across the range of engine RPM required to perform in league with a small genset.

  • Highly Efficient Brushless Design
  • Isolated Ground Termination
  • Bi-Directional Cooling Fan
  • Maximum RPM: 7,000
  • External Regulation
  • Required USCG Title 33, CE, ISO J1171 and SAE 8849 Compliant
IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$3,159.00 CAD
604-510-0800 or Email Us

Balmar 24 Volt 70 Amp alternator kit

Click on images for a larger image

Click on the image for a larger 97 Series Balmar spec sheet
Click on the image for a larger 97 Series Balmar spec sheet
Click on the image for a larger 97 Series Balmar spec sheet
Balmar 9704-24-140-BL-IG

BALMAR 97 SERIES ALTERNATOR 24 Volts 140 Amps
24 Volts with 140Amps output. 4" Dual Foot Saddle Mount (J-180-style).

External Voltage Regulator parts sold separately.

Built expressly for the added demands of large multi-battery banks, inverter loads and other substantial electrical demands, Extra-Large Case 97-Series Brushless Alternators provide the size, cooling and output across the range of engine RPM required to perform in league with a small genset.

  • Highly Efficient Brushless Design
  • Isolated Ground Termination
  • Bi-Directional Cooling Fan
  • Maximum RPM: 7,000
  • External Regulation
  • Required USCG Title 33, CE, ISO J1171 and SAE 8849 Compliant
IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$ Contact us for price
604-510-0800 or Email Us

Balmar 24 Volt 70 Amp alternator kit

Click on images for a larger image

Balmar 98-12-310-IG

BALMAR SP ALTERNATOR12V 310A DBL - 98 SERIES
12 Volts with 310 Amps output.

Built to provide performance in a league with an auxiliary genset, this alternator can deliver up to 5KW. This extra large case alternator features a brushless design which eliminates a critical wear point, increases ignition protection and delivers greater field efficiency. Includes a 4" J-180 saddle-style mount. Dual cooling fans help insure cooler operation. Isolated ground for installation on steel or aluminium boats.

Meets USCG Title 33, CE, SAE 8846 and ISO J-1171 ignition protection requirements.

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$7,797.70 CAD

Balmar 12 Volt 310 Amp alternator kit
Balmar 98-24-220-IG

BALMAR SP ALTERNATOR24V 220A DBL - 98 SERIES
24 Volts with 220 Amps output.

Built to provide performance in a league with an auxiliary genset, this alternator can deliver up to 5KW. This extra large case alternator features a brushless design which eliminates a critical wear point, increases ignition protection and delivers greater field efficiency. Includes a 4" J-180 saddle-style mount. Dual cooling fans help insure cooler operation. Isolated ground for installation on steel or aluminium boats.

Meets USCG Title 33, CE, SAE 8846 and ISO J-1171 ignition protection requirements.

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$7,797.70 CAD

Balmar 24 Volt 220 Amp alternator kit
Balmar Regulator: MC-614H

BALMAR Regulator: MC-614H (with wire harness)
The most advanced regulator available!

  • 7-Selectable charging programs
  • Alternator and battery (2) temperature sensing
  • Alpha-numeric LED display
  • Fully potted circuitry
  • User Adjustable advanced programing

Typically, more than 70% of the energy put into battery banks is generated while away from the dock. That's why it's essential to control your engine's alternator with the smartest, most powerful Voltage regulator available. 12 Volt and 24 Volt Max Charge regulators provide the ultimate combination of programmability and built-in charging intelligence to keep your batteries at their best. Add the benefits of automatic alternator and battery temperature sensing (optional sensors MC-TS-A and MC-TS-B are required) for even greater safety and control.

Important Note: Alternators output higher Amps and Voltage in cooler temperatures. When connecting the Balmar MC-614 external Voltage regulator to Lithionics lithium-ion batteries, if the outside temperature is say 22 Celsius or higher, we recommend setting the Voltage a little below the Lithionics maximum charging Voltage by a few percentage points.

Here are the Lithionics recommended charge settings:

lithium batteries spacerbattery spacer Charge 14.4 Volts - 14.6 Volts.
lithium batteries spacerbattery spacer Float 13.4 Volts.
lithium batteries spacerHigh Voltage Cutoff (HVC) 15.6 Volts.

On newer Balmar External Voltage Regulators, they do have a "Lithium-ion Battery" charge setting, which is acceptable for the Lithionics lithium-ion batteries.

Balmar suggest setting the alternator temperature to 90 degrees Fahrenheit.

Click here for the Balmar External Voltage Regulator Wiring Diagram PDF

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

Balmar Regulator: MC-624-H

BALMAR Regulator: MC-624-H
Regulator, MC624 Multi-Stage, 24 Volts, with Harness

Click here for the Balmar external Voltage regulator manual
Balmar MC-624-H Manual


Click here for the Balmar external Voltage regulator manual

Important Note: Alternators output higher Amps and Voltage in cooler temperatures. When connecting the Balmar MC-624 external Voltage regulator to Lithionics lithium-ion batteries, if the outside temperature is say 22 Celsius or higher, we recommend setting the Voltage a little below the Lithionics maximum charging Voltage by a few percentage points.

Here are the Lithionics recommended charge settings:

lithium batteries spacerbattery spacer Charge 28.8 Volts - 29.2 Volts.
lithium batteries spacerbattery spacer Float 26.8 Volts.
lithium batteries spacerHigh Voltage Cutoff (HVC) 31.2 Volts.

On newer Balmar External Voltage Regulators, they do have a "Lithium-ion Battery" charge setting, which is acceptable for the Lithionics lithium-ion batteries.

Balmar suggest setting the alternator temperature to 90 degrees Fahrenheit.

IMPORTANT INSTALLATION NOTES:
When installing this device on a high performance alternator that uses an external Voltage Regulator like the Balmar MC-614 or MC-624-H and a Perfect Switch POWER-GATE Dual Battery Isolator, we may need to connect the external Voltage Regulator's "Battery +" wire to the engine starting battery's positive post or to the "Main Battery" stud post on the Perfect Switch instead of the "Battery Positive + Post" on the alternator. The reason is that with the Perfect Switch dual isolator installed, the alternator's "Battery Positive + Post" does not have power until the Perfect Switch device is active and as a result the Voltage Regulator may not turn on as desired when cranking the engine. If possible, we recommend bench testing the alternator/ batteries and Perfect Switch system prior to installing on the vehicle. The best way is to follow the Alternator/ external Voltage Regulator's Installation Instructions but if the Regulator does not power up then try using this alternate wiring option of the Regulator's "B+" or "Battery Positive +" wire.

$792.90 CAD

Balmar 24 Volt external alternator Voltage Regulator kit


Click on images for a larger image

Click on the image for a larger FCC wiring diagram of the Balmar MC-624 external Voltage Regulator

Balmar MC-624 voltage regulator wiring layout

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).



Balmar Regulator: ARS-5

BALMAR Regulator: ARS-5
Regulator, ARS Multi-Stage, 12 Volts, without Harness

Part Number with Harness: ARS-5-H.

Important Note: Alternators output higher Amps and Voltage in cooler temperatures. When connecting the Balmar ARS-5 external Voltage regulator to Lithionics lithium-ion batteries, if the outside temperature is say 22 Celsius or higher, we recommend setting the Voltage a little below the Lithionics maximum charging Voltage by a few percentage points.

Here are the Lithionics recommended charge settings:

lithium batteries spacerbattery spacer Charge 14.4 Volts - 14.6 Volts.
lithium batteries spacerbattery spacer Float 13.4 Volts.
lithium batteries spacerHigh Voltage Cutoff (HVC) 15.6 Volts

IMPORTANT INSTALLATION NOTES:
When installing this device on a high performance alternator that uses an external Voltage Regulator like the Balmar ARS-5, MC-614 or MC-624-H and a Perfect Switch POWER-GATE Dual Battery Isolator, we may need to connect the external Voltage Regulator's "Battery +" wire to the engine starting battery's positive post or to the "Main Battery" stud post on the Perfect Switch instead of the "Battery Positive + Post" on the alternator. The reason is that with the Perfect Switch dual isolator installed, the alternator's "Battery Positive + Post" does not have power until the Perfect Switch device is active and as a result the Voltage Regulator may not turn on as desired when cranking the engine. If possible, we recommend bench testing the alternator/ batteries and Perfect Switch system prior to installing on the vehicle. The best way is to follow the Alternator/ external Voltage Regulator's Installation Instructions but if the Regulator does not power up then try using this alternate wiring option of the Regulator's "B+" or "Battery Positive +" wire.

$561.90 CAD

Balmar 12 Volt external alternator Voltage Regulator kit

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

Balmar CenterFielder II

Centerfielder II Dual Alternator Charge Balancer

The Centerfielder II balances twin-engine charging systems by monitoring port and starboard voltage regulators. When both alternators and voltage regulators are working, the Centerfielder II automatically splits field output from the dominant regulator to both alternators, making it possible to charge a single house battery bank with the combined output of both alternators. Use only with BALMAR Max Charge MC-612, MC-614, or MC-624 Voltage regulators. Do not install in systems utilizing internally regulated alternators.

  • Balances charging in twin engine applications
  • Works in 12 and 24 Volt applications
  • Isolates alternators and regulators when only one engine is running
  • Provides field current from a single regulator to both port and starboard alternators when both engines are in operation
  • Fused 12 ga. power wires (2) w/15A ATC fuse included
$461.90 CAD

Balmar CenterFielder II 12 Volt/ 24 Volt dual alternator balancer
Balmar 684-UAA

Universal Adjustment Arm

Many installers rely on the Universal Adjustment Arm (UAA) for alternator installations. Precision cut and powdercoated for protection from rust and corrosion.

Universal Adjustment Arm for the Belt Buddy. This part number is for the "Arm Only". It does not come with the Belt Buddy Adjustment Mechanism. The Belt Buddy Mechanism which goes with the UAA is part number BB, grouped together the set is part number UBB. The Belt Buddy Mechanism which goes with most any adjustment arm is part number BBU. The UAA is 10.3" long and the adjustment slot provides up to 4.5" of travel. The adjustment slot is 0.53" wide.

$53.99 CAD

Balmar alternator universal adjustment arm kit kit

Click on images for a larger image

Balmar 684-UBB

Universal Adjustment Arm

This is the complete assembly (UBB =UAA + BB), designed for adjusting belt tension and providing a positive stop for no slipping. Includes the Belt Buddy draw clamp.

Belt Buddy Kit: Includes the Universal Adjustment Arm (UAA) and Belt Buddy Mechanism (BB). To utilize only the adjustment mechanism with an existing adjustment arm, purchase part number BBU. Caution: This approach sacrifices some "travel" in the existing adjustment arm so the BBU mechanism can be anchored to the arm. Make certain your alternator mounting does not need this travel before purchasing the BBU.

$117.98 CAD

Balmar alternator universal adjustment arm kit kit
Balmar 684-MC-TS-B

Temperature Sensor, Battery 20 ft Length

$91.98 CAD

Balmar battery temperature sensor cable kit

Click on images for a larger image
Balmar 684-MC-TS-A

Alternator Temperature Sensor, 54" Length

$73.98 CAD

Balmar alternator temperature sensor cable kit
battery site spacerbattery site spacerbattery site spacer
lithium battery spacer
Nations High Output Alternators and Accessories
Nations high output alternators for Mercedes, Dodge, GM and more
We offer the complete line of Nations Alternator products so if you don't see what you need, just call 604-510-0800 or email us.
Shown below are just a few of the more popular models for Van Conversions.
Model Number
Description
Nations Alternator Price $USD*
Nations NSA-DPM-3.6-270XP

270 Amp High Output Alternator for 2014-UP Dodge ProMaster Work & Cargo Van 3.6L

The XP Series high-output alternators are designed for incredible durability and performance under any circumstance. Before releasing to the general public, Nations has put the 270 Amp XP series alternator through vigorous testing on the 3.6L V6 Pentastar engine to ensure that they hold up to our strict standards. All of our alternators come standard with our 2-year warranty. If you're looking for a significant overall increase in top end and idle output, the XP series alternator is your solution to your needs.

2/0 cable kit upgrade available - add $108.00 USD.

Warranty: Full 2 years included
5 years Warranty available (add $120.00)

$849.95 USD

Nations high output alternator for Dodge vans - click for larger image
IMPORTANT INFORMATION FOR MERCEDES-BENZ SPRINTER VAN OWNERS (& RV OWNERS WITH THE SILVERLEAF SYSTEM):

Some customers may want to keep the OEM (originally installed) Mercedes alternator instead of upgrading to a high output Nations Alternator. There are several critical limitations of the OEM Mercedes alternator - including that Mercedes does not permit greater than 40 Amps of current going to battery charging as well as the fact that these alternators do not offer a float Voltage of 13.8 Volts.
Sterling Power Battery-to-Battery Chargers

As of January 2021, we no longer recommend connecting a vehicle or boat motor's alternator directly to a Lithionics Battery if the alternator does not have a Wakespeed or Balmar external Voltage regulator that offer proper multi-stage charging. Instead, you can choose one of the Sterling Power battery to battery chargers that would connect to your engine start battery and then recharge the Lithionics Battery when the engine runs. The Sterling products have an ignition sense wire so it will only run when the engine runs.

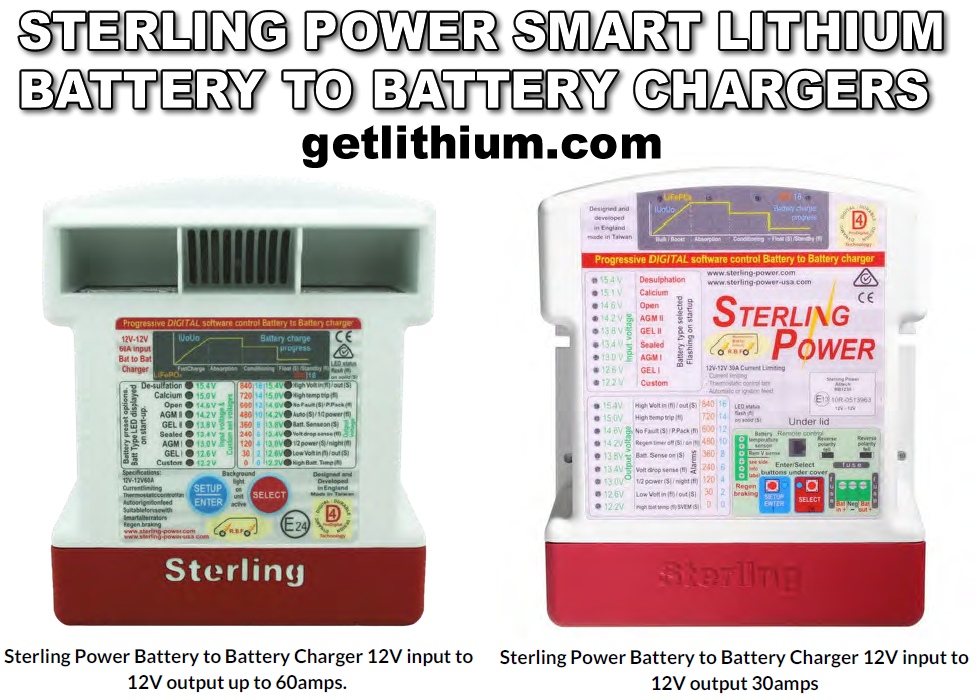

Click here for a larger image of the Sterling Power battery to battery DC charger
Click here for a larger image of the Sterling Power battery to battery DC charger
Sterling Power BB1230 12 Volt to 12 Volt DC battery to battery charger. 30 Amps output.
Price: $406.64 USD
Sterling Power BB1260 12 Volt to 12 Volt DC battery to battery charger. 60 Amps output.
Price: $542.64 USD
battery site spacer
battery site spacer
Click here for a larger image of the Sterling Power battery to battery DC charger
Sterling Power BB242435 24 Volt to 24 Volt DC battery to battery charger. 35 Amps output.

Summary Sterling Power BB1230 12 Volt to 12 Volt DC battery to battery charger "Custom Charge Profile Programming Instructions" for the Lithionics 12 Volt, 315 Amp hour GTX internal BMS battery:

  • Step 1: Connect the Sterling Device to a 12 Volt power source/ battery with appropriate fuse.
  • Step 2: Remove the access cover at the bottom of the charger to expose the two programming buttons. Note: Do not quickly press the selection buttons as they are a bit slow to respond.
  • Step 3: Press and hold down both buttons for between 10 and 20 seconds - we recommend 15 seconds.
  • Step 4: This override all factory settings and allow us to use the "Custom Settings". With the right button press it to move the illuminated LED all the way down to the bottom which is a hard to see faint red LED "Custom" position.
  • Step 5: Press both buttons for 1 second.
  • Step 6: Now we set the bulk/ absorb charge Voltage. Press the right button until the two LEDs labelled 14.6 and 14.2 Volts are illuminated (LEDs #18 and 19). This position indicates our desired Voltage of 14.4 Volts. Press both buttons for 1 second to lock it in.
  • Step 7: Using the right button, navigate to the LED # 20 that says 13.8 Volts. Press both buttons for 1 second. This sets an intermediary float Voltage.
  • Step 8: Use the right button to illuminate the LED # 6 labelled 13.4 Volts. This is the float Voltage that we want. Press both buttons for 1 second to lock it in.
  • Step 9: Now we need to set the minimum absorption time. Use the right button to scroll to LED #4 (LED 22) = 120 minutes. Press both buttons for 1 second to lock it in.
  • Step 10: Now we set the maximum absorption time. Use the right button to select 360 minutes which is LED #8. Press both buttons for 1 second.
  • Step 11: If you like, in this step you can program the low temperature shutoff function of the Sterling Charger. For the Lithionics batteries we suggest that you set this to +3 or +4 Celsius. This will turn off the Sterling Charger in cold and very cold temperatures so that it does not trigger the Lithionics Battery cold temperature intervention that will shut off power to the Lithionics Battery if there is battery charging detected and the battery is at or below 0 Celsius.
  • We are now done and the green LEDs should flash and the device should beep and reboot.
  • NOTE: The buttons are a little tricky to work with so we suggest programming the unit on a workbench and you may have to go through the process a couple times. Click on the PDF logo below for a copy of the instructions.
Click on the PDF logo for a copy of the instructions.
Click here for the charger instructions and wiring diagram

The Sterling Battery to Battery DC Chargers can be "Stacked" or Parallel-Connected to double or triple the charging current - as long as you alternator/ source battery can support this. Visit our Contact Us page to contact us about the Sterling Power chargers and check out the Custom Programming video below:

Click on the link to see the brief setup video for the Sterling chargers...

Click on the link to see the brief setup video for the Sterling Chargers...

Visit our Contact Us page to contact us about the Sterling Power chargers.

Click here for a larger image of the LED reference chart

Click here for a larger image of the LED definitions

Click here for a larger image of the Sterling Power battery to battery DC charger

NOTE: Pinnacle Innovations has found that the Victron Orion Smart DC to DC Chargers are much easier to install and set up. Visit the Victron Energy page for more details...

Nations 12385-280-07-UP

2007-2018 Mercedes Sprinter Van 280 Amp Alternator 3.0L Diesel

280 Amp Sprinter Alternator Fits 2007-On Vehicles with 3.0L Mercedes Diesel. This Alternator is the solution to the underpowered electrical sytem for Sprinter Vans needing more power through all rpm ranges. This durable unit is a direct fit and computer compatible. The most powerful Sprinter Van Alternator available from Nations.

280 Amp Sprinter Van Alternator Overview:

  • Rated Voltage: 14 Volts
  • Rated Output: 280 Amps
  • Idle Output: 200 Amps
  • Stator: Ultra High Efficiency six phase high output
  • Rotor: Precision balanced OEM high output
  • Rectifier: 12, 75 amp diodes special high efficiency aluminum heat sinks
  • Voltage Regulator: OEM manufactured
  • Weight: 20lbs

2/0 cable kit upgrade available - add $108.00 USD.

Warranty: Full 2 years included
5 years Warranty available (add $120.00)

$1,037.98 USD*

Nations high output alternator for Mercedes Sprinter vans - click for larger image
Nations SPRINTER-DAK-280XP

Mercedes Sprinter Van Dual Alternator Kit with 280XP High Amp Alternator (2007-UP 3.0L Diesel)

Why run dual alternators?
What if you had a separate charging system dedicated to the additional accessory load? By running dual alternators you can do just such a thing, and doing so leaves the factory charging system intact doing what it was intended to do, running the vehicle while the secondary alternator carries the additional accessory load. By effectively doubling the available amperage of the vehicle, you can run more accessories with less worry and all for about the same cost as a single high quality High Output alternator.

We are very proud to say, this dual alternator kit is 100% designed and manufactured in the USA!

Alternator kit comes with:

  • Complete Dual Alternator mounting bracket and parts with complete Installation Instructions
  • 280XP High Amp Alternator (produces 200 amps at idle)
  • OEM High Quality Mercedes Parts
  • Runs Alternator with approved Mercedes Benz parts
  • Reliability tested in field for years
  • *You can add a Balmar MC-614 External Voltage Regulator to your package to gain more optimal performance. Note: If you are using Lithium Batteries, this is a requirement. MC-614 price when ordered with Nations alternator: $479.94 USD.

$1,919.94 USD*

Nations high output alternator for Mercedes Sprinter vans - click for larger image

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

Nations TRANSIT-11271-300XM

11271-300XM High Amp Alternator for Ford Transit Van 3.5L & 3.7L Gas Engines

The Large Case Denso Hairpin 300 Amp XM series high output alternator is a component of a next generation high efficiency, severe duty charging system specifically engineered for Nations Starter and Alternator. This system consists of a 300 Amp alternator and internal regulator. The alternator produces a maximum of 300 Amps and will produce a minimum of 170 Amps continually at low idle speeds and maximum output above 1800 engine RPM. The alternator has a maximum efficiency in excess of 75 percent. The rectifier is mounted onboard the alternator and consists of 12 50 Amp press fit diodes. The brush holder assembly and slip ring are environmentally protected and the bearings are heavy-duty, oversized premium bearings. The alternator housings are precision-machined cast aluminum and all components are of OEM quality. All major components being carefully chosen for maximum performance and reliability.

The Large Case Denso Hairpin 300 Amp XM series alternator is specially designed to mount directly in the OEM mounting location with no modification. All electrical connections shall be in the original locations. The alternator features a custom machined drive pulley for increased output at idle speeds and retains OEM belt length. The pulley is 6 Groove Hard Anodized 6061 Billet Aluminum and hard anodized coating for wear resistance and durability.

Outputs 190 Amps at idle.

Powdercoat or anodized colour options available at extra cost.

2/0 cable kit upgrade available - add $108.00 USD.

Warranty: Full 2 years included
5 years Warranty available (add $120.00)

$839.94 USD*

Nations high output alternator for Ford Transit vans - click for larger image

We have installed one of these successfully on our customer's 2016 Ford Transit with 3.7 liter engine and 24 foot RV body. Details...



Nations FMK4892V-8WP

This is one of Nations Alternator's latest high output alternator upgrades for Ford F-Series trucks - such as the 2018 F350 with 6.2 liter gas engine.

Everything that you need is included in this kit including the brackets, new water pump, pulleys and of course the 280 Amp high output XP second alternator, Balmar MC614 external Voltage regulator etc.

This kit allows you to use the existing alternator and OEM wiring for the truck's OEM power requirements and dedicate this second alternator to recharging things like a lithium-ion house battery system in the vehicle or in the RV trailer or camper.

Click here for the Installation Guide

Click here for the Nations Alternator Installation PDF guide

IMPORTANT: If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

$2,399.90 USD*

Click here for a larger graphic of the Nations 280 Amp Ford F-Series truck high output alternator

Click on the image for a larger pic.

Nations 11532-300XP

This is one of Nations Alternator's latest high output alternator upgrades for Ford F-150 Series trucks. It outputs up to 300 Amps and is plug and play to replace the existing OEMalternator.

NOTE:
We have 1 customer with a very lightly used alternator that has approx. 400 miles on it. He bought this alternator for his new 2017 Ford F-150 pickup truck but when he went to tow his big RV trailer from Colorado to Las Vegas he learned he needed the Ford F-350 truck. He is asking $500.00 USD or best offer. Please contact David with Pinnacle Innovations at 604-510-0800 or at siteinfo@shaw.ca and we can connect you with this customer.

$839.90 USD*

Click here for a larger graphic of the Nations 300 Amp Ford F-Series truck high output alternator

Click on the image for a larger pic.

Nations Cable Kit Upgrade

Universal 2/0 cable kit upgrade available

$108.00 USD*

Nations high output alternator kit cable upgrade kit - click for larger image
Balmar Regulator: MC-614

BALMAR Regulator: MC-614
The most advanced regulator available!

  • 7-Selectable charging programs
  • Alternator and battery (2) temperature sensing
  • Alpha-numeric LED display
  • Fully potted circuitry
  • User Adjustable advanced programing

Typically, more than 70% of the energy put into battery banks is generated while away from the dock. That's why it's essential to control your engine's alternator with the smartest, most powerful Voltage regulator available. 12 Volt and 24 Volt Max Charge regulators provide the ultimate combination of programmability and built-in charging intelligence to keep your batteries at their best. Add the benefits of automatic alternator and battery temperature sensing (optional sensors MC-TS-A and MC-TS-B are required) for even greater safety and control.

IMPORTANT INSTALLATION NOTES:
When installing this device on a high performance alternator that uses an external Voltage Regulator like the Balmar MC-614 or MC-624-H and a Perfect Switch POWER-GATE Dual Battery Isolator, we may need to connect the external Voltage Regulator's "Battery +" wire to the engine starting battery's positive post or to the "Main Battery" stud post on the Perfect Switch instead of the "Battery Positive + Post" on the alternator. The reason is that with the Perfect Switch dual isolator installed, the alternator's "Battery Positive + Post" does not have power until the Perfect Switch device is active and as a result the Voltage Regulator may not turn on as desired when cranking the engine. If possible, we recommend bench testing the alternator/ batteries and Perfect Switch system prior to installing on the vehicle. The best way is to follow the Alternator/ external Voltage Regulator's Installation Instructions but if the Regulator does not power up then try using this alternate wiring option of the Regulator's "B+" or "Battery Positive +" wire.

$479.94 USD* when ordered with a Nations Alternator

Balmar 12 Volt external alternator Voltage Regulator kit


IMPORTANT:
If you will need a Perfect Switch POWER-GATE rectifier isolator and a Balmar External Voltage Regulator connected in the system please advise so that we can program the Perfect Switch device's trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

Wakespeed  external 12 Volt and 24 Volt  alternator Voltage regulators.
Wakespeed WS500 external Voltage regulators

Lithionics also endorses Wakespeed external Voltage regulators like the WS500 - which can also be controlled by the Lithionics NeverDie Battery Management System by using the Lithionics "Marine" 23 pin Ampseal connector and specifying "CANbus" on the BMS box order.

Wakespeed WS500 external 12 Volt and 24 Volt  alternator Voltage regulators.

Additional Wakespeed Parts that you may need for the WS500 external Voltage regulator include:

  • WSPH Wakespeed Standard Positive P-Type Wiring Harness. Part number: WSPH $91.55 USD
  • WSTHREEMTHERM 3MTHERMISTOR. Part number: WS500-BT15. $50.74 USD Wakespeed Battery Temp Sensor (3 meter length).
  • .3M THERMISTER WS500 AT01 Part number: WS.3MTHERM. $40.55 USD Wakespeed Alternator Temp Sensor (0.3 meter length).
Wakespeed WS3000R Bi-Directional/ DC to DC Energy Management external Voltage regulators

Wakespeed WS3000R bi-directional DC to DC Energy Management System capable of charging two different battery banks from 1 alternator from 12 Volts to 48 Volts including if one of the two battery banks is a Lithionics Battery lithium-ion battery.
NOTE: The WS3000 is not currently configured for use with two Lithionics battery systems as it can only deal with one BMS input signal. The WS3000 can be used with a Lithionics system if one of the battery banks is a conventional lead-acid/ AGM battery chemistry.

Wakespeed WS3000 bi-directional DC to DC Energy Management System capable of charging two different battery banks from 1 alternator from 12 Volts to 48 Volts including lithium-ion batteries.

You can use a single 12 Volt, 24 Volt or 48 Volt alternator with the Wakespeed WS3000 to charge two different Voltage battery banks. The WS3000 will boost or buck the Voltage of the alternator to permit charging the second battery system.

High Energy systems combine the benefits of lower cost, faster charging, and more real-world power availability - but, up until now, they have been difficult to integrate into existing marine and mobile systems.

Wakespeed's new WS3000 delivers a powerful solution for managing high-energy, multi-Voltage systems.

By combining an ultra-efficient bi-directional 3kW buck/boost DC-DC converter, with the proven intelligence and CAN enabled connectivity of the WS500 circuitry, the WS3000 makes it possible to seamlessly transfer up to 3,000 Watts from alternator to batteries, or from battery to battery to confidently handle multiple Voltage loads.

Like the WS500 Advanced Alternator Regulator, the WS3000 Energy Management System enables users to communicate with J1939/RV-C based CAN enabled BMS systems, along with legacy-based control for non-CAN enabled LiFeP04 battery banks.

The WS3000 provides support for 12V/24V, 12V/48V, and 24V/48V mixed Voltage systems, and can be used to control an externally regulated, high-output alternator.

  • Charge higher voltage batteries utilizing existing chassis electrical system.
  • On demand supplemental chassis electrical system power to support surge loads without cost of additional batteries.
  • Replace existing chassis alternator with higher energy unit and transparently support legacy chassis power bus.
  • J1939/RV-C based CAN support for system and BMS integration.
  • Compatible with additional WS500 controlled alternators installed in the same system.



Wakespeed WS100 multistage Voltage regulators

The Wakespeed WS100.

Wakespeed WS100 external 12 Volt and 24 Volt  alternator Voltage regulators.

Wakespeed WS100 Multi-Stage Voltage Regulator Designed by smart regulation pioneer Michael Frost, Wakespeed's WS100 regulator takes twenty-plus years of smart regulation know-how, and distills it into a simple, user-friendly regulator that's extremely capable yet simple enough to make the recreational boater happy - at a package price that's sure to please the most budget-conscious customer.

Simple, Confusion-free Programming
Configuring the WS100 voltage regulator doesn't require an engineering degree or a contortionist with a magnet to find the right program for your batteries. Five intelligent programs based on the most popular marine battery technologies are accessible with the twist of a knob. Programs provide proven profiles for standard and deep cycle flooded batteries, gelled silica batteries, standard (low voltage) AGM, Carbon Foam (Firefly) and high-density AGM and TPPL battery technologies.

Four Useful Field Reduction Levels
The WS100 provides four "on the fly" field output levels; 100%, 90%, 75% and 50% settings to respond quickly to belt dusting or low RPM engine loading. The regulator will deliver 100% output under normal conditions, but if the situation requires, the user can simply twist a knob while underway to reduce the horsepower load on the engine and belt. When full power is required, simply twist the knob and full output is available.

All In One Simple Package
The WS100 regulator comes pre-packaged with all of the needed components to provide smart regulation with protection for both the alternator and batteries. The kit, designed for use with P-type, externally regulated 12 Volt alternators, includes the regulator, wiring harness with 10A inline fuse, along with alternator temperature sensor cable and battery temperature sensor cable. Temp sensors are color coded to ensure simple, non-confusing installation. How easy is that?

From $319.95 USD*

Contact us for Wakespeed WS100 and specify if you have a 12 or 24 Volt system.

WS100FRDPLG
Adapts WS100 Superseal Connector to female Ford style wiring harness for $19.95 USD

battery site spacer battery site spacer battery site spacer

DC Power Solutions High Output Alternators and Accessories For Marine and RV
DC Power Solutions 180 Amp 14 Volt alternator with Balmar MC-614 external Voltage regulator and custom cooled combiner box for high output 150 HP Volvo-Penta diesel marine engine alternator

We offer the complete line of DC Power Solutions Custom Alternator products so if you don't see what you need, just call 604-510-0800 or email us.
There are dozens of solutions to choose from for most popular marine/ yacht applications.

Model Number
Marine Grade Alternator Description
Contact us for a Quote
604-510-0800
DC Power Solutions Stage One Premier Small Frame Alternator

Our 100, 120, 140, 160, 180, and 220 amp small frame marine alternators are available in a one-inch foot mount, two-inch foot mount, and 3.15" SADDLE mount configuration. All alternators come with a 14.2 volt internal regulator, a D+ connection, and external field connections. NOW AVAILABLE WITH NEGATIVE FEED FIELD upon request. It is highly recommended that 160, 180, and 220 amp alternators are used with our remote rectifier for continuous high output, especially when used with lithium batteries. All alternators are built and tested in Eliot, Maine USA.

Please see Alternator Installation Notes and a Link to a DC Power Solutions Installation Article below...


DC Power Solutions high output alternator for marine engines - click for larger image
DC Power Solutions Stage Two Premier J-180 Large Frame Alternator

Our 12 volt 250 Amp alternator is available in a J-180 mount and in a four point pad mount. These alternators have oversized internals and externals. At idle this alternator will output 140 Amps! There is a 24 Volt model available that will output 85 Amps at idle and 110 Amps at full output. They can run all day at idle without any issue of overheating! All Stage Two alternators come with a 14.1 (28.2) Volt internal regulator, a D+ connection, and external field connections. NOW AVAILABLE WITH NEGATIVE FEED FIELD upon request. There are serpentine pulley kits for the most common marine engines available below to drive this alternator. All alternators are constructed and tested in Eliot, Maine USA.

Please see Alternator Installation Notes and a Link to a DC Power Solutions Installation Article below...


DC Power Solutions high output alternator for marine engines - click for larger image

Contact us for a Quote
604-510-0800

DC Power Solutions Stage Three Pad Mount Alternator

12 Volt 420 Amp, 24 Volt 250 Amp, and 24 Volt 275 Amp BRUSHLESS marine alternator comes with a three year limited warranty. Due to precise manufacturing and it's brushless design this alternator has an efficiency rating of 80%. One of the highest in the industry. All alternators come with a 14.0 (28.0) Volt internal regulator, a D+ connection and external field connections. Due to the pad mount system this alternator needs to be fix mounted to the engine. Belt tension is then maintained by a mechanical spring loaded tensioner sold separately.

Please see Alternator Installation Notes and a Link to a DC Power Solutions Installation Article below...



DC Power Solutions high output alternator for marine engines - click for larger image

Contact us for a Quote
604-510-0800

Additional DC Power Solutions products available including pulley/ serpentine belt kits and custom Voltage regulators/ remote rectifiers. Contact us for more info 604-510-0800.

Alternator Installation Notes:

1. Alternator pulley alignment and belt tension are critical. We recommend the use of a machinist's straight edge on all installations to ensure that all of the pulleys on the alternator belt system are precisely aligned within 0.5mm or 0.015". If your alternator belt is is fraying/ breaking the most likely cause will be improper alignment of the pulleys or overtightened belt tension. Overly tigh belts can also prematurely wear out bearings in the pulley system. In addition to the use of a machinist's straight edge, please be sure to use a torque wrench on all bolts in the system to the specifications shown in the instructions. If you find that the belt is squealling the belt tension may be a bit too loose. If you see the belt excessively "slapping" or "wiggling" between any 2 pulleys this can indicate that there is a pulley alignment issue.

2. Marine alternator installations can be tricky and we definitely recommend that you use a qualified/ experienced marine technician to install high output alternators.

3. We have found that some marine engine manufacturers have on occasion changed or modified the engine front covers mid-way through production of the engines. This can create an issue with properly aligning the DC Power Solutions alternator idler plate/ alternator or other parts. Thus far we have only found that this happened on one occasion with a client's Yanmar diesel engine. Should this be the case on your installation we may need to provide you with:

  • Longer mounting bolts
  • Longer bolt standoff spacers (aluminum)
  • A variety of stainless steel shim washers ranging from 0.023" to 0.032" thickness (less than 1mm thick).

We have found a client that has posted a great article on his DC Power Solutions Alternator Installation. Click here for the article...

Inverter-Chargers by Xantrex and Victron Energy For Use With Lithionics Battery Lithium-Ion Batteries:
Xantrex Inverter-Chargers and Xantrex Inverters
Made by Schneider Electric/ Xantrex
Model Number
Description
Price $CAD or $USD*

Xantrex 8183010 Freedom XC Pro Inverter/Charger, 3,000 Watts
P/N:
8183010

Click here for the Xantrex PDF datasheet
Xantrex Freedom XC PRO Datasheet

Xantrex 8183010 Freedom XC Pro Inverter/Charger, 3,000 Watts with 150 Amp programmable battery charger.

A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 150 Amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4F (-20C) to 104F (40C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

  • Built-in communications card
  • Highly configurable for a variety of applications
  • Ability to charge dead batteries down to 0V
  • Designed to charge lithium ion batteries
  • On-board 150 Amp battery charger can be programmed to output anywhere from 5 Amps to 150 Amps of battery charge current.
  • Exceptional 5 second power surge for motor loads
  • Built-in 50A transfer relay
  • Transfer Relay AC Current Rating: 50 A surge, 40 A continuous
  • DC Nominal Current at Full Load: 304 Amps DC
  • Operating Input AC Pass-Through Voltage Range 85-140 VAC
  • Operates on 10.1 to 18 Volts DC (default Low Battery Cutoff is 10.5 Volts DC)
  • Programmable 120 Volt AC output (for limiting inverter power to say 2,500 Watts etc. - in increments of 100 Watts)
  • L x W x H (with flanges) 16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm)
  • Weight: 18.6 pounds (8.4kg)
IMPORTANT: Please make sure that there is at least 5" of free air space at the fan end of the unit, allow at least 1" air space all around and at least 2" at the wiring access end. This will assist air flow and cooling of the inverter-charger.

Optional Bluetooth equipped Display and inverter-charger control panel
Xantrex Bluetooth remote display/ inverter-charger control panel


Click here for the Xantrex PDF datasheet
Xantrex Display Datasheet

PART #808-0817-02

$193.50 CAD

Our Discounted
Price is
$3,179.90 CAD
*
(MSRP is $3,443.79 CAD)

Xantrex Freedom XC PRO RV/ yacht powerful inverter-charger



Click here for the Xantrex PDF Owner's Guide and Manual

Xantrex Freedom XC PRO Owner's Guide/ Manual

Xantrex Freedom XC PRO RV/ yacht powerful inverter-charger

Old colour scheme shown above

Xantrex 8182010 Freedom XC Pro Inverter/Charger, 2, 000 Watts
P/N:
8182010

Click here for the Xantrex PDF datasheet

Xantrex Freedom XC PRO Datasheet


Xantrex 8182010 Freedom XC Pro Inverter/Charger, 2,000 Watts with 100 Amp programmable battery charger.

A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 Amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4F (-20C) to 104F (40C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

  • Built-in communications card
  • Highly configurable for a variety of applications
  • Ability to charge dead batteries down to 0V
  • Designed to charge lithium ion batteries
  • On-board 80 or 100 Amp battery charger can be programmed to output anywhere from 5 Amps to 100 Amps of battery charge current.
  • Exceptional 5 second power surge for motor loads
  • Built-in 50A transfer relay
  • Transfer Relay AC Current Rating: 30 A surge, 24 A continuous
  • DC Nominal Current at Full Load: 192 Amps DC
  • Operating Input AC Pass-Through Voltage Range 85-140 VAC
  • Operates on 10.1 to 18 Volts DC (default Low Battery Cutoff is 10.5 Volts DC)
  • Programmable 120 Volt AC output (for limiting inverter power to say 1,500 Watts etc.)
  • L x W x H (with flanges) 16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm)
  • Weight: 17.1 pounds (7.76kg)

IMPORTANT: Please make sure that there is at least 5" of free air space at the fan end of the unit, allow at least 1" air space all around and at least 2" at the wiring access end. This will assist air flow and cooling of the inverter-charger.

Optional Bluetooth equipped Display and inverter-charger control panel
Xantrex Bluetooth remote display/ inverter-charger control panel


Click here for the Xantrex PDF datasheet
Xantrex Display Datasheet

PART #808-0817-02

$193.50 CAD

$2,387.00 CAD*

Xantrex Freedom XC PRO RV/ yacht powerful inverter-charger



Click here for the Xantrex PDF Owner's Guide and Manual


Xantrex Freedom XC PRO Owner's Guide/ Manual

Xantrex Freedom SW 3012 AND Xantrex System Control Panel 809-0921

Xantrex Freedom SW 3012.
A powerful 12 Volt DC inverter-charger with 3,000 Watts continuous output at 120 Volts AC (6,000 Watts peak). Powerful 150 Amp battery charger and separate AC Inputs/ Output.

A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time.

Unit dimensions: 13.5" x 15.25" x 7.75" tall. Weight: 73.7 pounds. Can be mounted flat (table top style) or vertically with the control buttons facing up.

Simple and easy to install. See one installed on our Installations Page.

Also available in a 2,000 Watt model Fredom SW 2012. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements. The Xantrex Fredom SW 2012 2,000 Watt inverter-charger also measures 13.5" x 15.25" x 7.75" tall. Can be mounted flat (table top style) or vertically with the control buttons facing up.



Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output*.
NOTE: We can only "stack" the exact same Xantrex models - we cannot stack say the SW3012 and the SW2012.

* AC source must be split phase, requires Stacking Cable (part# 808-9005)

2 year warranty.

Xantrex Customer User Guide

Click here for the Xantrex PDF guide

Email us or call 604-510-0800 for more information

Click here for the Xantrex SW3012 Programming Guide PDF



$2,439.70 USD*
Price includes Xantrex System Control Panel and Lithionics Factory Programming and Testing with your Lithionics Battery System

Also available direct from Pinnacle Innovations for non-Lithionics battery projects from $2,960.70 CAD*.

Xantrex Freedom SW 3012 inverter-charger - click for a larger image

Lithionics Programming Guide

Click here for the Xantrex PDF guide


Typical RV wiring diagram

Xantrex Installation Guide

Click here for the Xantrex PDF guide

Xantrex Freedom SW series remote display for inverter-chargers

Xantrex System Control Panel
Featuring a graphical, backlit LCD screen, the System Control Panel (SCP) can monitor the Freedom SW Inverter/Charger and other devices connected to the Xanbus network.
Can be purchased separately for $379.90 CAD*

Xantrex Freedom SW 2012 AND Xantrex Remote System Control Panel

Xantrex Freedom SW 2012.
A powerful 12 Volt DC inverter-charger with 2,000 Watts continuous output at 120 Volts AC (4,000 Watts peak). Powerful 100 Amp battery charger and separate AC Inputs/ Output.

A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time.

Unit dimensions: 13.5" x 15.25" x 7.75" tall. Weight: 60.5 pounds. Can be mounted flat (table top style) or vertically with the control buttons facing up.

Simple and easy to install. See the similar 3,000 Watt version installed on our Installations Page.

Approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements. The Xantrex Fredom SW 2012 2,000 Watt inverter-charger measures 13.5" x 15.25" x 7.75" tall. Can be mounted flat (table top style) or vertically with the control buttons facing up.

Xantrex inverter-charger system diagram

Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output*.
NOTE: We can only "stack" the exact same Xantrex models - we cannot stack say the SW3012 and the SW2012.

* AC source must be split phase, requires Stacking Cable (part# 808-9005)

2 year warranty.

Email us or call 604-510-0800 for more information

$2,073.75 USD*
Price includes Xantrex System Control Panel plus 25' communication cable and Lithionics Factory Programming and Testing with your Lithionics Battery System. Add $30.00 USD for built-in GFCI outlet.

Also available direct from Pinnacle Innovations for non-Lithionics battery projects from $2,493.90 CAD*.

Photo below shows the 3,000 Watt version which looks the same as this 2,000 Watt inverter-charger.

Xantrex Freedom SW 3012 inverter-charger - click for a larger image

Lithionics Programming Guide

Click here for the Xantrex PDF guide



Typical RV wiring diagram

Xantrex Installation Guide

Click here for the Xantrex PDF guide

Xantrex Remote Display Panel for Freedom SW 2012/ 3012

Xantrex 809-0921.
A great way to see what is going on with your inverter-charger - including what condition your input power is. Requires Xantrex communications cable shown below to connect to Freedom Series 2012 and 3012 inverter-chargers.

Display gauge measures 4" x 6" x 1 9/16" deep but you need to allow about 4" on the backside for the cabling.

$369.70 CAD*

Xantrex 809-0921 remote display panel for SW 2012 and 3012 inverter-charger

Xantrex 25' Network Cable 809-0940
Xantrex 809-0940.
Required for Xantrex Freedom SW 3012 and SW 2012 supplied from Lithionics to connect the Inverter-charger to the remote display.

$39.00 USD*

Also available in a 75 foot cable 809-0942 for $53.00 USD*

Xantrex Freedom XC 2000
817-2080

True sine wave 120 VAC inverter/charger with built-in transfer switch. Designed for recreational and commercial applications.

2,000 Watt True Sine Wave inverter, 4,000 Watts peak. It cranks out full output in invert or charge mode from -4 Fahrenheit to 104 Fahrenheit for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

  • Charger: Programmable from 5 Amps to 80 Amps output.
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off.
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis.
  • User configurable Low Voltage Disconnect from 10.0 Volts to 12.8 Volts DC.
  • Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input.
  • Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode.
  • 2 year warranty.

NOTE: We do not recommend 2,000 Watt inverters for auxiliary airconditioners. Ships from Canada.

$1,178.28 CAD*

Xantrex Freedom XC marine/ RV inverter-charger

Options:
Remote Panel 808-0817-01: $79.20 CAD*.
GFCI Option 808-9817: $41.20 CAD*
25' Remote Panel Cable 31-6257-00: $24.90 CAD*.
50' Remote Panel Cable 31-6257-00: $39.90 CAD*.

Xantrex Freedom XC 1000
817-1050

True sine wave 120 VAC inverter/charger with built-in transfer switch. Designed for recreational and commercial applications.

1,000 Watt True Sine Wave inverter, 2,000 Watts peak. It cranks out full output in invert or charge mode from -4 Fahrenheit to 104 Fahrenheit for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

  • Charger: Programmable from 5 Amps to 50 Amps output.
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off.
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis.
  • User configurable Low Voltage Disconnect from 10.0 Volts to 12.8 Volts DC.
  • Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input.
  • Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode.
  • 2 year warranty.

NOTE: We do not recommend 1,000 Watt inverters for auxiliary airconditioners. Ships from Canada.

$869.90 CAD*

Xantrex Freedom XC marine/ RV inverter-charger


Options:

Remote Panel 808-0817-01: $79.20 CAD*.
GFCI Option 808-9817: $41.20 CAD*
25' Remote Panel Cable 31-6257-00: $24.90 CAD*.
50' Remote Panel Cable 31-6257-00: $39.90 CAD*.

NOTE: We can also supply this from Lithionics direct with the lithium-ion battery firmware upgrades and tested with your battery system for $646.00 USD. It would ship with your Lithionics Battery order from Clearwater, Florida.

Xantrex Freedom X 2000

High quality, powerful 2,000 Watt inverter with 4,000 Watt 2 second peak power. View AC & battery current, % status bar for inverter output on the onboard display. No Charger - Inverter Only.

  • User configurable Low Voltage Disconnect from 10.0 Volts to 12.8 Volts DC.
  • 2 year warranty.

Options:
Remote Panel 808-0817-01: $79.20 CAD*.
GFCI Option 808-9817: $41.20 CAD*
25' Remote Panel Cable 31-6257-00: $24.90 CAD*.
50' Remote Panel Cable 31-6257-00: $39.90 CAD*.
Ships from Canada.

$959.24 CAD*

Xantrex Freedom X marine/ RV inverter

Xantrex Freedom X 1000

High quality, 1,000 Watt inverter with 2,000 Watt 2 second peak power. View AC & battery current, % status bar for inverter output on the onboard display. No Charger - Inverter Only.

  • User configurable Low Voltage Disconnect from 10.0 Volts to 12.8 Volts DC.
  • 2 year warranty.

Options:
Remote Panel 808-0817-01: $79.20 CAD*.
GFCI Option 808-9817: $41.20 CAD*
25' Remote Panel Cable 31-6257-00: $24.90 CAD*.
50' Remote Panel Cable 31-6257-00: $39.90 CAD*.
Ships from Canada.

$669.90 CAD*

Xantrex Freedom X marine/ RV inverter

Xantrex PROwatt SW 1000

Xantrex 806-1000.
The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. It also meets UL458 marine supplement.

The PROwatt SW Series feature True Sine-Wave AC output with 540, 900 and 1800 continuous Watts respectively. With high surge capability, the PROwatt SW Series provides the necessary current to startup demanding electrical loads such as variable speed power tools, advanced electrical appliances, microwaves and much more.

In addition to dual GFCI AC receptacles, the PROwatt SW Series include an innovative USB connection for providing power to most USB chargeable devices. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverter's output when the vehicle's ignition is not engaged.

Power inverter providing AC power anywhere you need it. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere.

$465.00 CAD*

Click here for a larger Xantrex inverter image

Also available in 600 and 2,000 Watt versions:

  • Xantrex PROwatt SW600 806-1206 (600 Watts) $327.20 CAD*
  • Xantrex PROwatt SW2000 806-1220 (2,000 Watts) $777.60 CAD*
  • 2 year warranty.
Xantrex PROsine 1000

Designed for recreational and industrial applications, expect the best performances from televisions, audio systems, variable speed tools, and any other electronics where you want nothing but the most optimal performance.

Offering superior quality true sine wave output, the Prosine 1000 and 1800 stand-alone power inverters are ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120 Volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Prosine inverters include a backlit LCD display panel, which can be mounted remotely.

2 year warranty.

$1,097.40 CAD

Click here for a larger Xantrex inverter image

Also available in a 2,000 Watt version for $2,079.90 CAD* (Part numbers Xantrex 806-1800 or Xantrex 806-1802).

Don't see the Schneider Electric/ Xantrex electrical product that you need?
Just let us know what you are after and we can supply it.
battery site spacer

We offer the complete line of high quality Victron Energy electrical equipment including:

  • Victron Energy Multiplus, Quattro and Easy Solar Inverter-Chargers (Including Solar MPPT Inverter-Chargers). See a few examples below...
  • Victron Energy Phoenix Inverters
  • Victron Energy SmartSolar and BlueSolar MPPT Solar Charge Controllers
  • Victron Energy Orion Smart DC to DC Chargers and DC to DC Converters (power supplies)
  • Victron Energy BMV Series State of Charge Monitoring Systems (SOC/ Battery Monitor) Gauges
  • Victron Energy Accessories - Sensors, BMS, VE.Direct/ VE.Bus cables etc.
  • Victron Energy AGM Batteries
  • Victron Energy Phoenix/ Skyla/ Centaur/ Blue Smart Chargers
  • Victron Energy DC Distribution systems & Fuses
  • Victron Energy Isolation transformers
  • Victron Energy Panels and system monitoring such as Color Control GX, Cerbo GX, GX Touch Screens etc.
We have several installations successfully running Victron Energy electrical equipment including the Victron Quattro and Multiplus inverter chargers. Available in 12, 24 and 48 Volt configurations.

Victron offers a great selection of mid to high power inverter chargers that can be networked with other Victron equipment for seamless integration or as stand alone products.

Click on the images for larger images of the Victron Quattro 24 Volt RV/ Prevost Tour Bus installation

Victron Energy 24 Volt Quattro 5kW inverter chargers installed on a corporate tour bus

We offer many more Victron Energy parts not shown here.
Visit our Victron Energy Components Page for complete information and details on all of Victron's parts
Call Pinnacle Innovations at 604-510-0800 or email us at siteinfo@shaw.ca to obtain a quote.
battery site spacer
lithium battery spacer
OutBack Power Electrical Product List
* Prices subject to change
OutBack Inverter E-Panels (comes with Mate display panel)
Model Number
Description
Discounted Price $CAD*
EP-FXR2012
E-Panel system with FX2012T inverter
$5,579.00
EP-FXR2524
E-Panel system with FX2524T inverter
$5,579.00
EP-VFXR2812
E-Panel system with VFX2812 inverter
$5,879.00
EP-VFXR3524
E-Panel system with VFX3524 inverter
$5,879.00
EP-VFXR3648
E-Panel system with VFX3648 inverter
$5,879.00

OutBack Inverter FLEXware Powerboards (now includes Mate, Hub and Disconnects)
Model Number
Description
Discounted Price $CAD*
PB-GS8048A
Radian 8000W, 48Vdc Outback PowerBoard 120/240Vac
$11,787.00
FW500-VFXR2812X2
FLEXware 12VDC system with 5,6kW two .FX2812, 120/240Vac
$12,690.00
FW500-VFXR3648X2
FLEXware 48VDC system 7.2kW, 120/240Vac
$12,690.00
FW500-VFXR3524X2
FLEXware 24VDC system 7.0kW two VFX3524, 120/240Vac
$12,690.00
FW-1KVFXR3648X3
FLEXware 48VDC system 10.8kW, 3PH, 120/208Vac
$19,511.00
FW-1KVFXR3524X2
FLEXware 24VDC system 7.0kW two VFX3524, 120/240Vac
$15,189.00
FW-1KVFXR3648X2
FLEXware 48VDC system 7.2kW two VFX3648, 120/240Vac
$15,699.00
FW-1KVFXR3648X4
FLEXware 48VDC system 14.4kW four VFX3648, 120/240Vac
$23,197.00
FW-1KVFXR3524X4
FLEXware 48VDC system 14.0kW four VFX3648, 120/240Vac
$23,197.00

PB-LA-ADD
Lightning Protection (AC & DC) Add
$247.00
PB-FM60-ADD
FM60 MPPT Regulator And Input Breaker
$1,162.00
PB-FM80-ADD
FM80 MPPT Regulator And Input Breaker
$1,297.00
PB-X240-ADD
X-240 Transformer Add (Specify Load or Gen side)
$899.00
PB-CSA-ADD
CSA Approval Add-On
$709.00

OutBack Inverters
Model Number
Description
Discounted Price $CAD*
GS8048
Radian 8000W 120/240Vac Grid-Interactive and Standalone
$6,928.00
GS8048A
Radian 8000W 120/240Vac Adv. Grid-Interactive and Standalone
$7,089.00
GS4048A
Radian 4000W 120/240Vac Adv Grid-Interactive and Standalone
$4,697.00
FXR2012A
2000 W, 12 VDC Inverter/Charger, Sealed, 100A Charger
$2,788.00
FXR2524A
2500 W, 24 VDC Inverter/Charger, Sealed, 55A Charger
$2,788.00
FXR3048A
3000 W 48 VDC Inverter/Charger, Sealed, 35A Charger
$2,788.00
VFXR3648A
VFXR Series Inverter/Charger 3600W, 48Vdc, 45 A charger, 60 Amp AC input
$2,995.00
VFXR3524A
VFXR Series Inverter/Charger 3500W, 24Vdc, 82 A charger, 60 Amp AC input
$2,995.00
VFXR2812A
VFXR Series Inverter/Charger 2800W, 12Vdc, 125 A charger, 60 Amp AC input
$2,995.00

OutBack Radian Series
Model Number
Description
Discounted Price $CAD*
GS8048A
Radian 8000W, 48Vdc Outback PowerBoard 120/240Vac
$11,689.00
GS4048A
Radian 4000W, 48Vdc Outback PowerBoard 120/240Vac
$8,277.00

Additional OutBack Parts
Model Number
Description
Discounted Price $CAD*
FM60
Outback 60 Amp MPPT Controller
$787.00
FM80
Outback 80 Amp MPPT Controller
$889.00
FM-EXTREME
Outback Sealed 80A/150VDC MPPT Charge Controller
$2,099.00
MATE
Remote for FX Inverters And FM60 Regulators
$421.00
MATE2
Remote for FX Inverters And FM60 Regulators - Black Square Housing
$421.00
MATE3
Remote for FX Inverters And FM60 Regulators - Ethernet
$879.00
Don't see what you need here? We offer many more OutBack parts not shown here.
Call Pinnacle Innovations at 604-510-0800 or email us at siteinfo@shaw.ca
lithium battery spacer
lithium battery spacer
Magnum Energy Electrical Product List
* Prices subject to change
Magnum Inverter E-Panels (comes with remote display panel)
Model Number
Description
Discounted Price $CAD*
EP-ME2012
E-Panel system with ME2012 inverter
$3,289.00
EP-MS2012
E-Panel system with MS2012 inverter
$4,179.00
EP-MS2812
E-Panel system with MS2812 inverter
$4,497.00
EP-MS4024
E-Panel system with MS4024 inverter
$4,685.00
EP-MS4024PAE
E-Panel system with MS4024PAE 120/240 inverter
$4,885.00
EP-MS4448PAE
E-Panel system with MS4448PAE 120/240 inverter
$4,939.00
EP-RD2824
E-Panel system with RD2824 inverter
$3,568.00
EP-RD1824
E-Panel system with RD1824 inverter
$3,222.00
EPM-MS4024-120
EPM-MS4024 – 120V MAGNUM E-Panel system
$4,989.00
EPM-MS4024PAE
EPM-MS4024PAE – MAGNUM E-Panel system
$5,147.00
EPM-MS4448PAE
EPM-MS4448PAE – MAGNUM E-Panel system
$5,200.00
MMP250-30D
MINI MAGNUM PANEL - 250A DC & 30D AC
$1,089.00
MMP-BP
MINI MAGNUM PANEL - BACK PLATE
$157.00
MPSL175-30D
MAGNUM PANEL - FITS 1-2 MS-PAE INVERTERS - 30A AC BREAKERS
$1,268.00
MPXS175-30D-L
MAGNUM PANEL EXTENSION BOX - FITS 1 MS-PAE INVERTERS - 30A AC BREAKERS
$529.00

Magnum Powerboards - Prewired
Model Number
Description
Discounted Price $CAD*
MP-MS4448PAEx2
Magnum Panel-8800W, 48Vdc system
$10,057.00
MP-MS4024PAEx2
Magnum Panel-8000W, 24Vdc system
$10,109.00
EP-PT100-ADD
Magnum 100Amp MPPT Regulator and Input Breaker
$1,940.00
EP-BMK-ADD
Magnum BMK Add
$382.00

Magnum Inverters
Model Number
Description
Discounted Price $CAD*
MS Series
Pure Sine Wave -ETL Listed to UL 1741 and CSA

MS2012
2000 Watt, 12V Inverter/100 Amp PFC Charger
$2,205.00
MS2012-20B
2000 Watt, 12V Inverter/100 Amp Charger/2-20A AC Breakers
$2,267.00
MS2812
2800 Watt, 12V Inverter/125 Amp PFC Charger
$2,567.00
MS4024
4000 Watt, 24V Inverter/105 Amp PFC Charger
$2,674.00
MMS1012
1000 Watt, 12V Inverter/50 Amp PFC Charger
$1,261.00
  June 2019: click here for the latest Magnum Charger Programming Guide that modifies the CC/CV program.
MS-PAE Series
Pure Sine Wave -ETL Listed to UL 1741 and CSA

Model Number
Description
Discounted Price $CAD*
MS4024PAE
4000 Watt, 24V Inverter/105 Amp Charger/120V/240V In/Out
$2,790.00
MS4448PAE
4400 Watt, 48V Inverter/60 Amp Charger/120V/240V In/Out
$2,809.00

RD Series
Modified Sine Wave -ETL Listed to UL 1741

Model Number
Description
Discounted Price $CAD *
RD2212
2200 Watt, 12V Inverter/110 Amp PFC Charger
$1,639.00
RD1824
1800 Watt, 24V Inverter/50 Amp PFC Charger
$1,478.00
RD2824
2800 Watt, 24V Inverter/80 Amp PFC Charger
$1,889.00
RD3924
3900 Watt, 24V Inverter/120 Amp PFC Charger
$2,247.00

MM-AE Series
Modified Sine Wave

Model Number
Description
Discounted Price $CAD*
MM612AE
600 Watt, 12V Inverter/30 Amp PFC Charger
$698.00
MM1512AE
1500 Watt, 12V Inverter/70 Amp PFC Charger
$1,041.00
MM1524AE
1500 Watt, 24V Inverter/35 Amp PFC Charger
$1,069.00


ME Series
Modified Sine Wave - ETL Listed to UL / cUL 458 and CSA

Model Number
Description
Discounted Price $CAD*
ME2012
2000 Watt, 12V Inverter/100 Amp PFC Charger
$1,403.00
ME2012-20B
2000 Watt, 12V Inverter/100 Amp Charger/2-20A AC Breakers
$1,642.00
ME2512
2500 Watt, 12V Inverter/120 Amp PFC Charger
$1,629.00
ME3112
3100 Watt, 12V Inverter/160 Amp PFC Charger
$1,889.00

Additional Magnum Parts/ Accessories
Model Number
Description
Discounted Price $CAD*
ME-RC50
Remote w/ LCD Display, 50'
$279.00
ME-ARC50
Advanced Digital LCD Display Remote Panel with 50' Cable
$358.00
ME-RTR
Router Remote - required for parallel stacking of the MS-PAE
$480.00
Don't see what you need here? We offer many more Magnum Energy parts not shown here.
Call Pinnacle Innovations at 604-510-0800 or email us at siteinfo@shaw.ca
battery site spacer
battery site spacer
Some of the Additional Products and
Services That We Offer:

ADDITIONAL SYSTEMS INCLUDING AIR CONDITIONERS AND DIESEL GENERATORS:

Our goal at Pinnacle Innovations and getlithium.com is to bring our Customers best in class products so that we can provide integrated total systems solutions that complement the best in class Lithionics lithium-ion battery systems.

With the growth in popularity of DC power solutions in marine, RV and industry, the Lithionics lithium-ion battery systems have made more things possible - including replacing generators on RV's and getting rid of inefficient diesel AC Generators. As a big part of this change we worked closely with a pioneering Customer of ours and Queen Long Marine Company in Taiwan (manufacturer of the precision crafted Hylas yachts and sailboats) to create a new marine industry standard featuring a predominantly 24 Volt DC sailboat with numerous DC charging solutions and upgrades.

56 foot Hylas sailboat equipped  with Lithionics 12 and 24 Volt lithium battery systems, Polar Power 24 Volt Dc generator, Solbian solar panels and more


Over the years as a result of Customer demand, we are proud to offer a long list of best in class electrical products and systems that includes:



battery site spacer battery site spacer

INSTALLATIONS:
In many cases we can provide on-site installations, supervision and consultation. Some of the locations that we have travelled to include Taiwan, Florida and other locations.

Victron Energy MultiPlus 3kW 24 Volt Dc inverter-charger installation with Perfect Switch POWER-GATE rectifier isolators

Above photo shows the 24 Volt Victron Energy Multiplus 3kW inverter-charger being installed alongside several Perfect Switch POWER-GATE rectifier relays and custom programmed ORing relays.

Lithionics lithium-ion 12 Volt battery system installed with custom aluminum battery box on a 2017 Jeanneau 44 foot sailboat

Above photo shows two Lithionics 12 Volt 450 Amp hour batteries in parallel connected to a 400 Amp NeverDie BMS box. As part of the installation here in Vancouver on this 2017 Jeanneau 44' sailboat, we also had to fabricate and install a preceision-fit custom aluminum battery box.



Lithium ion batteries for backup power, power paks and mobile audio spacer
Pinnacle Innovations installation photos of 2017 Hylas 56 foot sailboat
Installation photo of the DC Power Solutions 180 Amp 14 Volt high output alternator installed on a Hylas 56' sailboat.


Click here to go back to the Top

Lithionics spacer

Lithionics spacer

battery site spacer

Lithionics spacer
Lithionics spacer
battery site spacer
HEAVY DUTY 24 VOLT LITHIUM-ION RV BATTERY

Lithium ion battery list spacer The POWER: 25.6 Volts;
battery site spacer 300 Lithium Amp Hours
battery site spacer
Lithium ion battery list spacer The WEIGHT (in Pounds): 160 Lbs.

Lithium ion battery list spacer Size LxWxH (in Inches): 24 x 13 x 11.1"

Lithium ion battery list spacer The SAFETY Leader:
battery site spacer Approved to UN DOT 38.3 for Lithium
battery site spacer UL Approved

Lithium ion battery list spacer The PRICE Leader: Full Factory
battery site spacer Automation

Lithium ion battery list spacer Connection Options Available:
battery site spacer Large Scale Connection Systems
battery site spacer
WARNING:
Lithium batteries are designed for operating in environments under 60 C/140 F. If you have an RV vehicle installation or an under the hood installation, inform us and we will discuss accepted operating temperatures and how we can control excessive heat and cold situations.

Lithium ion deep cycle and engine starting battery: GT 24 Volts with 300 Amp hours capacity


GT Series UL Certified 24 Volt 300 Amp hour lithium-ion battery details

For More Information on Lithionics Batteries,
a System Evaluation
or to Order,
Call: 604-510-0800
or Email Us

Lithionics spacer

Lithionics spacer
battery site spacer battery site spacer battery site spacer

Click here to visit the RV Van Conversions Page...

battery site spacer
Lightweight, high performance Lithionics lithium ion deep cycle batteries for recreational vehicles and travel trailers, marine including yachts and sailboats, solar power systems and industrial projects
Lithium battery spacer MORE POWER
Lithium battery spacer 1/5 WEIGHT OF AGM/ LEAD
Lithium battery spacer LONG LIFE
Lithium battery spacer ENVIRONMENTALLY FRIENDLY
battery site spacer

Lithium Ion spacer Web Site Navigation Lithium Ion spacer
  lithium battery spacer
~ Deep Cycle
lithium battery spacer Lithium
~ Engine Cranking
lithium battery spacer Lithium
lithium battery spacer Batteries
~ RV Lithium
lithium battery spacer Batteries
~ Marine Lithium
lithium battery spacer Batteries
~ Large Scale
lithium battery spacer Lithium-ion
lithium battery spacer Batteries
~ Solar Power
lithium battery spacer Lithium
lithium battery spacer Batteries
~ Truck Industry
lithium battery spacer Lithium
lithium battery spacer Batteries
lithium battery spacer
~ Lithionics
lithium battery spacer Battery
lithium battery spacer NeverDie BMS
~ Dual Channel
lithium battery spacer BMS
~ State of Charge
lithium battery spacer Monitoring
lithium battery spacer Systems (SOC)
~ CANbus
lithium battery spacer Controls
~ Alternator
lithium battery spacer Controls
lithium battery spacer
~ Sailboat/ Yacht
lithium battery spacer Inboard &
lithium battery spacer Outboard
lithium battery spacer
Electric
lithium battery spacer motors
~ 5hp, 9.9hp, 14hp,
lithium battery spacer 20hp, 30hp &
lithium battery spacer 50hp electric
lithium battery spacer outboard boat
lithium battery spacer motors
~ 6hp, 12hp, 20hp,
lithium battery spacer 40hp, 70hp and
lithium battery spacer 100hp electric
lithium battery spacer inboard boat
lithium battery spacer motors
~ Lithium-ion
lithium battery spacer and Victron
lithium battery spacer Energy AGM
lithium battery spacer Batteries
lithium battery spacer
~ Sailboats
~ Ski Boats
~ Bass Boats
~ Sport
lithium battery spacer Cruisers
~ Offshore
lithium battery spacer Racing
lithium battery spacer Boats
~ Yachts
~ High Output
lithium battery spacer Alternators
lithium battery spacer with
lithium battery spacer External
lithium battery spacer Wakespeed
lithium battery spacer or Balmar
lithium battery spacer Voltage
lithium battery spacer Regulators

lithium battery spacer
~ Class A, B & C
lithium battery spacer Recreational
lithium battery spacer Vehicle Lithium-ion
lithium battery spacer Batteries
~ Mercedes Benz
lithium battery spacer Sprinter Van
lithium battery spacer Lithium-ion
lithium battery spacer Batteries
~ Deep Cycle &
lithium battery spacer Engine Cranking
lithium battery spacer Lithium-ion
lithium battery spacer Battery Systems
~ High Output
lithium battery spacer Alternators with
lithium battery spacer External
lithium battery spacer Wakespeed
lithium battery spacer or Balmar Voltage
lithium battery spacer Regulators

lithium battery spacer
~ Email Us

~ Hours
~ Address
~ About
lithium battery spacer Pinnacle
lithium battery spacerInnovations

lithium battery spacer
High Output Alternators from Nations Alternator, Balmar and DC Power Solutions as well as high power Inverter-chargers by Xantrex and Victron Energy including Xantrex Freedom Pro XC and Victron Multiplus and Quattro 3,000 Watt models for use with Lithionics lithium ion batteries in Recreational Vehicles, Sailboats Yachts for sale Internationally, across the USA and all across Canada including Toronto, Montreal, Calgary, Ottawa, Edmonton, Mississauga, Winnipeg, Vancouver, Brampton, Hamilton, Quebec City, Surrey, Langley, Laval, Halifax, London, Markham, Vaughan, Gatineau, Longeil, Burnaby, Saskatoon, Kitchener, Windsor, Regina, Richmond, Richmond Hill, Oakville, Burlington, Sudbury, Sherbrooke, Oshawa, Barrie, Kingston, Cambridge, Coquitlam, Whitby, Guelph, Kelowna, Saanich, Victoria, Nanaimo, Thunder Bay, St. John's, Red Deer, Kamloops, Fort MacMurray, Fredericton, Grande Prairie, North Bay, Whistler, Prince George, Pickering, North Vancouver, Aurora, Shawinigan, Moncton, Saint John, Lethbridge as well as British Columbia (BC), Alberta (AB), Saskatchewan (SK), Manitoba (MB), Ontario (ON), Quebec (QC), New Brunswick (NB), Nova Scotia (NS), Prince Edward Island (PEI), Newfoundland (NL), Yukon Territory (YT), Northwest Territory (NT), Nunavit (NU) and Iqaluit.

Copyright getlithium.com, Lithionics Battery and Respective Copyright Holders 2022. All rights reserved.
lithium battery spacer
lithium battery website spacer lithium battery spacer lithium battery website spacer right
