PERFECT SWITCH SOLID STATE PROGRAMMABLE OR'ING DIODES GEN 4.1

Perfect Switch "POWER-GATE" Programmable OR'ing Diodes are the Best, Most Efficient and Most Powerful Solid State Devices on the Market.
Available For Industry, Marine, RV, Cars, Trucks, Aircraft & Military Applications

All Prices $USD. Contact Us for Shipping/ Freight Costs.
Quantity Discounts Available.

Perfect Switch Programmable OR'ing
OR'ing Diodes are designed to OR two sources to a single load. Ultra-low on-resistance means devices require no heat sinking and no airflow at currents up to 300 Amps. OR'ing Diodes are epoxy encapsulated in a custom ABS enclosure and are well suited for hostile environments. Both programmable and non-programmable versions are available.

IMPORTANT: If you have a Balmar External Voltage Regulator connected in the system please advise so that we can program the trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

POWER-GATE PRODUCT PAGES
Product Overview Page	Single Rectifier Isolator (Gen 4.1)	Dual Rectifier Isolator (Gen 4.1)
Single Rectifier Relay Isolator (Gen 3.0)	Standard Relays/ Uni-Directional	Bi-Directional Relays (Gen 3.0)
Programmable Autonomous Relays	Voltage Sensitive Relays/ LVD	Programmable OR'ing Diodes (Gen 3.0 & 4.1)
Non-Programmable OR'ing Diodes (Gen 3.0 & 4.1)	Circuit Breakers	Current Limiting Relays
Battery Disconnect Switch	Battery Cut-Off Switch	Remote Control Programmer

Quick Specs:
Programmable OR'ing Diodes
Gen 4.1

Current Rating: 50 to 600 Amps
Operating Voltage: 6.5 to 36 VDC
(12 Volt and 24 Volt models available)
Voltage Drop at Max Current: 50mV
Temperature Range: -40 to +105 C
Weight: 14.4 ounces
Dimensions: 5.40" x 2.86" x 1.57"

NOTE: Two Devices are Provided Per Assembly

Pricing: From $397.00 USD

Please contact us for details

Programmable OR'ing (GEN 4.1)

OR's two sources to a single load
Low voltage, High current capability
Industry-leading ultra-low on-state resistance
99.9% efficient at maximum continuous current
No heat sinks or airflow required
No de-rating required over full temperature range
Fully encapsulated solid state design
Internationally patented arrayed MOSFET technology
MIL-STD-461E Compliant

Description:
POWER-GATE programmable OR'ing diodes are designed to selectively OR one of two sources to a load. This configuration can be programmed to automatically conduct current from a pre-defined Master source to the load. When the primary source drops to a pre-defined low Voltage threshold (or alternate metric), the device will "flip" and current from the secondary Slave source will drive the load. The customer's application and performance requirements dictate how the devices will be programmed. This setup is highly customizable so please contact us so we may assist in configuring devices for your application.

POWER-GATE programmable OR'ing diodes provide high performance and reliable switching without the conductive losses and leakage typical to Schottky rectifiers.

Conventional silicon and Schottky rectifiers can be economically priced, but have significant performance issues:

substantial Voltage drop as current passes
conductive losses create significant heat
batteries never get fully charged
alternator regulators always inaccurate due to diode drop

Programmable OR'ing diodes are constructed based on Perfect Switch's internationally patented large MOSFET array technology.

Questions/ Want to place an order?
Call us at 604-510-0800 or Email Us

Programmable OR'ing Diode (Gen 4.0) Information

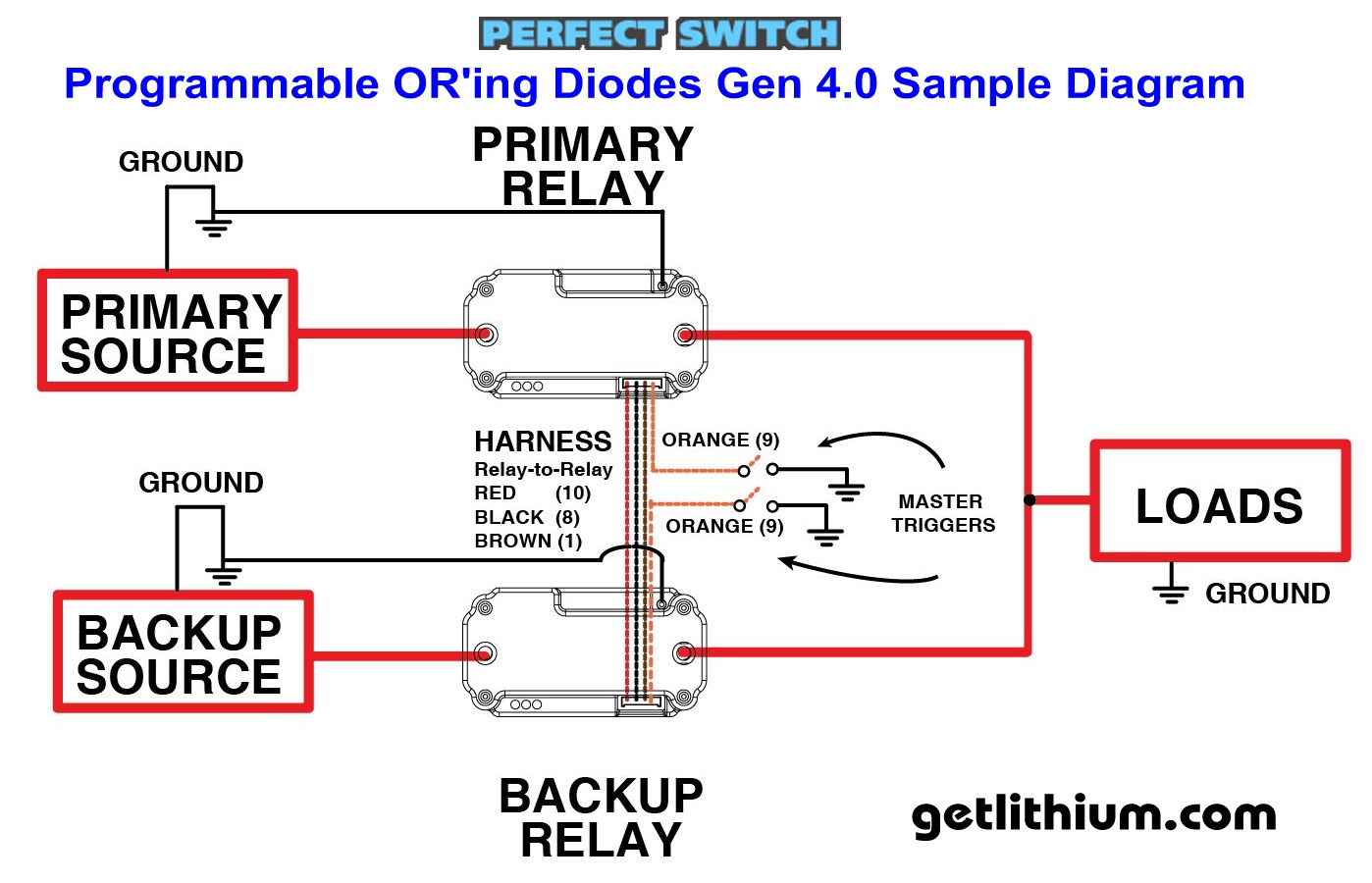

The POWER-GATE Programmable OR'ing functionality is achieved using two, bi-directional solid state relays (RB devices). For Absolute Maximum Ratings, Recommended Operating Conditions and Electrical Specifications, please view the specification sheet for the POWER-GATE Bi-Directional Relays.

ADDITIONAL INFORMATION
Electronic assembly inserted into ABS encapsulation shell then backfilled with black, flame retardent, filled epoxy specifically developed for the potting of electronic modules.

Four integrated mounting holes pre-drilled to .250"

Mounting posts, 5/16-18 x .50" with provided brass washers and nylon insert 5/16-18 nuts. Mounting torque not to exceed 75 inch-pounds or 8.5 newton-meters.

Pricing: Please refer to the Pricing Chart below.
Questions/ Want to place an order? Call us at 604-510-0800 or Email Us

POWER-GATE DEVICE OPTIONS & OPTION PRICING:
Opto Isolated Input	Add $32.00 USD to device price
Under-Voltage Shutdown Feature	Add $22.00 USD to device price
Over-Voltage Shutdown Feature	Add $22.00 USD to device price
Circuit Breaker Functionality	Add $45.00 USD to device price
Sleep Mode Power Saver	Add $18.00 USD to device price

Questions/ Want to place an order? Call us at 604-510-0800 or Email Us

PERFECT SWITCH PRODUCTS

ISOLATOR DEVICES/ RECTIFIERS

POWER-GATE Battery Isolators are industry leading, high performance, one-way electrical valves. They are commonly deployed in multi-battery applications where independent discharge or battery separation is required. Never confuse conventional battery isolators with POWER-GATE battery isolators. POWER-GATE devices enjoy ultra-low on-resistance and require no heat sinking and no airflow at currents up to 600 Amps.

Power-Gate rectifiers are the most efficient and reliable available

Recommended by EnerSys (manufacturer of Odyssey, Hawker, Loadhog, Powersafe, General, NP, Ironclad, Genesis, Heritage, and Varta batteries), and utilized in both military and civilian applications, POWER-GATE Battery Discharge Controllers insure that power gets to where it's needed without the excessive heat and Voltage drop typified by more common, lesser performing silicon and Schottky devices. Unlike conventional silicon and Schottky isolators, POWER-GATE's achieve sub-100 micro-ohm performance, even as the currents climb through 600 Amps; that's over 1,000% more efficient than traditional silicon and Schottky technology. With heat being the primary killer of electronics, engineering heat OUT of the product yields unparalleled reliability.

Perfect Switch manufactures Battery Discharge Controllers in two configurations: Single Rectifiers and Dual Rectifiers. Each is designed for use with multiple batteries and how you plan on using your DC resources will dictate which device is the appropriate choice for your application. Single rectifiers and dual rectifiers are available up to 300 Amps. Perfect Switch also offers higher power dual rectifier devices from 400 Amps to 600 Amps.

Contact Pinnacle Innovations
Questions/ Want to place an order? Call us at 604-510-0800 or Email Us

Important Perfect Switch POWER-GATE Device Installation Information Click on the images for detail photos

We recommend the use of Blue Sea Systems "Terminal Block Fuse Sets" on the Perfect Switch stud terminals.	CORRECT INSTALLATION of Terminal Block Fuse Sets. Be certain to install Cable Terminal Isolators to Prevent Arcing.	INCORRECT INSTALLATION of Terminal Block Fuse Sets. Be certain to install Cable Terminal Isolators to Prevent Arcing.
