GTX
Series Lithium Ion Battery and Accessories
All Prices $USD. Contact Us for Shipping/ Freight
Costs.
|
|
|
Sorry
- this Lithionics Battery Model is only available to OEM
RV Manufacturers
|
|
Battery
Model
|
Applications
|
Volts
|
Watt
Hours
|
RC
Mins
|
Ahr
|
Weight
|
Size
|
Lithionics
Battery Price*
|
Lithionics
Battery 12 Volt Lithium-ion Battery Model GTX 12V 320A
E2107-CS200-UL
Lithionics
Battery 12 Volt Lithium-ion Battery
UN DOT 38.3 & other ratings
|
Winnebago
RV's and Mercedes Benz Sprinter Vans, Off-Grid, RV, Industrial
Energy Systems,
Trucks, Marine, Solar Power Systems
|
12.8
|
|
|
320
|
|
20.3" x 6.4" x 10" overall height. Add extra height
for cabling.
|
Sorry
- this Lithionics Battery Model is only available to OEM
RV Manufacturers
|
|
|

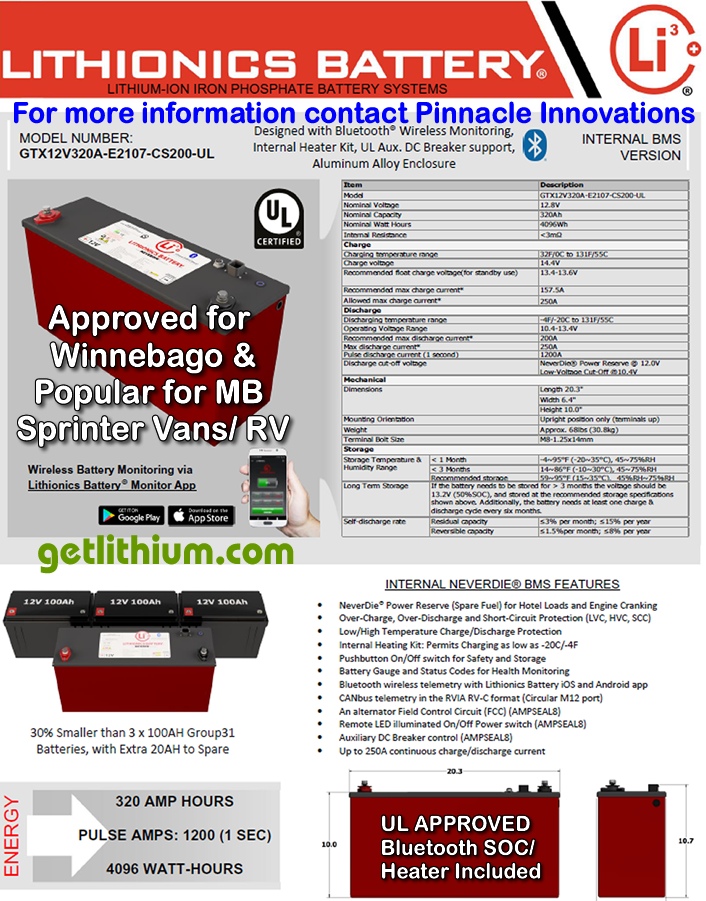

A great compact high capacity single 12 Volt lithium-ion
battery with 320 Amp hours capacity. Highly engineered,
designed and assembled in the USA, lightweight, high performance
GTX Series Lithionics Battery 12 Volt 320 Amp hour capacity
E2107 aluminum battery case style Lithium Ion Battery with
4,096 Total Watt Hours capacity and built-in CS series 200
Amp BMS (250 Amps peak). High cranking Amps means this is
a dual purpose deep cycle and engine cranking LiFePO4 battery.
Please inform us of the intended orientation of the battery
before ordering.
Pricing
details:
- Base
Price: Sorry - this Lithionics Battery Model is only available
to OEM RV Manufacturers

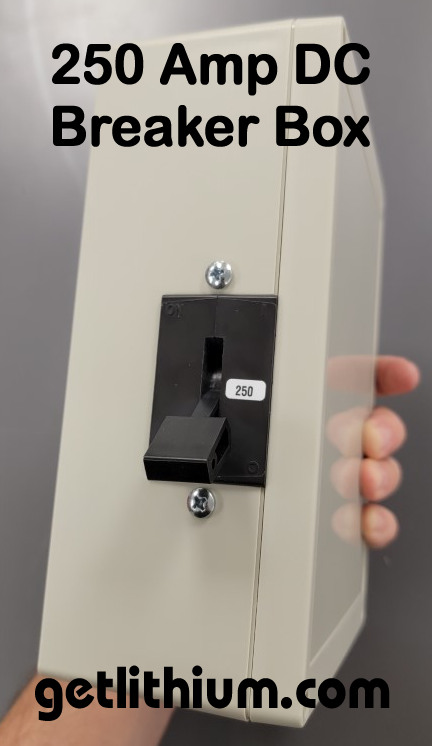

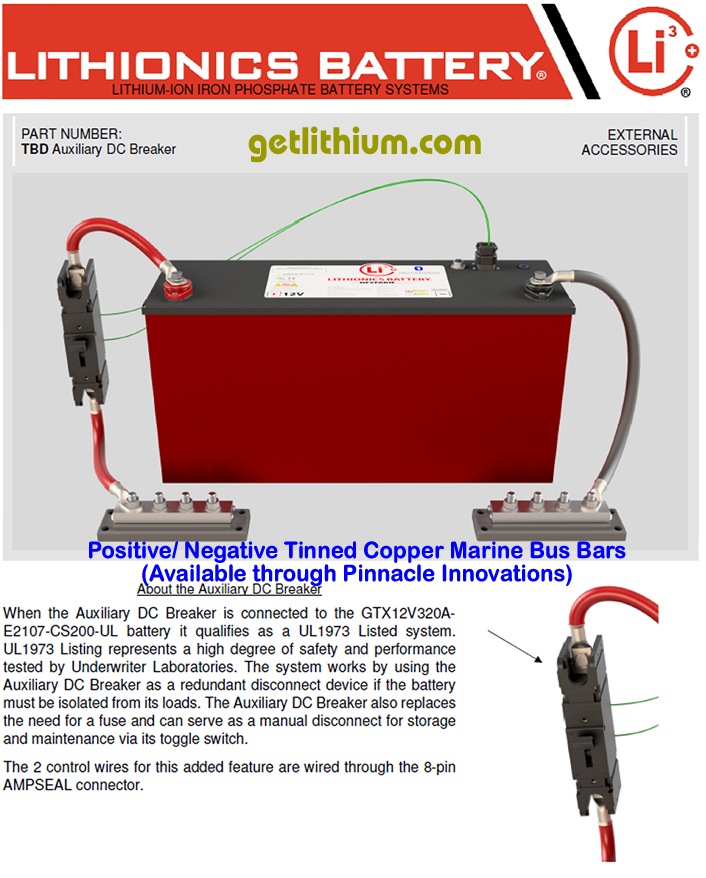

- UL
Circuit Breaker, 250 amp rated, with enclosure. Part number
75-702
- Blue
Sea Bus Bars - 2 units with four 5/16" studs, 250A Rating.
Part number 2127.
- Blue
Sea covers for above bus bars. Part number 2719.
- Two
units 2/0 Red marine cable with 3/8" to 5/16" cable eyelets.
2 feet long. Part number 75-194-24.
- 2/0
Black marine cable extension with 3/8" to 5/16" cable
eyelets. 4 feet long. Part number 75-195-48.
This
is the UL (Underwriter's Laboratory) approved version of
this battery and is approved for installation in Winnebago
RV's - including the Winnebago EKKO that uses a Ford Transit
van chassis.
|
Click
on the logos below for PDF info sheets:
|
75 702 BMS Controlled Circuit Breaker |
75 H1FCR CS2 UL 8 pin Ampseal REV.A |
|
|
|
NOTES:

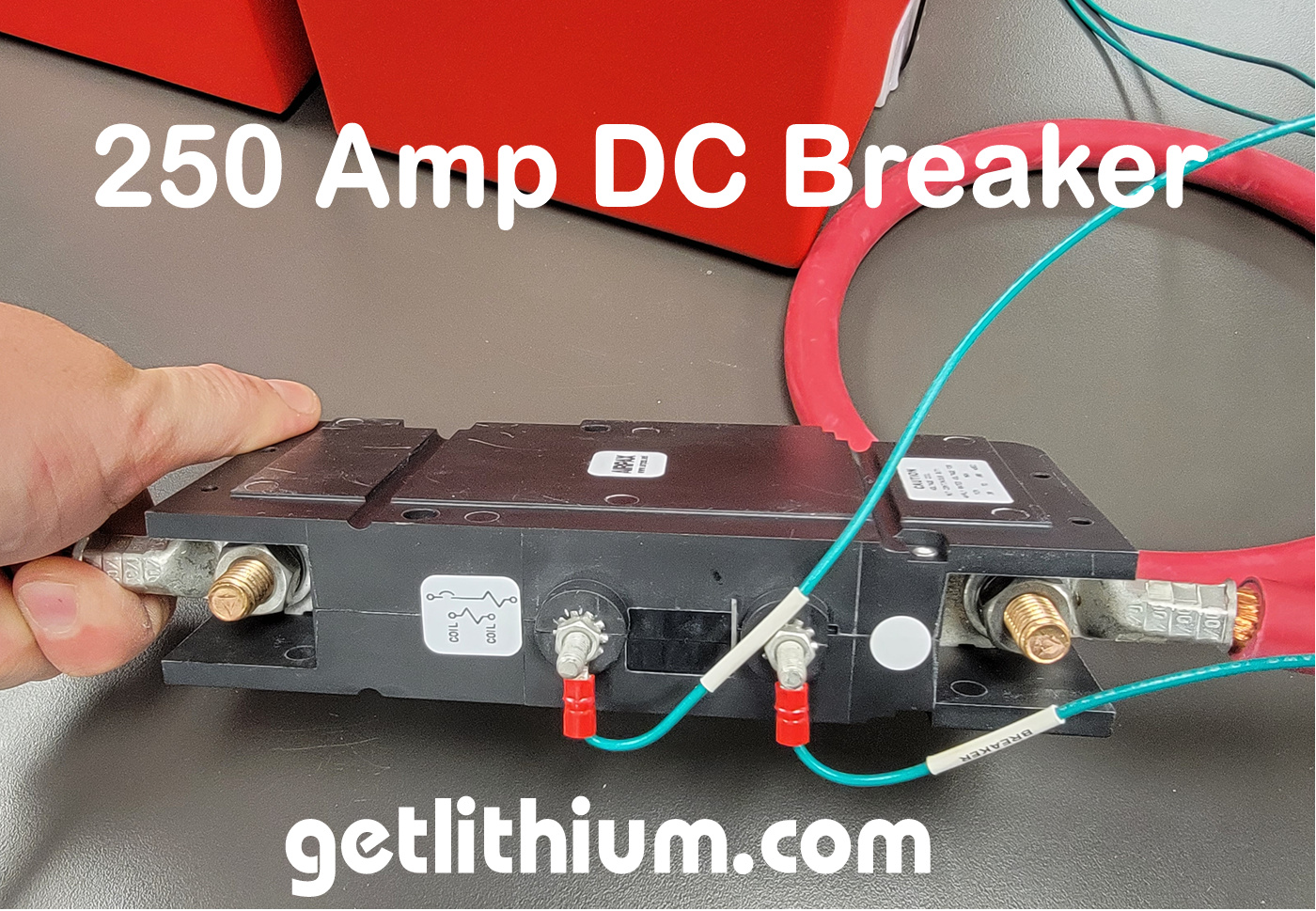

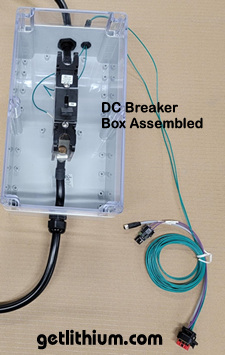

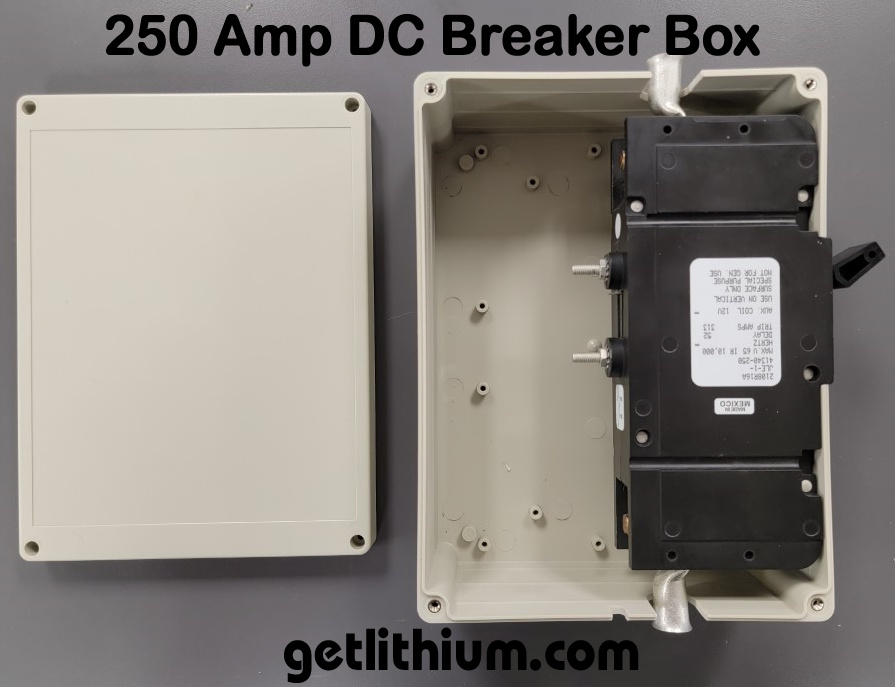

1. DC Circuit Breaker Instructions:
Customer is to open up the lid of the DC breaker, install
the positive cable IN and cable OUT to the breaker, install
the two green control leads from the 8 pin AMPSEAL kit.
Then drill through the floor of the case to bolt the box
down, then put the lid on.
2. Heater
Function:
When the battery is turned Off (for Winter storage etc.)
this also turns off the battery's internal heater system
so that the battery does not deplete when stored in cold
temperatures. Refer
to the Lithionics Storage Procedures PDF for storage instructions.
3. Alternator Charging:
The long-term effects of constant charging from "unregulated/
controlled alternators" are indicating possible degradation
of lithium-ion batteries. As such, we only recommend directly
connecting a Lithionics battery system to a high quality
alternator that connects to either a Wakespeed or Balmar
branded external Voltage Regulator that can offer proper
3 stage charging AND the Lithionics BMS option "FCC"
can turn off the alternator when the lithium battery is
full. For alternators that are "shared" and need
to charge a lead-acid/ AGM start battery as well as the
Lithionics battery we recommend using a high quality DC
to DC Battery Charger like those made by Sterling Power
(ignition enabled option) that will connect to your start
battery and feed the Lithionics Battery. Please consult
Pinnacle Innovations and we will be happy to specify how
best to achieve alternator charging and we can also supply
any parts needed - such as DC to DC Battery Chargers, Wakespeed
or Balmar branded external Voltage Regulators and high efficiency
battery isolators by Perfect
Switch. Contact Us
Page...
If
you have been looking at far lower quality competitor's
100 Amp hour Group 31 style lithium batteries, you will
find that this Lithionics battery will far outperform the
competitor's Chinese B and C grade product, has far greater
safety/ usability, is equal to more than 3 of those 100
Amp hour batteries, is not just deep cycle like the competitors
(you can also use this dual purpose Lithionics battery for
engine cranking) and is priced very well in comparison.
Learn more about what to look for when comparing lithium
batteries on our "Beware
Low Cost Competitor Batteries" page.
Options:
-
IONGAUGE
From $545.54 USD total.
If you plan to install two of these batteries in parallel
and/ or you want to tie the battery monitoring into your
RVC/ CANbus systems monitoring equipment you'll want to
consider this.
Full
details on our BMS page...
- Automated
Type 1 internal heating kit. Automatically uses battery
power to keep battery above 0 Celsius (turns on at 2 Celsius/
35 Fahrenheit) so it is ready for use any time. Please
discuss with us how this works.

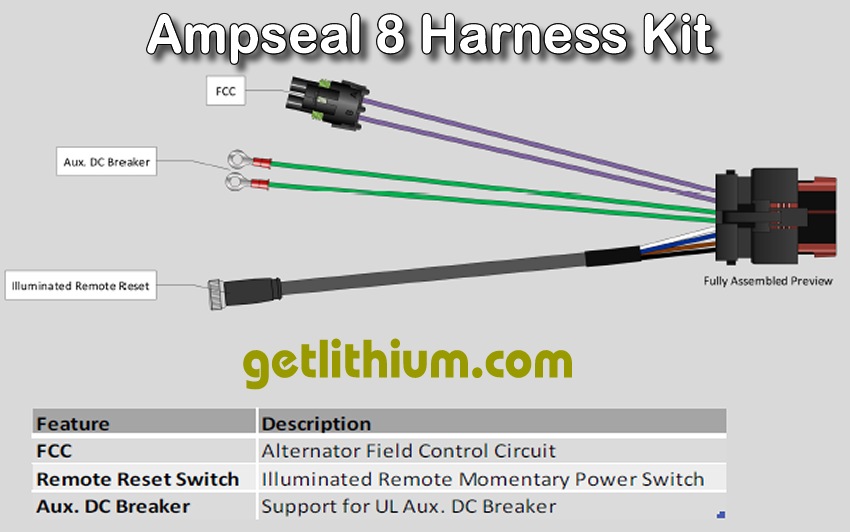

- Ampseal
connector for accessories. Price: Add $137.00 USD plus
the option leads. Part # 75-H1FCR-CS2.
- Remote
illuminated LED On/Off button with 16 feet of cable. Part
# 75-224-196. Price: Add $169.42 USD. This is a good idea
if the battery is located in a hard to reach place.
- FCC
alternator interface 15 foot extension lead for dedicated
alternator with external Balmar style Voltage regulator.
Part # 75-149-180. Price: Add $39.44 USD.
We
also offer a GTX Series 275,
555,
1,050
and a 1,260
Amp hour lithium-ion battery module.
|
Click on the PDF logo to the right to view the Lithionics
Battery Battery Charger Approved Settings Guide
|
|
|
Click on the PDF logo to the right to view the Lithionics
Battery Installation Guide
|
|
This
extremely versatile battery can be used for a wide variety
of applications including Deep Cycle House Power for RV
and Marine applications, Solar System battery, Industrial
Project battery as well as a diesel engine cranking battery
for Truck Engines and for Marine Engine Starting on sailboats
and yachts. Internal NeverDie Battery Management System
(BMS) rated at 200 Amps included. BMS
details page...
This
battery is a dual-use battery: Deep Cycle Battery House
Power or as a Primary Engine Starting Battery or Main Vehicle
Battery. Lithionics lithium-ion batteries are the ideal
solution for Solar Power Harvesting and Off-Grid Electrical
Energy Storage as they harvest more energy than lead type
batteries.
OPTIONS:
This battery has a built-in "Cold Weather Protection
System":
Lithionics
Internal Lithium-ion Battery Heater Kits Type 1 and
Type 2 for Version 8 external BMS |
Theory
of Operation:
The heater kit is a convecting type heating system
internal the battery or module that applies and
average of 30 Watts per hour (at -4F/-20C continuous
ambient temperatures) and is controlled by a thermostat.
The thermostat maintains the lithium cell/core to
a temperature between 35 and 40 degrees fahrenheit.
This permits sub-freezing charging operations.
|
NOTE:
NOT AVAILABLE FOR STANDARD SERIES BATTERIES.
|
|
OPTIONS:
EXTREME CONDITIONS: We also sell a product called
"Dynaliner"
that is an external thermal protective wrap with a
K Value of 0.3.
This "Dynaliner" material is available
from 0.125" to 0.5" thick
and is non-conductive. This option is recommended for extreme
temperature situations for surrounding the battery compartment.
PRICING:
2.25% Discount For Wire Transfer, Cheque, Debit or Cash
Payments.
Fleet Pricing, and Volume Discounts also
available.
Prices may be lower for in-stock items or for multiple
items
ordered in a single shipment.
* All Prices Subject to Change. Shipping/ Freight is extra.
Notes:
1 Lithium Amp Hour = 2 Lead Acid Amp Hours in 12 Volt
applications,
2.5 Ahr in 24 Volt applications and 3.5 Ahr in
48
Volt applications.
Lithionics Battery Charging Parameters:
For Lithionics 12 Volt lithium-ion
battery systems:
Charge
14.4 Volts. Float 13.4 Volts.
High
Voltage Cutoff (HVC) 14.8 Volts.
Low
Voltage Battery Cut Out: 12.1 Volts
For Lithionics 24 Volt lithium-ion
battery systems:
Charge
28.8 Volts. Float 26.8 Volts.
High
Voltage Cutoff (HVC) 29.6 Volts.
Low
Voltage Battery Cut Out: 24.2 Volts
For Lithionics 48 Volt lithium-ion
battery systems:
Charge
54.0 Volts. Float 50.3 Volts.
High
Voltage Cutoff (HVC) 55.5 Volts.
Low
Voltage Battery Cut Out: 45.4 Volts
For Lithionics 51 Volt lithium-ion
battery systems:
Charge
57.6 Volts. Float 53.6 Volts.
High
Voltage Cutoff (HVC) 59.2 Volts.
Low
Voltage Battery Cut Out: 48.4 Volts
Set the "Absorption Time"
to 30 minutes.
Lithionics Battery charging PDF
For modern, programmable 3rd party
inverter/chargers
etc., we recommend using
"Custom Settings"
- if there
is no provision please Contact
Us.
Lithionics Battery offers several different types of
AC and DC
powered
lithium-ion battery chargers that have been tested
and
work well with the Lithionics batteries.
Click
here
for details on the Lithionics Battery approved
Battery
Chargers...
- Lithionics
Battery Lithium Ion Battery Life:
- 5,800
cycles at 50% Depth of Discharge
- 3,000
cycles at 80% Depth of Discharge
- 2,300
cycles at 90% Depth of Discharge
Note: At the end of the cycles the battery will
still work fine and can last many more years but
may have lost up to 20% of the original Amp hour
capacity.
- Our
batteries typically have a 10 Year+ Service Life
- Warranty
Page...
- Lithium
Ion Battery Industry SAFETY LEADER: Approved to U.N.
International D.O.T. 38.3 for Lithium - many BMS and
battery models also UL approved.
- NEVERDIE
SYSTEM NOTES AND FREQUENCY OF CHARGING:
A.) The "Pushbutton NeverDie System" has a
continuous Amperage draw of 2 Milliamps.
B.) Some of our Lithionics Battery lithium-ion batteries
can be ordered with either "Pushbutton NeverDie
System" (A) which is the BMS built into the battery
or can be ordered with the "External BMS box Pushbutton
NeverDie System" (B). As such, our smaller batteries
will likely need some recharging every 2-4 months to
compensate for the small amperage draw (.002 Amp) of
the NeverDie System. Please be sure to ask about this
at time of ordering or check the Lithionics Storage
Procedure Guidelines.
If your application also has a small "Parasitic
Drain" (clock, alarm system etc.), this must also
be factored in and the battery charged in accordance
with the total amperage draw.
Lithionics
Battery lithium-ion batteries are 97% EFFICIENT FOR SOLAR
POWER. Compare that with only 55% to 85% efficiency
for other types of batteries including deep-cycle lead acid
batteries. Lithionics Battery lithium-ion batteries also
charge from 2 to 10+ times faster than other batteries,
which gives you more use out of your lithium-ion battery.
Visit our
Solar Power page...
We also
offer a great selection of solar panels suitable for RV's,
yachts and sailboats of all sizes - including durable flexible
solar panels that can be walked on.
Battery
Meters/ State-of-Charge
Meters and Gauges are also available at additional cost.
For multiple battery systems, our Neverdie Control Box may
also be required.
|
Pinnacle
Innovations is a Systems Integration Company offering
Lithionics Battery lithium-ion batteries, advanced electrical
components/ solar systems for RV/ Marine/ Off-grid and
Elco electric/ hybrid-electric marine propulsion systems
for sale in the USA, Internationally and all across
Canada including the following cities (and other Canadian
cities): Toronto, Montreal, Calgary, Ottawa, Edmonton,
Mississauga, Winnipeg, Vancouver, Brampton, Hamilton,
Quebec City, Surrey, Langley, Laval, Halifax, London,
Markham, Vaughan, Gatineau, Longeil, Burnaby, Saskatoon,
Kitchener, Windsor, Regina, Richmond, Richmond Hill,
Oakville, Abbotsford, Chiliwack, Burlington, Sudbury,
Sherbrooke, Oshawa, Barrie, Kingston, Cambridge, Coquitlam,
Langley, Whitby, Guelph, Kelowna, Saanich, Victoria,
Nanaimo, Thunder Bay, St. John's, Red Deer, Kamloops,
Fort MacMurray, Fredericton, Grande Prairie, North Bay,
Whistler, Prince George, Pickering, North Vancouver,
Aurora, Shawinigan, Moncton, Saint John, Lethbridge
& more. International Orders are also possible
and are Sales Tax Exempt. |
|
|
|
|
Need
Accessories for Your Lithionics Lithium Ion Battery?
We got you covered...
|
|
|
-
High and Low Frequency
- External & Installed Chargers
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ADDITIONAL NOTES:
** Working Life with batteries equipped with the NeverDie
System that
helps prevents over-discharging.
Refer to the Lithionics
Cycle Life Chart for more details.
"CA" means Continuous Cranking Amps
"CCA" means Cold Cranking Amps
"Ahr" means Amp Hours.
Note: 1 Lithium Ion AHr = 2 Lead Acid AHr in
12 Volt Applications
- the advantage is higher in higher Voltage Lithionics
lithium-ion
battery applications.
Please check our battery sizes to ensure correct
fit Before Ordering
NEVERDIE system included
where shown.
NEVERDIE system option
available at extra cost: Click
here to visit the NeverDie Battery Management Systems
page for full details and pricing
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
You
may ask "What is NEVERDIE?"
NeverDie is
an option that can be ordered with ALL of our batteries
at extra cost. This is a Low Voltage Cutoff (LVC) circuitry
built into the battery that will allow you to use the electricity
in your deep cycle lithium-ion battery with the engine off
and the battery will automatically enter "sleep mode"
once the battery is drawn down to typically 90% discharged.
This means you can use approximately 90% of the energy in
the battery before it enters "sleep mode". This
helps to prevent accidental overdischarging.
If
you order the NEVERDIE Pushbutton, a simple
button will be located on the top of your battery to manually
shut down the battery for storage or to "wake up"
the battery from sleep mode.
IMPORTANT
NEVERDIE NOTES: Please check with your vehicle/ vessel
manufacturer about the effects of disabling the battery. In
Marine Applications for boats that are moored, you should
determine how the NeverDie function may affect safety systems
- particularly Bilge Pump Operation. We now offer a "Dedicated
Bilge Pump" power option. Vist
the Battery Management System page for more information...
or see
the new Bilge Pump Configuration/our latest NeverDie BMS in
Marine Hybrid Magazine October 2013 Article...
|
|
|
|
|
| |
|
|
|
|
|
MORE POWER
|
1/5 WEIGHT OF AGM/ LEAD
|
LONG LIFE
|
ENVIRONMENTALLY FRIENDLY
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
~ Deep Cycle
Lithium
~ Engine Cranking
Lithium
Batteries
~ RV Lithium
Batteries
~ Marine Lithium
Batteries
~ Large Scale
Lithium-ion
Batteries
~ Solar Power
Lithium
Batteries
~ Truck Industry
Lithium
Batteries
|
~ Lithionics
Battery
NeverDie BMS
~ Dual Channel
BMS
~ State of Charge
Monitoring
Systems (SOC)
~ CANbus
Controls
~ Alternator
Controls |
~ Sailboat/ Yacht
Inboard &
Outboard Electric
motors
~ 5hp, 9.9hp, 14hp,
20hp, 30hp &
50hp
electric
outboards
~ 6hp, 12hp, 20hp,
40hp, 70hp and
100hp electric
inboards
~ Lithium-ion
and Victron
Energy
AGM
Batteries |
~ Sailboats
~ Ski Boats
~ Bass Boats
~ Sport
Cruisers
~ Offshore
Racing
Boats
~ Yachts
~ High Output
Alternators
with
External
Wakespeed
or Balmar
Voltage
Regulators |
~ Class A, B & C
Recreational
Vehicle Lithium-ion
Batteries
~ Mercedes Benz
Sprinter
Van
Lithium-ion
Batteries
~ Deep Cycle &
Engine
Cranking
Lithium-ion
Battery Systems
~ High Output
Alternators
with
External
Wakespeed
or Balmar
Voltage
Regulators
|
|
|
A
highly engineered, designed and assembled in the USA,
lightweight, high performance GTX Series Lithionics Battery
12 Volt 320 Amp hour capacity E2107 aluminum battery case
style Lithium Ion Battery for sale across Canada in British
Columbia (BC), Alberta (AB), Saskatchewan (SK), Manitoba
(MB), Ontario (ON), Quebec (QC), New Brunswick (NB), Nova
Scotia (NS), Prince Edward Island (PEI), Newfoundland
(NL), Yukon Territory (YT), Northwest Territory (NT),
Nunavit (NU), Iqaluit, USA. USA & International
Orders are also possible.
Copyright getlithium.com, Lithionics Battery and Respective
Copyright Holders 2022. All rights reserved.
|
|
 |
|
|
|
|
