GTX
Series Lithium Ion Battery and Accessories
All Prices $USD. Contact Us for Shipping/ Freight
Costs.
|
|
|
|
|
Battery
Model
|
Applications
|
Volts
|
Watt
Hours
|
RC
Mins
|
Ahr
|
Weight
|
Size
|
Lithionics
Battery Price*
|
Lithionics
Battery GTX 12V 315A
E2107-CS200 Lithium-ion Battery
Lithionics
Battery 12 Volt Lithium-ion Battery
UN DOT 38.3 & other ratings
|
Mercedes
Benz Sprinter Vans, Off-Grid, RV, Industrial Energy Systems,
Trucks, Solar Power Systems
|
12.8
|
|
|
315
NOTE:
Now
has 320 Amp hours capacity
|
|
20.3" x 6.4" x 10" overall height. Add extra height
for cabling.
|
|
|
|
Visit
the current page with 320 Amp hours capacity and the updated
spec sheet
Price
includes the internal Lithionics automated heater system
AND the Bluetooth SOC/ Battery Monitor System (over a $500.00
USD value at no extra charge).
A
powerful, lightweight, high performance Lithionics Battery
GTX Series 12 Volt 320 Amp hour capacity E2107 aluminum
battery case Lithium Ion Battery with 4,032 Total Watt Hours
capacity and built-in CS series 200 Amp BMS. High cranking
Amps means this is a dual purpose deep cycle and engine
cranking LiFePO4 battery. Please inform us of the intended
orientation of the battery before ordering.
NEW:
If you need the CANbus capabilities of this battery and
you have limited space above the battery, we now offer the
following 90 degree M12 special adapter cable that will
reduce the "plugged in height":
NOTES:
1. Heater Function:
When the battery is turned Off (for Winter storage etc.)
this also turns off the battery's internal heater system
so that the battery does not deplete when stored in cold
temperatures. Refer
to the Lithionics Storage Procedures PDF for storage instructions.
2. Alternator Charging:
The long-term effects of constant charging from "unregulated/
controlled alternators" are indicating possible degradation
of lithium-ion batteries. As such, we only recommend directly
connecting a Lithionics battery system to a high quality
alternator that connects to either a Wakespeed or Balmar
branded external Voltage Regulator that can offer proper
3 stage charging AND the Lithionics BMS option "FCC"
can turn off the alternator when the lithium battery is
full. For alternators that are "shared" and need
to charge a lead-acid/ AGM start battery as well as the
Lithionics battery we recommend using a high quality DC
to DC Battery Charger like those made by Sterling Power
(ignition enabled option) that will connect to your start
battery and feed the Lithionics Battery. Please consult
Pinnacle Innovations and we will be happy to specify how
best to achieve alternator charging and we can also supply
any parts needed - such as DC to DC Battery Chargers, Wakespeed
or Balmar branded external Voltage Regulators and high efficiency
battery isolators by Perfect
Switch. Contact Us
Page...
3. Although this battery can power a 3,000 Watt inverter-charger
it is really pushing the limit of the 200 constant Amp rated
internal BMS (can handle 250 Amps for short periods) as
at 3,000 Watts output the inverter can draw almost 240 Amps.
As such, we either recommend using two of the GTX 315 Amp
hour batteries or that you program the inverter's output
downwards to say 2,500 Watts.
4. We also offer an illuminated remote on/off/reset
switch that lets you control the battery from a convenient
location. It comes with 15 feet of wire - we can make that
length longer for a small additional fee. It sells for $134.64
USD.
If
you have been looking at far lower quality competitor's
100 Amp hour Group 31 style lithium batteries, you will
find that this Lithionics battery will far outperform the
competitor's Chinese B and C grade product, has far greater
safety/ usability, is equal to more than 3 of those 100
Amp hour batteries, is not just deep cycle like the competitors
(you can also use this dual purpose Lithionics battery for
engine cranking) and is priced very well in comparison.
Learn more about what to look for when comparing lithium
batteries on our "Beware
Low Cost Competitor Batteries" page.
|
Click
on the PDF logo to the right to view how this Lithionics
Battery compares to low cost/ low quality Competitor
lithium-ion batteries that just don't measure up and
lack safety.
|
|
Options:
-
IONGAUGE
From $545.54 USD total.
If you plan to install two of these batteries in parallel
and/ or you want to tie the battery monitoring into your
RVC/ CANbus systems monitoring equipment you'll want to
consider this.
Full
details on our BMS page...
- Automated
Type 1 internal heating kit. Automatically uses battery
power to keep battery above 0 Celsius (turns on at 2 Celsius/
35 Fahrenheit) so it is ready for use any time. Please
discuss with us how this works. Now included in the $4,499.00
USD Base Price.

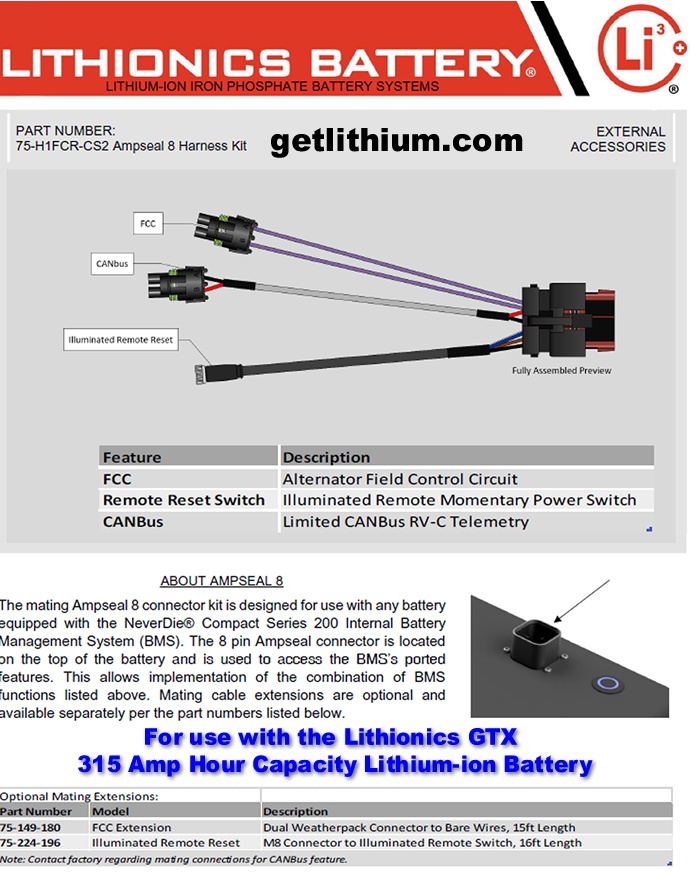

- Ampseal
connector for accessories. Price: Add $137.00 USD plus
the option leads. Part # 75-H1FCR-CS2.
- Remote
illuminated LED On/Off button with 16 feet of cable. Part
# 75-224-196. Price: Add $169.42 USD. This is a good idea
if the battery is located in a hard to reach place.
- FCC
alternator interface 15 foot extension lead for dedicated
alternator with external Balmar style Voltage regulator.
Part # 75-149-180. Price: Add $39.44 USD.
- CANbus
15 foot extension cable. Part # 75-1118-180. Price: Add
$39.44 USD. CANbus RV-C Telemetry for Silverleaf, Spyder
and Firefly multiplexing systems.
We
also offer a GTX Series 275,
555,
1,050
and a 1,260
Amp hour lithium-ion battery module.
|
Click
on the PDF logo to the right to view the Lithionics
User Guide for this GTX 12 Volt high performance Lithionics
lithium-ion battery system with built-in NeverDie
Battery Management System
|
|
|

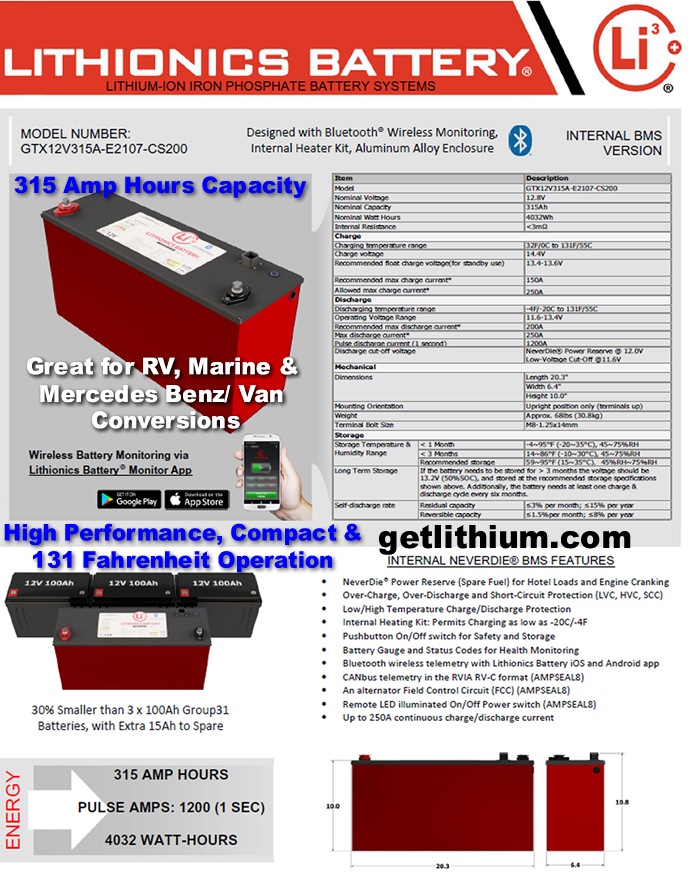

Click
on the PDF logo to the right for the Lithionics Battery
spec sheet in PDF format.
The Lithionics Batteries are "lithium-ion"
which is the short term for lithium iron phosphate
and the chemistry name for the batteries is the super
safe and reliable "LiFePO4".
|
|
|
Click on the PDF logo to the right to view the Lithionics
Battery Battery Charger Approved Settings Guide
|
|
This
extremely versatile battery can be used for a wide variety
of applications including Deep Cycle House Power for RV
and Marine applications, Solar System battery, Industrial
Project battery as well as a diesel engine cranking battery
for Truck Engines and for Marine Engine Starting on sailboats
and yachts. Internal NeverDie Battery Management System
(BMS) rated at 200 Amps included. BMS
details page...
This
battery is a dual-use battery: Deep Cycle Battery House
Power or as a Primary Engine Starting Battery or Main Vehicle
Battery. Lithionics lithium-ion batteries are the ideal
solution for Solar Power Harvesting and Off-Grid Electrical
Energy Storage as they harvest more energy than lead type
batteries.
OPTIONS:
EXTREME CONDITIONS: We also sell a product called
"Dynaliner" that is an external
thermal protective wrap with
a K Value of 0.3.
This "Dynaliner" material is available
for 0.125" to 0.5"
thick and is non-conductive.
PRICING:
2.25% Discount On Lithionics Battery Purchases For
Wire Transfer, Cheque, Interac Bank Email Transfer
(Canada Only) or Cash Payments.
Fleet Pricing, and Volume Discounts also available.
Prices may be lower for in-stock items or for multiple
items ordered in a single shipment.
* All Prices Subject to Change. Shipping/ Freight is extra.
Notes:
1 Lithium Amp Hour = 2 Lead Acid Amp Hours in 12 Volt applications,
2.5 Ahr in 24 Volt applications and 3.5 Ahr in 48 Volt applications.
Lithionics Battery Charging Parameters:
For Lithionics 12 Volt lithium-ion
battery systems:
Charge
14.4 Volts. Float 13.4 Volts.
High
Voltage Cutoff (HVC) 14.8 Volts.
Low
Voltage Battery Cut Out: 12.1 Volts
For Lithionics 24 Volt lithium-ion
battery systems:
Charge
28.8 Volts. Float 26.8 Volts.
High
Voltage Cutoff (HVC) 29.6 Volts.
Low
Voltage Battery Cut Out: 24.2 Volts
For Lithionics 48 Volt lithium-ion
battery systems:
Charge
54.0 Volts. Float 50.3 Volts.
High
Voltage Cutoff (HVC) 55.5 Volts.
Low
Voltage Battery Cut Out: 45.4 Volts
For Lithionics 51 Volt lithium-ion
battery systems:
Charge
57.6 Volts. Float 53.6 Volts.
High
Voltage Cutoff (HVC) 59.2 Volts.
Low
Voltage Battery Cut Out: 48.4 Volts
Set the "Absorption Time"
to 30 minutes. Lithionics
Battery charging PDF
For modern, programmable 3rd party
inverter/chargers etc., we
recommend using "Custom
Settings" and follow our Charger
Instruction PDF Guide but
disable "equalization".
If in doubt, please Contact
Us.
Lithionics Battery offers several different types of
AC and DC powered lithium-ion battery chargers that have
been tested and work well with the Lithionics batteries.
Click
here
for details on the Lithionics Battery approved Battery Chargers...
- Lithionics
Battery Lithium Ion Battery Life:
- 5,800
cycles at 50% Depth of Discharge
- 3,000
cycles at 80% Depth of Discharge
- 2,300
cycles at 90% Depth of Discharge
Note: At the end of the cycles the battery will
still work fine and can last many more years but
may have lost up to 20% of the original Amp hour
capacity.
- Our
batteries typically have a 10 Year+ Service Life
- Warranty
Page...
- Lithium
Ion Battery Industry SAFETY LEADER: Approved to U.N.
International D.O.T. 38.3 for Lithium - many BMS and
battery models also UL approved.
- NEVERDIE
SYSTEM NOTES AND FREQUENCY OF CHARGING:
A.) The "Pushbutton NeverDie System" has a
continuous Amperage draw of 2 Milliamps.
B.) Some of our Lithionics Battery lithium-ion batteries
can be ordered with either "Pushbutton NeverDie
System" (A) which is the BMS built into the battery
or can be ordered with the "External BMS box Pushbutton
NeverDie System" (B). As such, our smaller batteries
will likely need some recharging every 2-4 months to
compensate for the small amperage draw (.002 Amp) of
the NeverDie System. Please be sure to ask about this
at time of ordering or check the Lithionics Storage
Procedure Guidelines.
If your application also has a small "Parasitic
Drain" (clock, alarm system etc.), this must also
be factored in and the battery charged in accordance
with the total amperage draw.
Lithionics
Battery lithium-ion batteries are 97% EFFICIENT FOR SOLAR
POWER. Compare that with only 55% to 85% efficiency
for other types of batteries including deep-cycle lead acid
batteries. Lithionics Battery lithium-ion batteries also
charge from 2 to 10+ times faster than other batteries,
which gives you more use out of your lithium-ion battery.
Visit our
Solar Power page...
We also
offer a great selection of solar panels suitable for RV's,
yachts and sailboats of all sizes - including durable flexible
solar panels that can be walked on.
Battery
Meters/ State-of-Charge
Meters and Gauges are also available at additional cost.
For multiple battery systems, our Neverdie Control Box may
also be required.
|
|
|
|
|
|
|
|
|
|
|
|
A
powerful, reliable alternative to Torqeedo
Electric Outboards - the EP series of Elco
Electric
Outboard Motors!
|
|
Pinnacle
Innovations is a Systems Integration Company offering
Lithionics Battery lithium-ion batteries, advanced electrical
components/ solar systems for RV/ Marine/ Off-grid and
Elco electric/ hybrid-electric marine propulsion systems
for sale in the USA, Internationally and all across
Canada including the following cities (and other Canadian
cities): Toronto, Montreal, Calgary, Ottawa, Edmonton,
Mississauga, Winnipeg, Vancouver, Brampton, Hamilton,
Quebec City, Surrey, Langley, Laval, Halifax, London,
Markham, Vaughan, Gatineau, Longeil, Burnaby, Saskatoon,
Kitchener, Windsor, Regina, Richmond, Richmond Hill,
Oakville, Abbotsford, Chiliwack, Burlington, Sudbury,
Sherbrooke, Oshawa, Barrie, Kingston, Cambridge, Coquitlam,
Langley, Whitby, Guelph, Kelowna, Saanich, Victoria,
Nanaimo, Thunder Bay, St. John's, Red Deer, Kamloops,
Fort MacMurray, Fredericton, Grande Prairie, North Bay,
Whistler, Prince George, Pickering, North Vancouver,
Aurora, Shawinigan, Moncton, Saint John, Lethbridge
& more. International Orders are also possible
and are Sales Tax Exempt. |
|
|
|
|
Need Accessories for Your
Lithionics Lithium Ion Battery?
We got you covered...
|
|
|
-
High and Low Frequency
- External & Installed Chargers
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ADDITIONAL NOTES:
** Up to 20 Year Working Life possible with batteries
equipped with the NeverDie System
that prevents over-discharging.
"CA" means Continuous Cranking Amps
"CCA" means Cold Cranking Amps
"Ahr" means Amp Hours.
Note: 1 Lithium Ion AHr = 2 Lead Acid AHr in
12 Volt Applications
"EXT" means Extended Height battery
"RH" means Reduced Height battery
Please check our battery sizes to ensure correct
fit Before Ordering
NEVERDIE system included
where shown.
NEVERDIE system option
available at extra cost.
Click
here to visit the NeverDie Battery Management Systems
page for full details and pricing.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
You
may ask "What is NEVERDIE?"
NeverDie is
an option that can be ordered with ALL of our batteries
at extra cost. This is a Low Voltage Cutoff (LVC) circuitry
built into the battery that will allow you to use the electricity
in your deep cycle lithium-ion battery with the engine off
and the battery will automatically enter "sleep mode"
once the battery is drawn down to typically 90% discharged.
This means you can use approximately 90% of the energy in
the battery before it enters "sleep mode". This
helps to prevent accidental overdischarging.
If
you order the NEVERDIE Pushbutton, a simple
button will be located on the top of your battery to manually
shut down the battery for storage or to "wake up"
the battery from sleep mode.
IMPORTANT
NEVERDIE NOTES: Please check with your vehicle/ vessel
manufacturer about the effects of disabling the battery. In
Marine Applications for boats that are moored, you should
determine how the NeverDie function may affect safety systems
- particularly Bilge Pump Operation. We now offer a "Dedicated
Bilge Pump" power option. Vist
the Battery Management System page for more information...
or see
the new Bilge Pump Configuration/our latest NeverDie BMS in
Marine Hybrid Magazine October 2013 Article...
|
|
|
|
|
| |
|
|
|
|
|
MORE POWER
|
1/5 WEIGHT OF AGM/ LEAD
|
LONG LIFE
|
ENVIRONMENTALLY FRIENDLY
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
~ Deep Cycle
Lithium
~ Engine Cranking
Lithium
Batteries
~ RV Lithium
Batteries
~ Marine Lithium
Batteries
~ Large Scale
Lithium-ion
Batteries
~ Solar Power
Lithium
Batteries
~ Truck Industry
Lithium
Batteries
|
~ Lithionics
Battery
NeverDie BMS
~ Dual Channel
BMS
~ State of Charge
Monitoring
Systems (SOC)
~ CANbus
Controls
~ Alternator
Controls |
~ Sailboat/ Yacht
Inboard &
Outboard Electric
motors
~ 5hp, 9.9hp, 14hp,
20hp, 30hp &
50hp
electric
outboards
~ 6hp, 12hp, 20hp,
40hp, 70hp and
100hp electric
inboards
~ Lithium-ion
and Victron
Energy
AGM
Batteries |
~ Sailboats
~ Ski Boats
~ Bass Boats
~ Sport
Cruisers
~ Offshore
Racing
Boats
~ Yachts
~ High Output
Alternators
with
External
Wakespeed
or Balmar
Voltage
Regulators |
~ Class A, B & C
Recreational
Vehicle Lithium-ion
Batteries
~ Mercedes Benz
Sprinter
Van
Lithium-ion
Batteries
~ Deep Cycle &
Engine
Cranking
Lithium-ion
Battery Systems
~ High Output
Alternators
with
External
Wakespeed
or Balmar
Voltage
Regulators
|
|
|
A
powerful, lightweight, high performance Lithionics Battery
GTX Series 12 Volt 320 Amp hour capacity E2107 aluminum
battery case Lithium Ion Battery for sale Internationally,
across the USA and Canada including British Columbia (BC),
Alberta (AB), Saskatchewan (SK), Manitoba (MB), Ontario
(ON), Quebec (QC), New Brunswick (NB), Nova Scotia (NS),
Prince Edward Island (PEI), Newfoundland (NL), Yukon Territory
(YT), Northwest Territory (NT), Nunavit (NU) and Iqaluit.
Copyright
getlithium.com, Lithionics Battery and Respective Copyright
Holders 2022. All rights reserved.
|
|
 |
|
 |
|
|
