FOR ELCO MOTOR YACHT: EP20
ELECTRIC INBOARD MARINE PROPULSION SYSTEM
|
|
|
|
Pure Electric Marine Propulsion
and Hybrid Diesel-Electric Marine Propulsion Systems
|
|
|
|
The
Elco EP-20 is the mid-range level electric marine propulsion
system - perfect for boats 25 feet to 40 feet. Combining affordability
and environmentally clean and efficient marine propulsion. With
direct drive compatibility, it is an easy refit or an even easier
built-in option for new boats under construction. The Elco inboard
motors typically run peak power at 1,500 RPM which can be sustained.
For short periods, the motor can run at 1,800 RPM. 50,000 hours
is the service life of the inboard motors -they have one moving
part. NEW: The EP20 now uses a 48 Volt Battery System.
With
advances in lithium-ion battery technology provided by Lithionics
Battery, we are now able to offer Complete Plug and Play
Marine Electric Propulsion Systems. When purchasing an Elco
E-Power System, you're not just receiving a motor, you're purchasing
all the essential components to power the vessel with electric
propulsion and we provide the Lithionics Battery lithium-ion
batteries.
Hybrid electric systems can offer extended range and are optional.
Hybrid details below...
Battery
System:
Please note that the Elco motors as priced do not include a
battery system. Customers can source their own deep cycle battery
system or we can offer a variety of battery
systems. More information below...
|
Suggested
Horsepower
Replacement
Range
|
Elco
Electric Motor System
|
Details
|
Graphic
(not exactly as shown)
|
Pricing
(all figures USD)
|
|
15
to 25
Horsepower
|
Elco
EP20 |
Add
$448.00 USD for basic remote
throttle lever option. |
|
From
$6,790.00* without charger
*Add
$300.00 USD for shipping crate.
|
| |
Boat
size ranges |
25' to 40' |
| |
Horsepower
diesel equivalency |
20
h.p. |
| |
Miles
per gallon equivalency |
50
mpg |
| Click

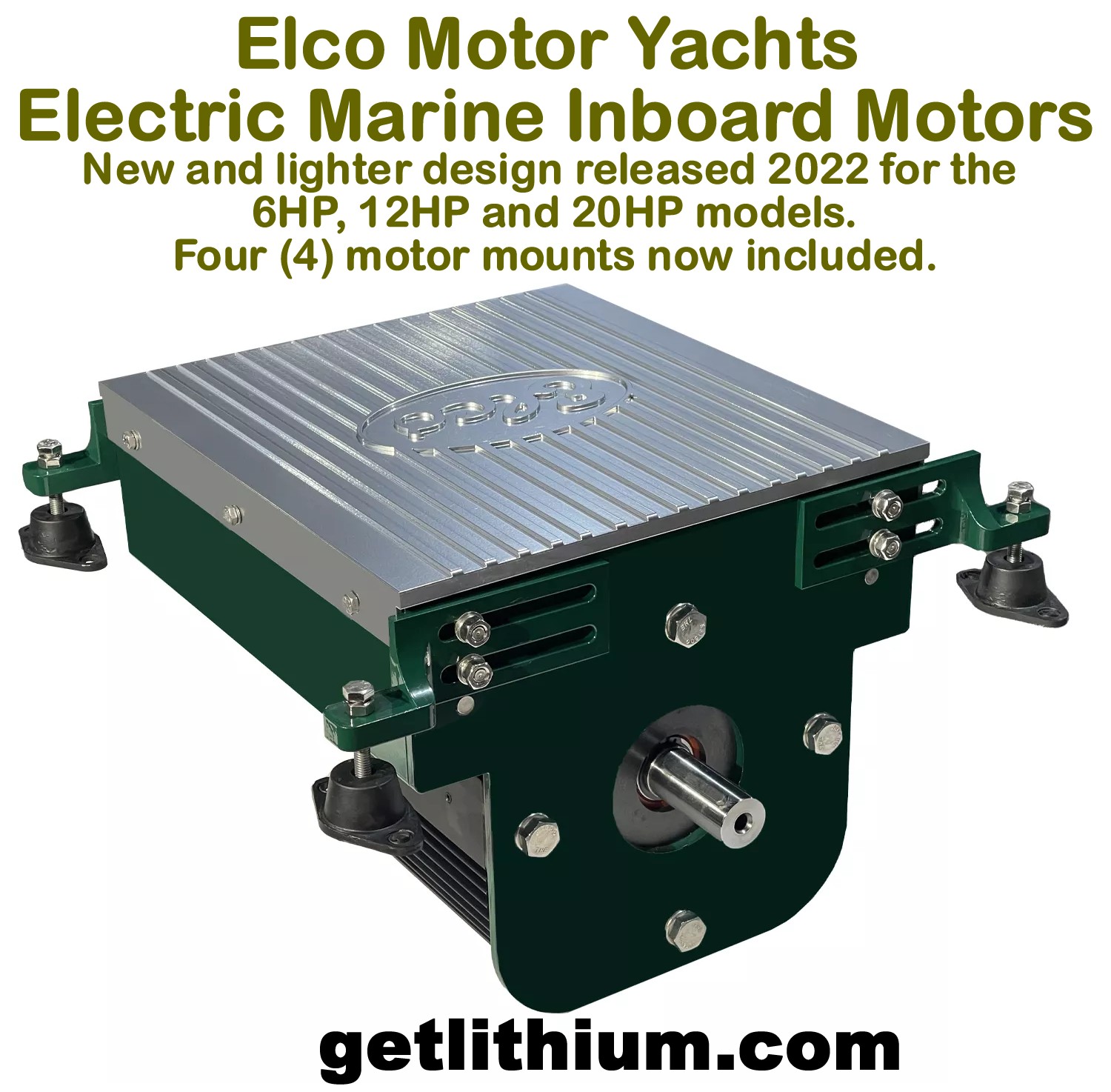

on the Elco inboard motor images below for
a larger image in a new window: |
|
|
|
|
|
|
|
|
|
|
The
Elco EP20 kit comes with motor mounts, key switch, power On light
and 15 foot long wire harness and AC controller. The Elco E-Gauge
VII will not connect to this motor so we suggest for full battery
systems monitoring that we supply you with the Victron Energy
BMV 712 Smart Bluetooth App enabled State of Charge (SOC) battery
monitoring gauge kit.
EP20
MOTOR/ SIZING SPECIFICATIONS
|
|
Note:
When in doubt, choose the next size motor up.
|
|
|
|
|
Boat
size ranges
|
|
25'
to 40' |
|
|
|
|
|
Horsepower
diesel equivalency
|
|
20 h.p. |
|
|
|
|
|
Suggested
horsepower replacement range
|
|
15 - 25 h.p. |
|
|
|
|
|
Motor
Voltage
|
|
48 Volts DC |
|
|
|
|
|
Continuous
kW
|
|
10 kW |
|
|
|
|
|
Miles
per gallon equivalency
|
|
50 mpg |
|
|
|
|
|
Length
|
|
13.9
inches |
|
|
|
|
|
Width
|
|
12.7
inches |
|
|
|
|
|
Height
|
|
11
inches |
|
|
|
|
|
Weight
|
|
72
lbs |
|
|
|
|
|
Motor
Shaft Details
|
|
The
motor output shaft diameter is 1.125 inches and the motor
keyway measures 0.25" x 0.25" x 2.0" long. |
|
|
|
|
|
ELCO
EP SERIES WARRANTY:
Limited Warranty, 2 years labour, 3 years parts
|
|
|
|
|
|
Elco
Motor Kit Options
|
|
Options
Pricing ($USD) |
|
|
|
|
Victron
Energy BMV 712 Smart Bluetooth App enabled State of
Charge (SOC) battery monitoring gauge kit. Use with
Lead-acid or AGM batteries.
|
|
Add $243.00* |
|
|
|
|
|
Motor
Mounts Set of four (4)
These light weight engine mounts are
specifically designed dampen vibration while also providing
high resistance to movement caused by dynamic loads, such
as propeller thrust and lateral loads experienced in your
boat applications.
|
|
Now
included in the motor price*
See
pics above.
|
|
|
|
|
Female
Coupler for Motor
|
|
Contact
Us about a Bruntons SIGMA Drive CV Joint couplers
available at additional cost.
- SD55:
$651.00 Euro. Fits 7/8" to 1 1/4" shafts.
- SD100:
$973.00 Euro. Fits 1 1/4" to 1 3/4" shafts.
- SD150:
$1,862.00 Euro. Fits 1 3/4" and 2" shafts.
- SD225:
$2,464.00 Euro. Fits 1 3/4" to 2 1/4" shafts.
- SD
300: $3,206.00 Euro. Fits 2" to 2 1/2" shafts.
- Note:
Prices subject to 20% UK VAT and inbound shipping
costs.
- PDF
Datasheet
We
also offer The Autoprop Eco*Star line of propellors -
perfect for electric yachts and sailboats.
|
|
|
|
|
Male
Coupler for Prop Shaft
|
|
Contact
Us about a SIGMA Drive CV Joint couplers available
at additional cost.
|
|
|
|
|
|
|
|
|
|
ELECTRIC
SYSTEM
|
|
|
|
|
|
|
|
Cruising
speed 60% - 80% of hull speed
|
|
5.5
- 7 knots |
|
|
|
|
|
Cruising
time 60% - 80% of hull speed
|
|
6 - 3 hours
(more with lithium-ion batteries)
|
|
|
|
|
|
Cruising range 60% - 80% of hull speed
|
|
34 - 19 Nautical Miles
(more with lithium-ion batteries) |
|
|
|
|
|
Recharging
time for standard charger
(shore power-50% depth of discharge)
|
|
4 - 5 hours
(faster with lithium-ion batteries)
|
|
|
|
|
|
Recharging
time for quick charger
(shore power-50% depth of discharge)
|
|
3
- 4 hours
(faster with lithium-ion batteries)
|
|
|
|
|
|
Maximum
Operating Voltage
|
|
69 Volts DC |
|
|
|
|
|
Minimum
Operating Voltage
|
|
40
Volts DC |
|
|
|
|
Number
of 12 volt 8-D lead batteries (245 Ah)
We
can also source a more economical Chinese brand of lithium-ion
battery from Elco.
These are very simple and can be connected in parallel
for larger packs. The 100 Amp hour version at 51.2 Volts
sells for $2,900.00 USD each. The brand name is UBetter
and these have a very limited, restrictive warranty
on the cells only. Their internal BMS does come with
an On/Off/ Reset button.
The
100 Amp hour model measures 25" x 9.8" x 9"
and weighs 101 pounds. These can also be wired in Series
to serve the 96 Volt EP30 and EP50 motors.
We
can also supply the NOCO 48 Volt charger for $610.00
USD. The GX 4820 model outputs 20 Amps of 51.2 Volt
charging current and comes with 76 inch long 12 AWG
DC output power cables with 3/8" ring connectors
on the end. There is also an onboard 50 Amp DC fuse.
You can parallel connect more than 1 of these chargers
for faster charging.
|
|
This
is a 48 Volt DC Motor.
Four
12 Volt AGM batteries wired in series (additional cost).
This motor needs a 48 Volt battery system sold separately.
AGM battery system minimum size is 165 Amp hours ($542.32
USD each) and the 220 Amp hour model is $698.00 USD each
(Four 12 Volt needed). Lithium-ion battery system minimum
size is 150 Amp hours capacity.
View Lithionics 51 Volt lithium-ion battery options...
|
|
|
|
|
|
Amps
(maximum)
|
|
208
Amps |
|
|
|
|
|
Kilowatts
(maximum full power from lead batteries)
|
|
10
kW |
|
Kilowatts
(maximum full power from lithium batteries)
|
|
10
kW |
|
|
|
|
|
Number
of chargers required
|
|
1
charger |
|
|
|
|
|
Charger
|
|
AGM Charger - NOCO GEN4 add $525.00 USD.
Generic Lithium Charger - NOCO GX4820 add $720.00 USD.
If using Lithionics lithium-ion batteries we will provide
you with the correct charger. |
|
|
|
|
|
Quick charger (optional)
|
|
Contact Us for higher power options. |
|
|
|
|
|
Throttle
Choices
|
|
|
Top-mount
remote throttle.
Add $646.00 USD for the single top-mount throttle
as shown in the photo |
Wall-mount
remote throttle.
Basic remote throttle lever option that mounts vertically
beside the driver seat (can mount on either side
of the boat).
$448.00 USD |
|
How
do you determine the Hull Speed of your boat?
This
is a commonly asked important question (mostly applies
to larger boats such as sailboats, cabin cruisers
and ships > 30 feet) because we really use the
resulting figure to let most Clients know what speed
will be most efficient for their application (generally,
going at Hull Speed/ Slow Speed is the most efficient)
and we can also use this information to determine
battery pack size.
To
figure out Displacement Hull Speed you take the
square root of the waterline and multiply it against
1.3 which will give you top speed in knots.
EXAMPLE: The water line is 25 ft so the square root
of 25 is 5 so you multiply 5 X 1.3 = 6.5 knots Hull
Speed.
If
we correctly apply this formula and select the correct
motor size the boat will run at 60% to 80% full
throttle. Adding more throttle on displacement hulls
greatly increases the power consumed with very little
additional speed.
|
|
Do
you need a "Series Battery Connection Harness"?
Pinnacle Innovations will be more than happy to
supply you with a high quality Custom Made Series
Battery Wiring Harness using Amercian made tinned
copper marine power cabling, tinned copper marine
cable ends with round eyelet holes, adhesive backed
heavy duty marine heat shrink tubing and the matching
Elco motor quick disconnector cable end.
We
also only use the much higher rated Class T fuse
sets made by Blue Sea Systems instead of ANL or
MEGA fuses (the ANL and MEGA Fuse holders are primarily
plastic, can overheat and come apart causing a dangerous
situation). We can also make the cables whatever
length that you may need and if you need the cables
to be longer than the standard 82" we can also
look at using larger diameter power cable.
Available
for Both Elco Inboards and Outboards and This Kit
Ships from Pinnacle Innovations, Langley, BC, Canada.
|
|
|
|
Do
you need a high Voltage DC Disconnect Switch(s)?
According
to the ABYC Marine Electrical Code Book, the answer
is "YES". For all electric propulsion
maritime vessels it is required to have a manual
disconnect switch for the motor/ battery system
that can handle both the Voltage of the Elco motor
system as well as the maximum Amperage of the Elco
motor.
If
you would like, we can also supply you with 1 or
2 of the appropriate DC Disconnect Switches to make
your Elco motor system installation complete and
up to ABYC Standards. The actual ABYC Code stipulates
that we in fact should have two DC disconnects -
one for the main positive and one for the main negative
power cables.
1,000
Volt Model: $260.00 USD
|
|
|
|
|
|
|
HYBRID
ELECTRIC SYSTEM - OPTIONAL
|
|
 |
|
|
|
|
|
Adding
an appropriately sized generator and charger(s) will provide
continuous cruise
Generator kilowatt size (AC or DC) for continuous cruise
at 60% - 80% of hull speed
Additional
kilowatts should be added depending on house loads (1,000
watts equals 1kW)
|
|
2.5
- 5 kW |
|
|
|
|
|
Typical
fuel tank capacity for generator (gallons)
|
|
30 gal |
|
|
|
|
|
Cruising speed 60% - 80% of hull speed
|
|
5.5 - 7 knots |
|
|
|
|
|
Cruising
time 60% - 80% of hull speed
|
|
98 - 58 hours |
|
|
|
|
|
Cruising
range 60% - 80% of hull speed
|
|
548
- 406 Nautical Miles |
|
|
|
|
|
Number
of 12 volt 8-D batteries (245 Ah)
|
|
4
batteries |
|
|
|
|
|
Battery
bank voltage
|
|
48
Volts DC |
|
|
|
|
|
Number
of chargers required
|
|
1
charger |
|
|
|
|
|
Charger
|
|
Please consult with us for charger options. |
|
|
|
|
|
|
|
 |
|
|
|
|
|
Generator Options:
|
|
Polar Power DC diesel generators with 4kW to 8kW.
Northern Lights M673D3 (5kW) |
|
|
|
|
Polar
Power DC diesel generators with anywhere from 4kW to about
26kW output. Perfect for use with Elco motors when long
distance electric power is needed for mid-size boats.
Click
here for the Polar DC generators webpage...
Far
more efficient DC direct battery charging - perfect for
Elco electric marine motors.
|
|
|
|
|
|
|
EP-20
Hybrid Generator Northern Lights M673D3 (5kW)
Northern
Lights marine generators are powered by rugged and proven
Lugger diesels. These generators provide unmatched quality
and reliability. High copper content within the brushless
generator end enables motor starting. Maintenance is
quick and easy. Most service points are arranged on
a common side to put regular maintenance points at your
fingertips.
Click
here for a larger image...
|
|
$12,789.00
(USD)*
|
|
|
|
|
Battery
System:
Please note that the Elco motors as priced do not
include a battery system. Customers can source their
own deep cycle battery system or we can offer a
variety of battery systems:
- Lead-acid
batteries: lowest cost, heavy, bulky, require
maintenance, lowest life expectancy/ cycle life
(up to about 600 cycles)
- AGM
batteries: moderate cost, heavy, bulky, require
less maintenance, improved life expectancy/ cycle
life (up to 1,000 to 1,200 cycles)
- Lithionics
lithium-ion batteries: best overall system
with highest performance, next to zero maintenance,
lightweight, compact and exceptional life expecatncy
- up to 5,800 cycles at 50% discharge rate. The
only downside is these batteries cost significantly
more than lead-acid batteries.
In
order for us to specify and quote a battery system
we ask that you provide us the following information:
- For
how many hours per day do you want to be able to
cruise?
- At
approximately what % of full throttle do you expect
to use on average?
- What
is the weight and size of your boat?
- What
are the physical dimensions of the battery area
that you have?
- Please
tell us about the electrical outlet(s) you have
access to to plug the battery charger into. Example:
110 Volt AC outlet on a 15 Amp circuit breaker 100
feet away from the boat.
- Please
let us know if you have any roof or deck space available
for possible rigid or semi-flexible solar panels
and the dimensions of such areas.
With
this information we can then calculate the Amp hours
of battery capacity required to give you the desired
running time before recharging. Depending on your budget
and other factors we can then quote you some battery
options. Please keep in mind that to be able to run
all day at a high percentage of throttle may require
a substantial battery bank. For many small boats (under
25 feet) we can provide an economical battery system
that can provide a few hours enjoyment but many small
boats (such as a 10 foot tender boat) may not have enough
available space or carrying capacity for a battery bank
that can run the motor more than 1 or 2 hours at high
throttle.
For
applications that require longer running times the most
economical way to go may be what we call a "hybrid-electric
battery system" where we can decrease the size
and cost of the battery system by adding a Polar Power
DC diesel generator or other type of generator.
Elco
Electric Outboard Motor Service Notes:
In the unlikely event that something goes wrong with
the Elco electric inboard or outboard marine motor there
are lights that flash on the electric controller (located
under the engine cover on the top of the motor) and
that tells us what is wrong. It really depends on what
the controller tells us as to whether the motor can
be repaired quickly and easily locally or if it needs
to go back to Elco for repair.
Elco
Inboard Motors:
Please read the instruction manual on the inboards (click
on PDF link below). We will help with a correct prop
solution: we need the boat specs and what the diameter
of the prop that the owner wants to use. It is very
important that the pitch is correct other wise the motor
will not function correctly - you can either go in over
Voltage or under Voltage and you will not get the performance
that you should from the motor and this can cause problems.
There is a procedure that is in the manual for the inboards
– you need to water test and take down the speed you
are going and the rpms and the Amps the motor is pulling
(all that is displayed on the display that come with
the unit but you will have to use a hand held GPS to
get the speed data) at first low speed, then half throttle
and then full throttle. This will tells us if the pitch
is correct and you are getting full Horsepower and reaching
1,500 RPM.
|
|
|
|
|
|
|
|
|
Elco
EP Electric Inboard Boat Motor Benefits
No
exhaust fumes produced
Silent
motor operation: No noise pollution
Recyclable
batteries
Very
small carbon footprint if charged by the solar or wind power options
Cruise
all day and charge the batteries overnight for just pennies
The
motor fits standard engine mounts
Never
needs a tune-up; no need to winterize
Available
for conventional shaft connection applications and sail drive
units
The
motor is water and particle resistant
The
patented enclosure ensures that the motor runs cool so it will
not heat up the cabin
Great
reliability, with an operational service life of 50,000+ hours
before scheduled maintenance
More
than twice the cruising range than an equivalent diesel engine
in a hybrid system
|
|
|
|
|
|
|
|
|
|
|
|
|
What size Elco Electric Inboard
Marine Motor is right for my boat?
There is some overlap between motor and boat sizes so choosing
the right size motor for you and your vessel can sometimes require
some personal expertise to make the right choice. In selecting
the correct size electric motor, some general tips are - in areas
with strong tides and currents, choose the next larger size motor,
and the same goes for weight - if your boat is heavy for its length,
choose the next size up.
Elco
Motor Yacht has also developed a robust and easy motor coupling
system to allow for twin or triple motor installations. This can
be used when a vessel exceeds 85 feet or if you need a faster
cruising speed. Please contact us about the motor coupling
option
by email.
The
table below serves a good starting point for most boaters. The
table also gives boaters an idea of what sort of investment they
will be looking at.
|
|
|
|
|
|
| |
Why is our electric motor the most
efficient?
The AC induction motor is more efficient than its DC counterpart
by a factor of 20% to 40%, depending on the load. It creates a
lot more torque, accelerates faster, and since it has no mechanical
connections, other than the ball bearings at each end of the rotor,
maintenance is minimal. In short, it is a simple, rugged and reliable
design.
Furthermore,
an AC motor is more receptive to electrical regeneration - it
naturally wants to regen.
Propeller
Regeneration - Your dragging propeller is an energy resource.
Tap this energy to 'top off' the batteries while under sail.
ELCO
MOTOR YACHTS - YOU CHOOSE WHICH SYSTEM IS BEST
Pure
Electric
With the pure electric configuration, an electric motor powered
by batteries drives the propeller shaft. This system is ideal
for day cruises in displacement and semi-displacement boats such
as sailboats, launches, tenders and sloops. Installation is simple,
and the motor fits most standard engine mounts. The batteries
can be strategically positioned to keep the boat balanced.
Hybrid Electric Serial
Similar to the pure electric configuration, the electric motor
drives the propeller shaft directly. The difference is the addition
of a gas or diesel generator, which has no direct connection to
the propeller shaft. Instead, the generator powers the motor and
charges the batteries. This provides boaters with the option of
running the motor strictly off battery power for a quiet, clean
boating experience, or switching to the generator when the batteries
are low. The serial hybrid-electric configuration is great for
boaters who go on day cruises and want to have a backup power
supply should a trip take longer than battery power alone can
sustain.
Hybrid
Electric Parallel - Due to the complexity and costs involved Elco
only offers this OEM boat manufacturers.
The parallel hybrid-electric configuration features a diesel or
gas engine that is connected to the propeller shaft through an
electric motor and a clutching system. The parallel hybrid-electric
configuration allows the engine to drive the propeller directly
and charge the batteries while the electric motor is inactive.
With the flip of a switch, the vessel can switch to exclusively
power the electric motor with batteries for situations when the
engine would be inefficient.
Hybrid
Electric Parallel Serial
Elco's EP hybrid-electric parallel and serial system benefits
commercial and pleasure vessels. Tugboats employed by harbor services
can use a combustion engine to get where they are needed in a
hurry. However, most of their time is spent idling or actively
maneuvering to support other vessels. In these low-speed situations,
the combustion engine can be shut down so the system can switch
to the electric motor for more efficient operation.
ELCO
EP SERIES WARRANTY:
Limited Warranty, 2 years labour, 3 years parts
|
|
|
|
|
|
| |
Questions?
Please feel free to Contact
Us about the great line of Elco Motor Yacht electric marine
propulsion systems. You can also email us directly
by email.
Return
to the Elco Electric Marine Motor Main Page...
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
~ Deep Cycle
Lithium
~ Engine Cranking
Lithium
Batteries
~ RV Lithium
Batteries
~ Marine Lithium
Batteries
~ Large Scale
Lithium-ion
Batteries
~ Solar Power
Lithium
Batteries
~ Truck Industry
Lithium
Batteries
|
~ Lithionics
Battery
NeverDie BMS
~ Dual Channel
BMS
~ State of Charge
Monitoring
Systems (SOC)
~ CANbus
Controls
~ Alternator
Controls |
~ Sailboat/ Yacht
Inboard &
Outboard Electric
motors
~ 5hp, 9.9hp, 14hp,
20hp, 30hp &
50hp
electric
outboards
~ 6hp, 12hp, 20hp,
40hp, 70hp and
100hp electric
inboards
~ Lithium-ion
and Victron
Energy
AGM
Batteries |
~ Sailboats
~ Ski Boats
~ Bass Boats
~ Sport
Cruisers
~ Offshore
Racing
Boats
~ Yachts
~ High Output
Alternators
with
External
Wakespeed
or Balmar
Voltage
Regulators |
~ Class A, B & C
Recreational
Vehicle Lithium-ion
Batteries
~ Mercedes Benz
Sprinter
Van
Lithium-ion
Batteries
~ Deep Cycle &
Engine
Cranking
Lithium-ion
Battery Systems
~ High Output
Alternators
with
External
Wakespeed
or Balmar
Voltage
Regulators
|
|
|
Elco
Motor Yachts EP20 48 Volt DC 20 horsepower electric inboard
motor for large boats, commercial vessels, sailboats and
yachts for sale across Canada in British Columbia (BC),
Alberta (AB), Saskatchewan (SK), Manitoba (MB), Ontario
(ON), Quebec (QC), New Brunswick (NB), Nova Scotia (NS),
Prince Edward Island (PEI), Newfoundland (NL), Yukon Territory
(YT), Northwest Territory (NT), Nunavit (NU), Iqaluit,
USA. USA & International Orders are also possible.
Copyright getlithium.com, Lithionics Battery and Respective
Copyright Holders 2022. All rights reserved.
|
|
 |
|
|
|
|
