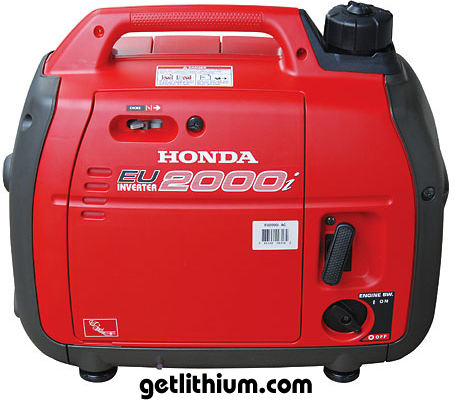

Honda
electric generators
|
|
Pinnacle
Innovations and getlithium.com
are committed to winning your Hybrid Electric Energy
Project business!
Not
all Solar Power Electrical Systems or Wind
Power Electrcity Generating Systems are capable
of producing enough electricity for your needs. Here
in Canada, our long winter nights and sometimes rainy
or snowy weather may limit your solar power generating.
Similarly, not all wind power systems have a constantly
sustainable level of wind. This is where Hybrid-Electric
Systems come in where a Diesel
Generator is added to the system. Diesel Generators
are typically categorized by the amount of electricity
they output per hour, measured in kiloWatts. 1 kiloWatt
(1kW) = 1,000 watts.
We have a list of Diesel Generators
that we offer below...
Only
interested in "DC Diesel Generators"? Visit
our Polar Power Diesel DC Generator main page...
The
Diesel Generator bridges the gap between your electricity
needs and the available electricity through your renewable
electricity generating system.
The
typical goal is to minimize overall system cost and
minimize both the number of operating cycles the generator
runs, as well as the length of time that the generator
runs for. Whenever we develop an off-grid system for
our Clients, we always take a total system approach.
We analyze the electricity needs and loads, how frequently
they reach peak electrical loads and determine if the
Client needs to build a system that will handle the
extreme loads or something less. We also look at other
factors - such as depth of discharge of the lithium
ion batteries which affects generator running time as
well as battery life. Our role is to maximize all the
needs of our Clients at the minimum cost.
Whether you need diesel generators or lithium ion electrical
storage batteries for your Solar Power Electrical
System, Wind Power Electrcity Generating System
or Canadian Oilfield Electricity Generating Station
for Pipeline Pumps, Lights etc. - we can help provide
you a complete system or just the components that you
need.
Be
sure to ask us about the benefits of DC Alternator Charging!
We now offer the full line of Polar Power DC generators
(shown below) and we can provide you with all the
components needed to reap the huge benefits of DC Alternators.
The main advantage is far faster / far higher charging
efficiency which translates to huge increases in lithium
battery charging efficiency. Fuel
savings are another added benefit of the Polar DC direct
generators. We can set you up with the DC Alternators
and DC direct Inverter Converters. Send us an email
to learn more:
siteinfo@shaw.ca
|
Links
to our Solar and Off-Grid Energy Project pages:
|
|
|
|
|
|
|
|
|
|
|
|
|
POLAR
POWER DC OFF-GRID/ BACKUP/ MARINE GENERATORS
|
Why
choose Polar Power DC Diesel Generators?
Efficiency, durability and superb engineering/
manufacturing is the answer.
A
few good reasons to go with a Polar DC Generator
for Off-Grid/ Grid-tie Clean Energy Projects:
-
Fuel savings up to 70% are realized when a
Polar DC generator 10 kW -15 kW replaces a
20 kVA - 40 kVA AC generator.
- Basically,
a 10kw DC replaces a 15-25kw AC generator.
-
A 15kw DC can replace a 30-50kw AC generator.
- Larger
AC generators are used in applications powering
smaller loads because the larger AC generators
are built more robust than smaller standby
AC generators.
- AC
generators need to be over-sized to handle
surge/start up currents from the load.
- Polar
DC Generators do not need to be oversized
as the outputs are both current and voltage
regulated.
- Polar's
small DC Generators are built to handle both
Backup and Prime power applications.
- There
is no need for excess battery strings on site,
or an ATS. This keeps install costs down,
as well as battery replacement costs from
both the starter battery side as well as the
onsite reserve batteries.
-
Reducing the onsite battery strings, also
allows you to reduce the number of rectifiers
required, an additional cost savings.
- No
lead acid starter battery, thus no replacement
costs for. We
use a small supercapacitor that is designed
for 15-20 years.
-
Smaller footprint and lighter weight is ideal
for Rooftop Applications. In most cases can
be delivered to the roof via the service elevator,
in return saving on installation costs.
- For
Backup Power/ Off-grid Power Diesel and Propane/
Natural Gas Generators check down the page...
Only
interested in "DC Diesel Generators"?
Visit
our Polar Power Diesel DC Generator main page
for more information as well as Pinnacle
Innovations/ getlithium.com's Polar Power Generator
Consultation Service...
|
|
Polar
Power DC diesel generator with
3kW to 5kW output
|
Polar
Power DC diesel generator with
13kW to 20kW output
|
|
|
|
|
Polar
Power DC diesel generator with
4kW to 8kW output
|
Polar
Power DC diesel generator with
9kW to 14kW output
|
|
|
|
|
|
Polar Power DC Generators are fully automated fuel
powered battery chargers. The Generator is supplied
complete with the necessary microprocessor-based controls
and software allowing the Generator to sense the battery
state of charge and automatically start and stop.
NOTE: The maximum Amp output of the Polar Power
DC Marine Generators is 360 Amps.
|
POLAR
POWER DC MARINE GENERATORS
- CONFIGURABLE FROM 12 VOLTS TO 550 VOLTS DC
- PRICES AND MODELS SUBJECT TO CHANGE*
|
PART
NUMBER
|
DESCRIPTION
|
PRICE
USD*
|
KW
RANGE
|
|
8080VP-13
|
VOLVO
PENTA D1-13 ENGINE - 8080 ALTERNATOR
|
$16,295.00*
|
3
-
5 kW
|
|
8080VP-20
|
VOLVO
PENTA D1-20 ENGINE -
8080 ALTERNATOR
|
$17,595.00*
|
4
-
8
kW
|
|
8220VP-20
|
VOLVO
PENTA D1-20 ENGINE -
8220 ALTERNATOR
|
$18,575.00*
|
5
-
9
kW
|
|
8220VP-30
|
VOLVO
PENTA D1-30 ENGINE -
8220 ALTERNATOR
|
$20,175.00*
|
9
-
14
kW
|
|
8220VP-40
|
VOLVO
PENTA D2-40 ENGINE -
8220 ALTERNATOR
|
$20,910.00*
|
13
-
18
kW
|
|
8340VP-40
|
VOLVO
PENTA D2-40 ENGINE -
8340 ALTERNATOR
|
$24,565.00*
|
13
-
20
kW
|
|
|
PERKINS
404D-22 ENGINE -
8340 ALTERNATOR
Details
link... (not suitable for marine)
|
Call*
|
18
- 26
kW
|
|
8340VP-55
|
VOLVO
PENTA D2-55 ENGINE -
8340 ALTERNATOR
Great for electric marine propulsion.
|
$28,969.00*
|
16
-
26
kW
|
|
3TNV88-DBSA
|
Yanmar
Marine 3TNV88 or Yanmar Industrial
3TNV88 diesel engine (marinized by Polar) coupled
to the Polar Power 8340 alternator. A great solution
for 48 Volt to 160 Volt hybrid-electric marine
propulsion projects.
NOTE: The Yanmar Industrial 3TNV88 diesel
engine is the lower cost, more efficient and quieter
option.
|
Call*
|
20
kW
Yanmar
Industrial 3TNV88 Diesel Engine PDF:
|
| ACCESSORIES: |
|
88-25-0500
|
SOFT
ENCLOSURE. Reduces noise levels but complicates
maintenance.
|
From
$1,990.00*
|
|
|
00-10-0008
|
DC
TO DC CONVERTER
|
$250.00*
|
|
|
20-27-0002
|
ELECTRIC
FUEL PUMP
|
$165.00*
|
|
|
84-28-0002
|
24
VOLT to 12 VOLT SUPER CAPACITOR STARTING KIT
|
$1,080.00*
|
|
|
84-28-0001
|
48
VOLT to 12 VOLT SUPER CAPACITOR STARTING KIT
|
$950.00*
|
|
|
08-13-0039
|
BATTERY
AND LOAD MONITORING ASSEMBLY
|
$225.00
TO $355.00*
|
|
| 24
Volt Kit |
24
VOLT GENERATOR STARTER AND SMALL ALTERNATOR CONVERSION
KIT. INCLUDES STARTER, BALMAR ALTERNATOR AND EXTERNAL
VOLTAGE REGULATOR, GLOW PLUGS, DIFFERENT BELT
AND PULLEYS AND SOME ADDITIONAL MOUNTING COMPONENTS.
Recommended for use when no 12 Volt battery system
is present on the project but there are one or
more 24 Volt battery banks in place.
|
$2,795.00*
|
|
OPTIONS:
|
Remote
Communication Options:
|
|
1.
|
RS232
|
|
|
|
2.
|
CAN
bus
|
|
|
|
3.
|
SNMP
|
|
|
|
4.
|
Ethernet
|
|
|
Automatic
Control Options:
|
|
1.
|
Battery
monitoring and temperature compensation
|
|
|
|
2.
|
Fuel level monitoring
|
|
|
|
3.
|
Remote
operator panel
|
|
|
Grounding:
|
|
1.
|
Tie
negative ground to engine
|
|
|
|
2.
|
Isolated
engine ground system
|
|
|
Will
you be using engine waste heat for:
|
|
1.
|
Potable
water
|
|
|
|
2.
|
Space heating
|
|
|
|
3.
|
No
waste heat recovery
|
|
|
Additional
Information to Provide us Information On:
|
Timescale
when generators are needed:
Number of generators to be installed on vessel:
Ambient temperature range:
Unusual generator conditions include:
Desired run hours between service calls:
Total number of run hours per year:
Vessel length and: Multi-hull, Mono-hull, Sailing,
Power
Generator Specs:
DC Voltage Range (required)
Output Curent
Load Current
Total energy consumption kWh/ day: (required)
Desired Decibel Noise Level:
|
Notes:
 Polar
Power DC generators typically come equipped
with the following equipment:
-
Marinized
Engine (water/glycol in the engine block coupled
with a Cupro-Nickel seawater heat exchanger),
-
8000
Series Alternator,
-
12
Volt DC engine starter with a secondary 12
Volt output Alternator (smaller than the main
generator Alternator) for recharging the starting
battery and other 12 Volt batteries (we can
also provide a 24 Volt starter and secondary
24 Volt Alternator at additional cost),
-
Wiring
harness,
-
Supra
Automatic Charging Control System.
Note: Polar Generators and the Supra
Control System are CANbus controlled and generally
third party devices are not allowed to control
generation operation. When the generator is
used with lithium-ion batteries equipped with
a BMS that has a Generator Auto-Start Function,
you can use the the Polar e-stop for emergency
shut-off from the BMS signal, or you can disconnect
power to the Polar generator electronic fuel
pump, or you can control the generator through
CAN protocol from the BMS. If none of these
options are possible, we would set the generator
to Auto mode, but the main thing to keep in
mind is that you cannot let the BMS disconnect
the battery while the generator is running.
-
Remote
Display and Control for the Operator
-
Air
Filter
-
Captive
Vibration Mounts and Mounting Frame
Polar
offers their DC generators with 2 "Speed"
options that relate to the
kW ratings above:
"Slow Speed" - this means the
generator is set to run in the 1,600 to
1,900 RPM range.
Customers
choose this option when they want bigger fuel
savings, less noise
and almost double the life expectancy of the
generator. The Slow Speed
option also means less frequent oil and filter
changes.
"High Speed" - this means the
generator is set to run in the 2,500 to
3,000 RPM range.
Customers
choose this option when they need more power
and/ or faster
battery bank charging.
If the alternator winding permits it, Polar
can program the DC generator
to run in the 1,900 to 2,400 RPM range that
bridges the gap between the
kW output of the
Slow
Speed versus High Speed option.
Although the Polar Power DC Generators can be
configured to a wide variety
of Voltages, the main big alternator is typically
limited to to 375 Amps
of DC current output or less. For projects
requiring more than 375 Amps
we often need to couple two generators in the
system.
*We offer a 2.25% discount for payment by cheque,
Interac or Bank Transfer.
All
prices are subject to change without notice.
|
Polar
Power DC diesel generators can output from 12 Volts
to 550 Volts DC. To accomplish this Polar has a variety
of alternator windings and models to choose from. This
also gives Polar generators the ability to offer specific
Voltage ranges at different engine speeds. The higher
the Volatge that you decide on the greater will be your
choice for engine speeds. Higher Voltages are beneficial
to reduce the need for higher currents.
For
more information on Polar Power DC Generators or to
order,
just give us a Call at 604-510-0800 or Email Us at:
siteinfo@shaw.ca
DIESEL
GENERATORS
FOR HYBRID ELECTRIC SYSTEMS
|
|
Diesel
Generator Image/
Pricing
|
|
|
|
|
Hybrid
Generator Honda EU1000i
(1kW)
Honda's
inverter technology means stable, clean power
in a smaller, lighter package.
The
precision of Honda's inverter technology ensures
that these generators produce power that is
as reliable as the power you get from your outlets
at home. They are super quiet and fuel efficient
due to the Eco-Throttle System.
Click
here for a larger image...
|
|
$1,196.00
(USD)*
|
|
|
|
|
Hybrid
Generator Honda EU2000i
(2kW)
Honda's
inverter technology means stable, clean power
in a smaller, lighter package.
The
precision of Honda's inverter technology ensures
that these generators produce power that is
as reliable as the power you get from your outlets
at home. They are super quiet and fuel efficient
due to the Eco-Throttle System.
Click
here for a larger image...
|
|
$1,439.00
(USD)*
|
|
|
|
|
Hybrid Generator

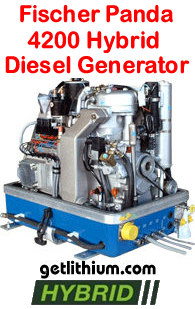

Fischer Panda PMS 4200 Plus
(3.8kW)
Fischer
Panda manufactures the only genuine 100% fresh
water-cooled asynchronous generator for use
in a military, marine or vehicle application.
Their proprietary technology allows them to
build the smallest, lightest and quietest generators
in the world. If noise level, size and weight
are issues, a Fischer Panda generator might
be the right choice.
Click
here for a larger image...
|
|
$11,425.00
(USD)*
|
|
|
|
|
Hybrid Generator

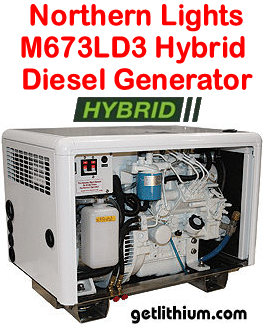

Northern Lights M673D3
(5kW)
Northern
Lights marine generators are powered by rugged
and proven Lugger diesels. These generators
provide unmatched quality and reliability. High
copper content within the brushless generator
end enables motor starting. Maintenance is quick
and easy. Most service points are arranged on
a common side to put regular maintenance points
at your fingertips.
Click
here for a larger image...
|
|
$12,769.00
(USD)*
|
Be sure to ask us about the
benefits of DC Alternator Charging! We
can provide you with all the components needed to
reap the huge benefits of DC Alternators. The main
advantage is far faster charging which translates
to huge increases in lithium battery charging efficiency.
We
can set you up with the DC Alternators and DC direct
Inverter Converters. Send us an email to learn more:
siteinfo@shaw.ca
|
Hybrid
Generator
Fischer Panda PMS 6500
(5.5kW)
Fischer
Panda manufactures the only genuine 100% fresh
water-cooled asynchronous generator for use
in a military, marine or vehicle application.
Their proprietary technology allows them to
build the smallest, lightest and quietest generators
in the world. If noise level, size and weight
are issues, a Fischer Panda generator might
be the right choice.
Click
here for a larger image...
|
|
$12,895.90
(USD)*
|
|
|
|
|
Hybrid Generator
Fischer Panda PMS 08 DP
(6.8kW)
Fischer
Panda manufactures the only genuine 100% fresh
water-cooled asynchronous generator for use
in a military, marine or vehicle application.
Their proprietary technology allows them to
build the smallest, lightest and quietest generators
in the world. If noise level, size and weight
are issues, a Fischer Panda generator might
be the right choice.
Click
here for a larger image...
|
|
$15,090.00
(USD)*
|
|
|
|
|
Hybrid Generator

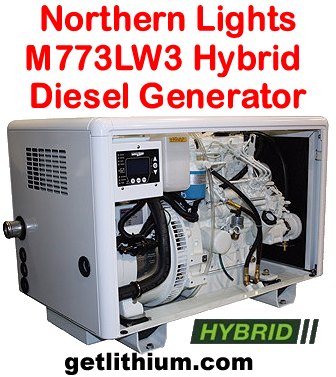

Northern Lights M773LW3
(9kW)
Northern
Lights marine generators are powered by rugged
and proven Lugger diesels. These generators
provide unmatched quality and reliability. High
copper content within the brushless generator
end enables motor starting. Maintenance is quick
and easy. Most service points are arranged on
a common side to put regular maintenance points
at your fingertips.
Click
here for a larger image...
|
|
$16,589.60
USD*
|
|
|
|
|
Hybrid Generator

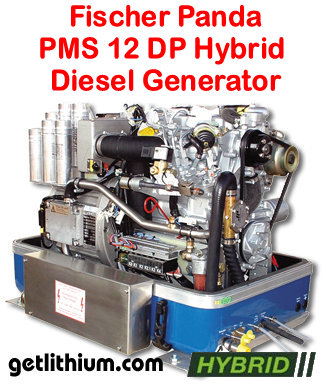

Fischer Panda PMS 12 DP
(10.4kW)
Fischer
Panda manufactures the only genuine 100% fresh
water-cooled asynchronous generator for use
in a military, marine or vehicle application.
Their proprietary technology allows them to
build the smallest, lightest and quietest generators
in the world. If noise level, size and weight
are issues, a Fischer Panda generator might
be the right choice.
Click
here for a larger image...
|
|
$17,884.60
(USD)*
|
|
|
|
|
Hybrid Generator

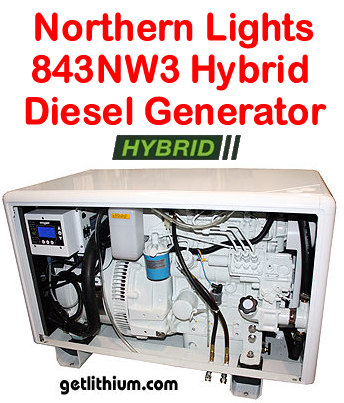

Northern Lights 843NW3
(12kW)
Northern
Lights marine generators are powered by rugged
and proven Lugger diesels. These generators
provide unmatched quality and reliability. High
copper content within the brushless generator
end enables motor starting. Maintenance is quick
and easy. Most service points are arranged on
a common side to put regular maintenance points
at your fingertips.
Click
here for a larger image...
|
|
$18,589.60
(USD)*
|
|
|
|
|
Hybrid Generator
Fischer Panda PMS 15 DP
(14.1kW)
Fischer
Panda manufactures the only genuine 100% fresh
water-cooled asynchronous generator for use
in a military, marine or vehicle application.
Their proprietary technology allows them to
build the smallest, lightest and quietest generators
in the world. If noise level, size and weight
are issues, a Fischer Panda generator might
be the right choice.
Click
here for a larger image...
|
|
$19,856.00
(USD)*
|
|
|
|
|
Hybrid Generator

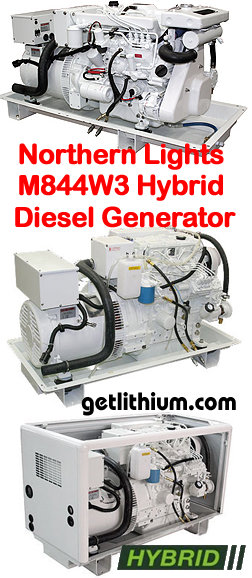

Northern Lights Northern Lights M844W3
(16kW)
Northern
Lights marine generators are powered by rugged
and proven Lugger diesels. These generators
provide unmatched quality and reliability. High
copper content within the brushless generator
end enables motor starting. Maintenance is quick
and easy. Most service points are arranged on
a common side to put regular maintenance points
at your fingertips.
Click
here for a larger image...
|
|
$20,992.60
(USD)*
|
|
|
|
|
Hybrid
Generator
Northern Lights Northern Lights M844LW3
(20kW)
Northern
Lights marine generators are powered by rugged
and proven Lugger diesels. These generators
provide unmatched quality and reliability. High
copper content within the brushless generator
end enables motor starting. Maintenance is quick
and easy. Most service points are arranged on
a common side to put regular maintenance points
at your fingertips.
Click
here for a larger image...
|
|
$23,193.00
(USD)*
|
|
|
|
|
Hybrid Generator
Northern Lights Northern Lights M864W3
(25kW)
Northern
Lights marine generators are powered by rugged
and proven Lugger diesels. These generators
provide unmatched quality and reliability. High
copper content within the brushless generator
end enables motor starting. Maintenance is quick
and easy. Most service points are arranged on
a common side to put regular maintenance points
at your fingertips.
Click
here for a larger image...
|
|
$27,362.20
(USD)*
|
|
|
|
|
Hybrid
Generator
Northern Lights Northern Lights M944W3
(30kW)
Northern
Lights marine generators are powered by rugged
and proven Lugger diesels. These generators
provide unmatched quality and reliability. High
copper content within the brushless generator
end enables motor starting. Maintenance is quick
and easy. Most service points are arranged on
a common side to put regular maintenance points
at your fingertips.
Click
here for a larger image...
|
|
$28,682.60
(USD)*
|
|
|
For
more information, feel free to browse this page and
the links to other relevant documents (see
below) and pages or
just give us a Call at 604-510-0800 or Email Us at: siteinfo@shaw.ca
|
|
|
|
OFF-GRID/
BACKUP GENERATORS
We
also offer a good selection of both AC and DC generators
by Northern Lights and Polar Power for Off-grid/ Grid-tie,
Backup Power and Industrial Applications. These are in
use with great success in areas such as Alaska/ Northern
Canada and can be operated in extreme temperature climates.
Below are just a few of the generators available.
|
|
Generator
Model
|
Graphic
|
|
Northern

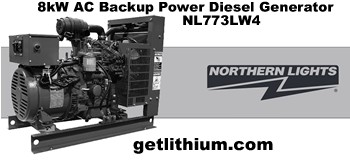

Lights NL733LW4 8kW AC Diesel Generator
Perfect
for Residential Homes or small Commercial Projects requiring
backup power.
DC
ELECTRICAL SYSTEM
-
12 volt system includes starter motor, battery charging
alternator with solid state voltage regulator and DC
circuit breaker.
-
Standard, unit mount S-1B control panel has engine hour
meter, start-stop switch with run light and preheat
switch.
- Standard
safety shutdowns for low oil pressure and high coolant
temperature.
- Dual
panel relays and quick disconnect harness plug-ins.
With optional Y-harness and 10, 20 or 40 foot harness
extensions, allows up to six remote control panels,
up to 100 feet from the set.
AC
GENERATOR
-
Northern Lights, direct coupled, brushless AC generator
is maintenance free. 4 lead, 1 phase, 1.0 pf, 50 or
60 Hz output. 12 lead-3 phase is optional. Conservative
heat rise rating: 95C/50C ambient.
- Automatic
Voltage Regulator is powered by dedicated AC winding
for true 300% short circuit capability. Quick +/-1%
RMS no load to full load voltage regulation. AVR has
circuit breaker protection.
- Generator
features high quality, Class "H" epoxy insulation,
accessible diodes, over-sized bearing and junction box
for wiring.
- High
airflow from integral fan keeps generator running cool.
SPECIAL
FEATURES
-
Welded steel frame provides rigid support and ease of
installation.
-
Enhanced fan guard for improved operator safety.
- Four
centerbonded mounts isolate vibration.
- Long
life, blue enamel paint finish.
- Full
load testing at factory ensures touble-free operation
- Operator's
and parts manuals provided with each set.
- Custom
shipping crate and carton.

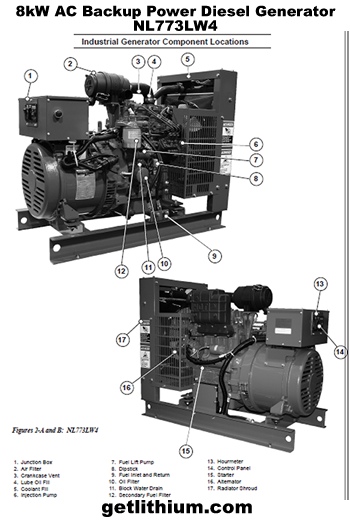

Northern
Lights NL733LW4
Data Sheet
|
Click
on the images for larger graphics:
Contact
Us For More Info:
Pinnacle Innovations
604-510-0800
or
Email
Us
|
|
|
|
Polar
Power 6 to 15kW DC Diesel Powered Generators
Founded
in 1979 Polar Power specialized in solar photovoltaic
systems, solar air conditioning and refrigeration. We
developed and provided photovoltaic charging controls
for telecommunications in the 1980s along with DC generators
for the military. In 1994 we were first to provide DC
generators with remote control and monitoring to the telecommunications
industry.
Polar's
success is based on engineering generators to meet the
very specific needs of each application. Telecom site
optimization is best met with the DC generator technology
as the loads and batteries are DC. It makes no sense to
install an AC generator and convert the output to DC.
The AC generators are designed for a wide range of applications
and they are not specifically produced for telecom applications
so there are issues with reliability, space, and fuel
efficiency. Polar can save you considerable time and cost
in permitting, installing, purchasing, and maintaining
a backup generator. We reduce CAPEX and OPEX costs while
improving backup reliability.
FEATURES:
SMALL FOOTPRINT. Polar's DC generator is considerably
smaller in size than an AC generator. You can now backup
sites that could not accommodate an AC generator. Smaller
also means less cost for space leasing.
LOW
MAINTENANCE. Due to oversized oil sump, and oil/fuel
filtration system.
LOW
ACOUSTIC NOISE. <62 dBA at 7 meters for diesel,
and low vibration so as not to disturb the local residents
or building landlords.
LIGHTWEIGHT.
Up to 1/3 the weight of a comparable AC generator.
CORROSION
RESISTANT. All-aluminum enclosure with stainless hardware
for low maintenance, and long service life.
FUEL
EFFICIENT. Up to 85% fuel savings due to smaller engine
displacement, high efficiency alternator, and variable
speed operation.
RODENT
RESISTANT. Small animals can quickly destroy a generator
set by gnawing on wires, fuel lines, radiator hoses, etc.
Cooling air inlets and outlets have perforated aluminum
screens to keep small rodents and large insects out. Stainless
steel wire braid is placed over fuel and radiator lines
to prevent damage.
SUPERCAPACITOR
STARTER. Failure to start is the number one problem
plaguing generator reliability and typically this is caused
by a bad starting battery. Polar unique design has replaced
the starting battery with a Super Capacitor. Capacitors
are more reliable and last longer than batteries (10-15
year life).
LONG
LIFE. Controls and wire harnesses are designed to
exceed a 20 year life. Higher grade, longer life electrical
wire (UL 3173), weather tight connectors, gold plated
connector pins on signal circuits. No transfer switches
are required.
ADVANCED
MONITORING. Remote diagnostics, control, and monitoring.
Ethernet and RS232 standard, with optional SNMP.
|
Click
on the image for larger graphic:
Contact
Us For More Info:
Pinnacle Innovations
604-510-0800
or
Email
Us
|
|
|
Polar
Power 10 to 15kW DC Propane/ Natural Gas Powered Generators
Founded
in 1979 Polar Power specialized in solar photovoltaic
systems, solar air conditioning and refrigeration. We
developed and provided photovoltaic charging controls
for telecommunications in the 1980s along with DC generators
for the military. In 1994 we were first to provide DC
generators with remote control and monitoring to the
telecommunications industry.
Polar's
success is based on engineering generators to meet the
very specific needs of each application. Telecom site
optimization is best met with the DC generator technology
as the loads and batteries are DC. It makes no sense
to install an AC generator and convert the output to
DC. The AC generators are designed for a wide range
of applications and they are not specifically produced
for telecom applications so there are issues with reliability,
space, and fuel efficiency. Polar can save you considerable
time and cost in permitting, installing, purchasing,
and maintaining a backup generator. We reduce CAPEX
and OPEX costs while improving backup reliability.
FEATURES:
SMALL FOOTPRINT. Polar's DC generator is considerably
smaller in size than an AC generator. You can now backup
sites that could not accommodate an AC generator. Smaller
also means less cost for space leasing.
LOW
MAINTENANCE. Due to oversized oil sump, and oil/fuel
filtration system.
LOW
ACOUSTIC NOISE. <62 dBA at 7 meters for diesel,
and low vibration so as not to disturb the local residents
or building landlords.
LIGHTWEIGHT.
Up to 1/3 the weight of a comparable AC generator.
CORROSION
RESISTANT. All-aluminum enclosure with stainless
hardware for low maintenance, and long service life.
FUEL
EFFICIENT. Up to 85% fuel savings due to smaller
engine displacement, high efficiency alternator, and
variable speed operation.
RODENT
RESISTANT. Small animals can quickly destroy a generator
set by gnawing on wires, fuel lines, radiator hoses,
etc. Cooling air inlets and outlets have perforated
aluminum screens to keep small rodents and large insects
out. Stainless steel wire braid is placed over fuel
and radiator lines to prevent damage.
SUPERCAPACITOR
STARTER. Failure to start is the number one problem
plaguing generator reliability and typically this is
caused by a bad starting battery. Polar unique design
has replaced the starting battery with a Super Capacitor.
Capacitors are more reliable and last longer than batteries
(10-15 year life).
LONG
LIFE. Controls and wire harnesses are designed to
exceed a 20 year life. Higher grade, longer life electrical
wire (UL 3173), weather tight connectors, gold plated
connector pins on signal circuits. No transfer switches
are required.
ADVANCED
MONITORING. Remote diagnostics, control, and monitoring.
Ethernet and RS232 standard, with optional SNMP.
|
Click
on the images for a larger graphic:
Polar
Power Natural Gas powered 10kW DC generator model 9220K-972
Contact
Us For More Info:
Pinnacle Innovations
604-510-0800
or
Email
Us
|
|
|
|
|
|
|
|
|
|
MORE POWER
