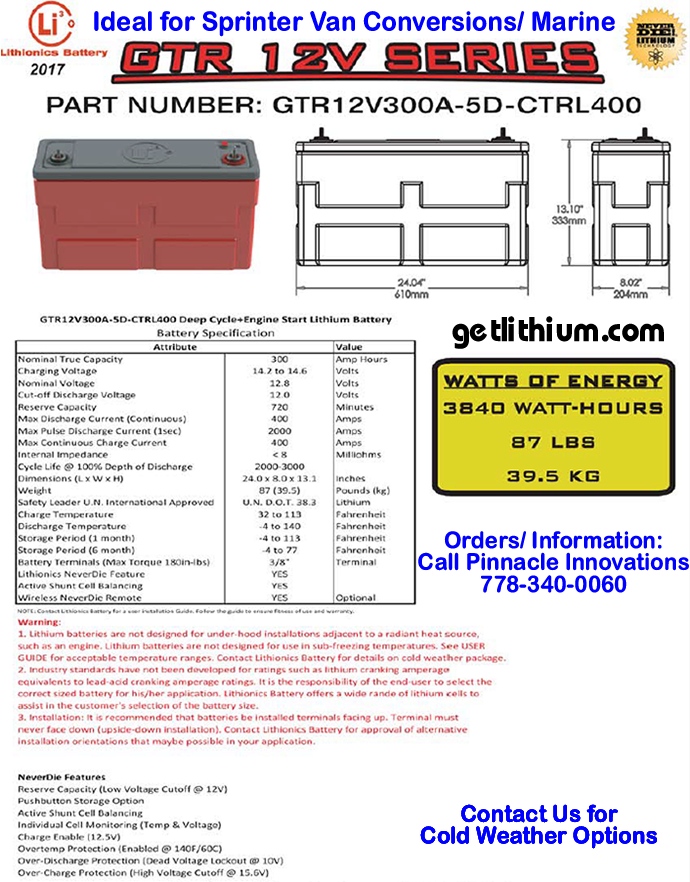

Lithionics Battery 12 Volt Lithium-ion Battery Model GTR 12V 300A
5DR-CTRL400 Amp8

This internal BMS Lithionics lithium-ion battery model has been discontinued - it is available as a battery module that uses an external NeverDie BMS box.

Comes with Standard Version 8 BMS rated at 400 Amps constant current and the 8 pin Ampseal. The Standard Version 8 internal NeverDie Battery Management System (BMS) also includes the Bluetooth State of Charge Monitoring System that works with your Smartphone. This Standard Version 8 BMS can support the non-lighted remote BMS switch option, FCC option and Canbus option but not the Lithionics SOC gauge system.

Many Mercedes/ Dodge Sprinter Van owners choose this 300 Amp hour lithium-ion battery for their van conversions. As this battery can be installed on its side, this reduces the height measurement to 8.25". Please inform us of the intended orientation of the battery before ordering.

This high performance lithium-ion battery is also available with the 400 Amp rated Advanced Version 8 internal BMS with the 23 pin Ampseal for $6,191.13 USD (includes SOC kit sending unit for the Lithionics external SOC gauge).

This Lithionics lithium-ion high performance battery is also available WITHOUT the NeverDie BMS for $4,288.49 USD. Use Part # GTR 12V300A-5D-DIN-S-Module or GTR 12V300A-5D-DIN-T-Module (comes with 1 foot DIN cable assembly). Click here for spec sheet. Available in 2 different cabling options:

The above case measures 24" x 8" x 12.8" height. Add some extra space to the length for the cabling (we can provide longer 2 gauge cable if needed).

The above case measures 24" x 8" x 12.8" height. Add some extra space to the height for the cabling (we can provide longer 2 gauge cable if needed).

Sample installation photo of 2 of these batteries installed on an RV:

A great, lightweight lithium ion battery with 300 Lithium Amp Hours Reserve Capacity, 720 Reserve Capacity (RC) minutes and 3,840 Total Watt Hours capacity. CTRL400 NeverDie means this lithium-ion battery is rated for 300 continuous Amps draw or 400 Amps peak. Recommended charge rate is 150 Amps, max. charge rate is 300 Amps.

This extremely versatile battery can be used for a wide variety of applications including Deep Cycle House Power for RV and Marine applications as well as a diesel engine cranking battery for Truck Engines and for Marine Engine Starting (including Outboard Marine Engines) on sailboats and yachts. NeverDie Battery Management System included (pushbutton reset/ shut down).

This battery is a dual-use battery: Deep Cycle Battery House Power or as a Primary Engine Starting Battery or Main Vehicle Battery. Lithionics lithium-ion batteries are the ideal solution for Solar Power Harvesting and Off-Grid Electrical Energy Storage as they harvest more energy than lead type batteries.

OPTIONS:
This battery is available with convenient carry handles for an additional $134.64 USD.
We also offer a "Cold Weather Protection System" for this battery from $311.44 USD that operates off the BMS temperature sender (requires BMS/ battery to be switched "On"). The second option also uses the internal Cryo heating system even if the BMS/ battery are turned "Off". This option costs $447.44 USD and has two 12 Volt wires coming out of the battery so the heating system can be powered by the Lithionics battery system or an external 12 Volt source such as a small DC converter/ power supply plugged into a 120 Volt AC outlet.
This is internal to the battery and protects against sub-zero temperatures
and automatically turns On/ Off as needed to keep the battery above 0 Celsius.
EXTREME CONDITIONS: We also sell a product called
"Dynaliner" that is an external thermal protective wrap with a very high K Value of 0.3.
This "Dynaliner" material is from 0.125" to 0.5" thick and non-conductive.
This option is recommended for extreme temperature situations.

PRICING:
2.25% Discount On Lithionics Battery Purchases For Wire Transfer, Cheque, Interac Bank Email Transfer (Canada Only) or Cash Payments.
Fleet Pricing, and Volume Discounts also available.
Prices may be lower for in-stock items or for multiple items ordered in a single shipment.
* All Prices Subject to Change. Shipping/ Freight is extra.

Notes:
1 Lithium Amp Hour = 2 Lead Acid Amp Hours in 12 Volt applications, 2.5 Ahr in 24 Volt applications and 3.5 Ahr in 48 Volt applications.
Lithionics Battery Charging Parameters:
For Lithionics 12 Volt lithium-ion battery systems:
Charge 14.4 Volts. Float 13.4 Volts.
High Voltage Cutoff (HVC) 14.8 Volts.
Low Voltage Battery Cut Out: 12.1 Volts
For Lithionics 24 Volt lithium-ion battery systems:
Charge 28.8 Volts. Float 26.8 Volts.
High Voltage Cutoff (HVC) 29.6 Volts.
Low Voltage Battery Cut Out: 24.2 Volts
For Lithionics 48 Volt lithium-ion battery systems:
Charge 54.0 Volts. Float 50.3 Volts.
High Voltage Cutoff (HVC) 55.5 Volts.
Low Voltage Battery Cut Out: 45.4 Volts
For Lithionics 51 Volt lithium-ion battery systems:
Charge 57.6 Volts. Float 53.6 Volts.
High Voltage Cutoff (HVC) 59.2 Volts.
Low Voltage Battery Cut Out: 48.4 Volts
Set the "Absorption Time" to 30 minutes. Lithionics Battery charging PDF
For modern, programmable 3rd party inverter/chargers etc., we recommend using "Custom Settings" and follow our Charger Instruction PDF Guide but disable "equalization".



If in doubt, please Contact Us.
Lithionics Battery offers several different types of AC and DC powered lithium-ion battery chargers that have been tested and work well with the Lithionics batteries.
Click here for details on the Lithionics Battery approved Battery Chargers...

Lithionics Battery lithium-ion batteries are 97% EFFICIENT FOR SOLAR POWER. Compare that with only 55% to 85% efficiency for other types of batteries including deep-cycle lead acid batteries. Lithionics Battery lithium-ion batteries also charge from 2 to 10+ times faster than other batteries, which gives you more use out of your lithium-ion battery. Visit our Solar Power page...

We also offer a great selection of solar panels suitable for RV's, yachts and sailboats of all sizes - including durable flexible solar panels that can be walked on.

Battery Meters/ State-of-Charge Meters and Gauges are also available at additional cost. For multiple battery systems, our Neverdie Control Box may also be required.
