LITHIONICS BATTERIES AND ELECTRICAL SYSTEM UPGRADE INSTALLATIONS PAGE 11:
ONE OF THE LITHIUM-ION BATTERY SYSTEM PROJECTS PINNACLE INNOVATIONS HAS COMPLETED

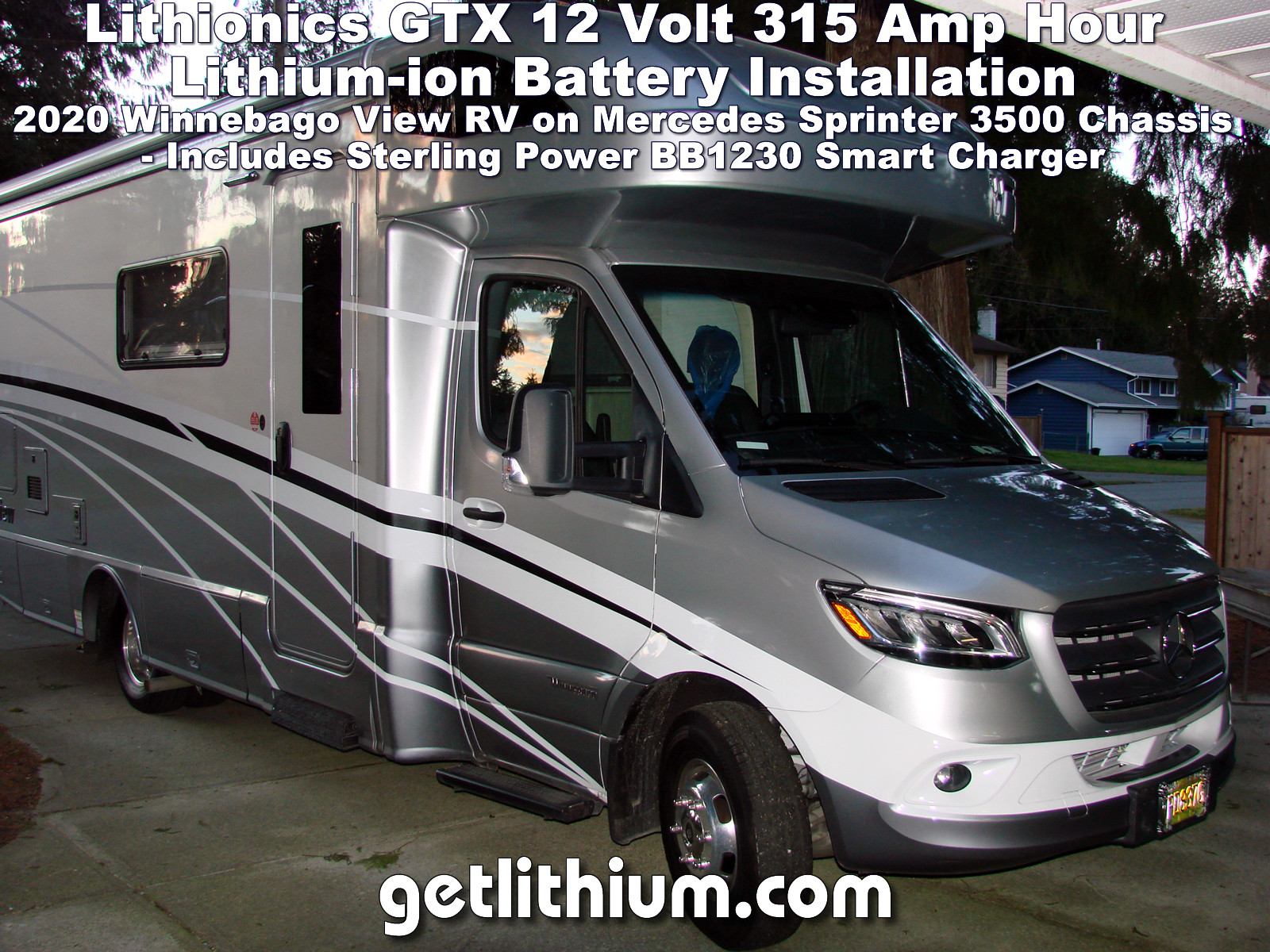

2020 WINNEBAGO VIEW 24D RV 315 AMP HOUR GTX BATTERY AND STERLING CHARGER UPGRADE MARCH 2021

The Mercedes Benz 3500 Sprinter van chassis is both popular as a base chassis for RV manufacturers as well as "Do-it-Yourselfers". The Lithionics Battery lithium-ion house battery upgrade is relatively simple in that we do not need to cut into/ tap into any of the OEM Mercedes wiring and by adding/ connecting a Sterling Power BB1230 12 Volt DC to 12 Volt DC battery to battery charger with 30 Amps output, we do not void the Mercedes OEM alternator warranty. On the 3500, it is often equipped with a 220 Amp alternator but Mercedes only wants secondary battery systems to use up to 40 of those Amps or else you run the risk of burning out the alternator. The Sterling Charger needs two 8 or 10 AWG tinned copper marine power wires (check cable charts for length of your cables and the required cable size) run from the engine start battery (with a 50 Amp inline fuse) to wherever the charger is located.

Click here to see the companion page with a List of the parts used and their pricing...

The above photo is a top view looking down. You can see the white box in the lower right labelled Sterling BB1230. This is the 30 Amp Sterling Smart Charger which has been custom programmed using the "Custom" setting on the charger. In very hot/ southern areas we may choose to mount this charger under the RV in a waterproof enclosure to prevent excess heat buildup in the now sealed and inulated battery compartment. Otherwise we can use two black plastic round louvered duct air vents on the vertical part of the step.

Notes:
1. The Lithionics battery takes up less space and weighs about 1/2 the original 2 battery weight.
2. Like with many refits, the space becomes tight with the addition of the sheet metal, insulation and Sterling Charger. The OEM inverter cables are not long enough as is the DC power cable. As such we don't really have the luxury of laying cables out nicely as we'd like - its more a case of you have to work with what you can fit.

The image above shows the originally installed AGM batteries - as well as the signs of water/ mud getting in the compartment. Click on the images to see bigger pics...
This image shows the new sheet metal installed to close off the Winnebago's battery compartment around the bottom.	This image shows the new sheet metal installed from the bottom side	This image shows the new 1/2" thick Dynaliner peel and stick high K value thermal insulation installed to insulate the Winnebago's battery compartment around the bottom and sides.

Read more about this Lithionics lithium-ion battery installation and view the complete RV installation with a sample pricing quote...

Shown on this page are Lithionics Battery Lithium ion Battery Installations on a 2020 Winnebago View 24D Recreational Vehicle. Pinnacle Innovations/ getlithium.com are happy to provide Lithionics Battery Lithium-ion Battery Installations in your RV, Sailboat or Yacht for Clients all across the USA and Canada including British Columbia (BC), Alberta (AB), Saskatchewan (SK), Manitoba (MB), Ontario (ON), Quebec (QC), New Brunswick (NB), Nova Scotia (NS), Prince Edward Island (PEI), Newfoundland (NL), Yukon Territory (YT), Northwest Territory (NT), Nunavit (NU) and Iqaluit.
