Lithium-ion Battery Installations Page 6: One of the Lithionics Battery Lithium-ion Battery projects we have completed for this Elco EP30 electric outboard Marine project.

Get Lithium.com offers all the Lithionics Battery deep cycle, house power and engine starting lithium-ion batteries for recreational vehicles, sailboats, yachts, buses and campers, Marine, backup or emergency power, solar power generation plus Elco Electric Boat Motors, solar power products, Polar Power DC generators, high power inverter-chargers and alternators and more

High Performance, Powerful, Lightweight, Long-Lasting Premium
Lithionics Battery Lithium-Ion Battery RV & Marine Installations


Introduction Page \| 1 \| 2 \| 3 \| 4 \| 5 \| 6 \| 7 \| 8 \| 9 \| 10 \| 11 \| 12 \| 13 LITHIONICS BATTERIES AND ELECTRICAL SYSTEM UPGRADE INSTALLATIONS PAGE 6: ONE OF THE LITHIUM-ION BATTERY SYSTEM MARINE PROJECTS PINNACLE INNOVATIONS HAS COMPLETED

2022 ELCO EP30 102.4 VOLT DC ELECTRIC OUTBOARD MOTOR/ LITHIONICS BATTERY SYSTEM BOAT PROJECT.

This electric marine project was for a small aluminum boat on the Sunshine Coast. Here, the Client wanted Pinnacle Innovations to coordinate several aspects of the project including supplying the Elco EP30 30 hoprsepower electric outboard motor, a 150 Amp hour 102.4 Volt Lithionics Battery, fabricating a custom designed aluminum battery box, ordering in a specially made custom steering console and other aspects.

We also provided the high performance Lithionics Battery lithium-ion battery system using two 75 Amp hour 102.4 Volt GT Series lithium-ion battery modules.

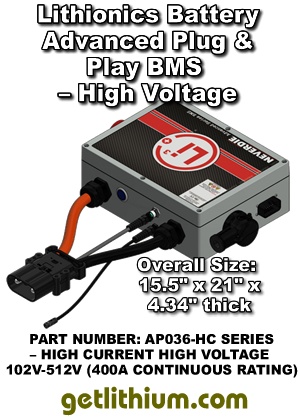

These connect using a parallel connect harness to the Advanced 102.4 Volt high Amp external Lithionics NeverDie Battery Management System Box.

Shown in the opening picture is the custom battery box that we designed and made that safely and securely holds these very expensive batteries. You can see the 1" wide aluminum "feet" that will actually be welded to the floor of the aluminum boat to make sure that nobody can abscond with the batteries. Also featured is a locking removal top lid with gasket with stainless steel custom clasps.

Here is the model of Elco motor used on this boat.

Shown below are some of the photos showing the custom features of the Lithionics battery box:

Picture showing the empty box with gasketed lid	On this project we made several drawings for the Client	The bare battery box after TIG welding.
The bare battery box after TIG welding showing custom stainless hardware.	The bare battery box after MIG welding of threaded base plates that will hold the battery hold-down rods.	The bare battery box with custom battery lifting plates shown. Due to the tight fit and heavy weight of the batteries we had to make sure that we designed the system so that should the batteries ever be needed to be removed for service that this would be easy.
The bare battery box during MIG welding of threaded base plates that will hold the battery hold-down rods.	Custom battery lifting mechanisms shown with Lithionics batteries installed.	A second view of the custom battery lifting mechanisms shown.
A third view of the custom battery lifting mechanisms shown.	Test fitting the batteries and lifting devices.	Prior to fabrication, we did some mockups to determine what size the box had to be and how things like the BMS could fit inside the battery box.
Prior to fabrication, we did some plywood mockups to determine what size the box had to be and how things like the BMS could fit inside the battery box.	Part of the fabrication process - lots of drilling and tapping.	Part of the fabrication process - more drilling and tapping.
We also supplied the required 150 Volt DC rated 400 Amp DC disconnect switches for this project.	Under view of the top aluminum lid that will waterproof the box.
The following is one of the fabrication diagrams that was used on this Marine project:

Pinnacle Innovations/ getlithium.com Installation Warranty is a full 3 Years on Parts and Installation Materials (consumables like fuses/ circuit breakers excluded)

View More Lithium-ion Battery RV and Marine Installations:
