LITHIONICS BATTERIES AND ELECTRICAL SYSTEM UPGRADE INSTALLATIONS PAGE 4:
ONE OF THE LITHIUM-ION BATTERY SYSTEM RV PROJECTS PINNACLE INNOVATIONS HAS COMPLETED

2016 WINNEBAGO ITASCA ON A 2015 MERCEDES SPRINTER VAN CHASSIS RV LITHIONICS BATTERY SYSTEM UPGRADE

This was a fun project that Pinnacle Innovations completed in 2022. Even though this is not a super large RV, the Owner's use of the RV is mostly off-grid and as they wanted the ability to be able to run the roof-top air conditioner through the night, they decided to opt for two units of the Lithionics Battery GTX Series 12 Volt lithium-ion internal NeverDie Battery Management System batteries. Each battery has 320 "total" Amp hours of capacity - of which up to 90% or 288 Amp hours are "usable". This is a great deal of energy and with two of these batteries and a combined 576 usable Amp hour capacity, most RV Owners will get anywhere from 6 to 8 or even 9 hours of run time on air conditioners up to 15,000 BTU. Pinnacle Innovations/ getlithium.com never "cut corners" on our installations and only/ always use the highest quality North American made tinned copper marine rated installation wire cable, connectors, fuse assemblies, bus bars, control switches etc. to ensure that our valued Clients have an enjoyable/ trouble-free system years down the road. Safety, quality and performance are all priority #1! Feel free to browse through the images below. If you'd like a no-pressure quote for your RV or Marine project just get in touch with us through our Contact Us page.

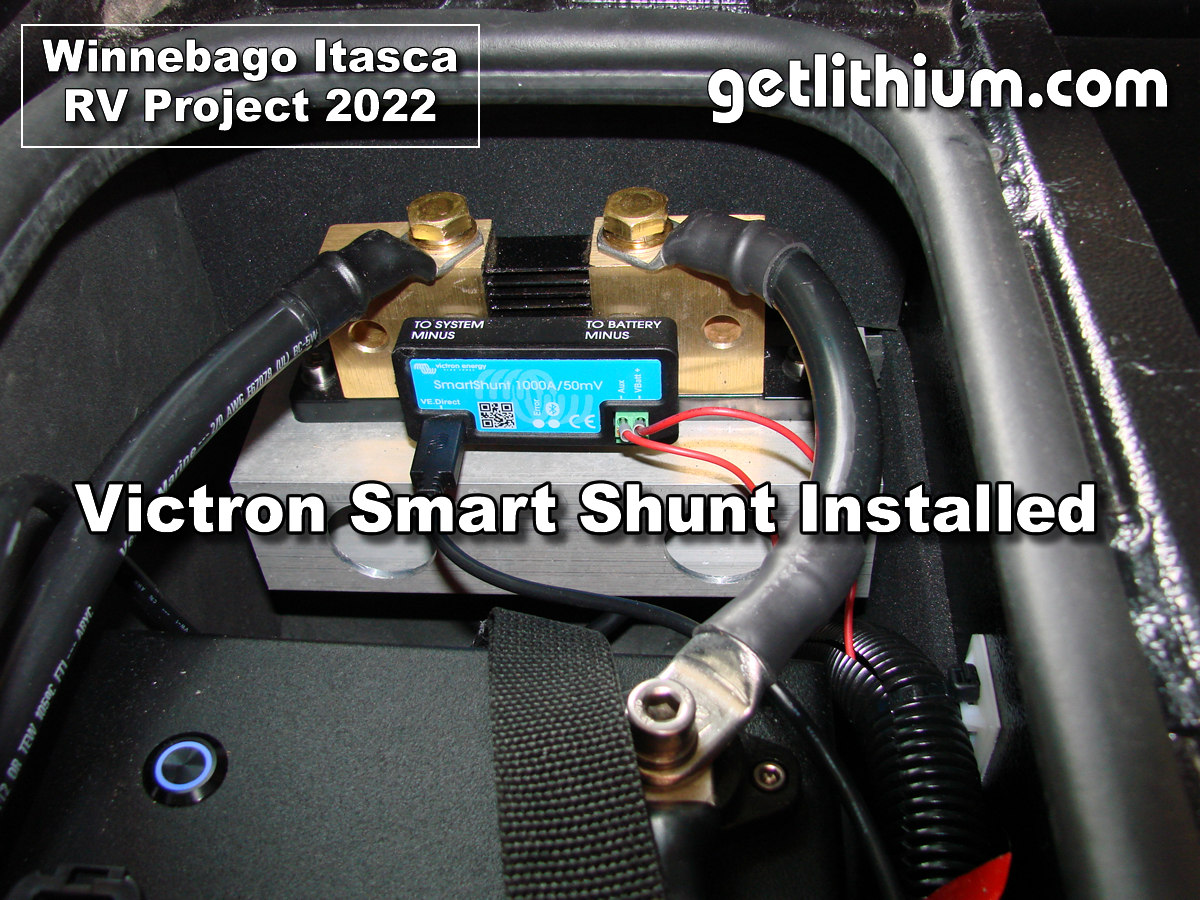

The old/ inefficient/ low capacity original batteries. The Lithionics GTX Series battery model: GTX 12V320A-E2107-CS200 Some of the Victron Energy components that we also installed. This project opted for an upgrade to the great Xantrex Freedom XC Pro 3,000 Watt inverter-charger. We rewire the 120 Volt system as a part of this sytem upgrade so that everything - including the air conditioner can run off-grid on battery power alone (as well as still being able to run on Shore Power and Generator Power) Here, we are installing the Victron SOC gauge's negative ground shunt. On this project we installed two units of the 30 Amp output Victron Orion DC to DC Smart programmable battery chargers that provide isolated and optimal battery charging via the engine alternator. The following is the Lithionics Battery Warranty Approved Master Wiring Diagram that was used on this RV project: Link to the GTX Series 12 Volt 320 Amp hour battery model shown in this diagram... Please note: Internal BMS batteries are not approved for use on any Marine projects.

Pinnacle Innovations/ getlithium.com Installation Warranty is a full 3 Years on Parts and Installation Materials (consumables like fuses/ circuit breakers excluded)
